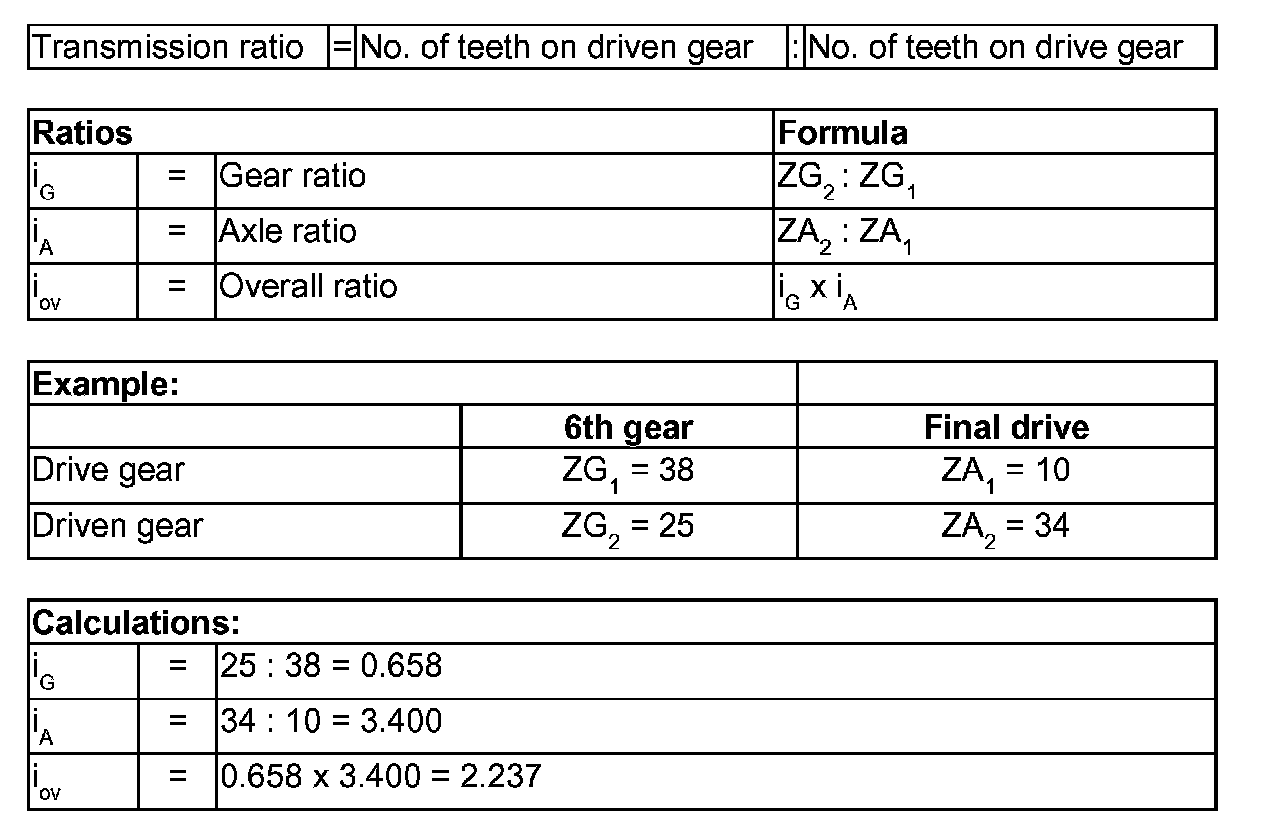

Calculating Ratio "i"



Calculating ratio "i", 02X, 6-Speed Four-Wheel Drive M/T

Transmission ratio
