Clutch Mechanism, Servicing

Clutch mechanism, servicing, 02X, 6-Speed Four-Wheel Drive M/T

CAUTION!
^ Follow steps required when disconnecting battery.

Note:
^ Lubricate all bearings and contact surfaces with polycarbamide grease G052142A2.
^ Before working on pedal cluster, remove storage compartment on drivers side.
^ Make sure that no brake fluid escapes into the footwell, the plenum chamber or onto the transmission below. If this does happen, clean the affected area thoroughly.
^ When performing work in the footwell, put cloths on the carpet to protect it from possible brake fluid spills.

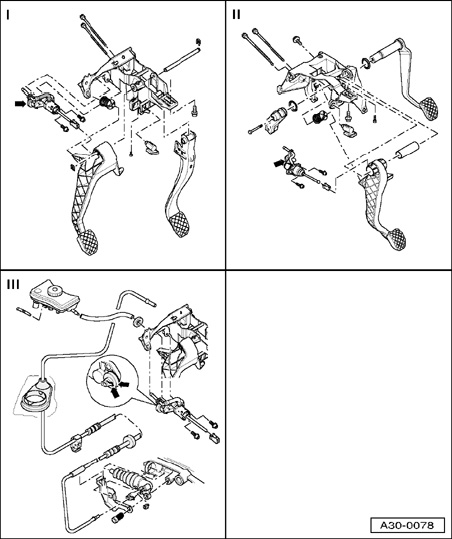

I - Pedal cluster (LHD vehicles), assembly overview

III - Hydraulics, assembly overview
