Main Fuse, Connector Stations, Relay/Fuse Panels



Main Fuse, Connector Stations, Relay/Fuse Panels (Part 1):




Main Fuse, Connector Stations, Relay/Fuse Panels (Part 2):






Connector Stations

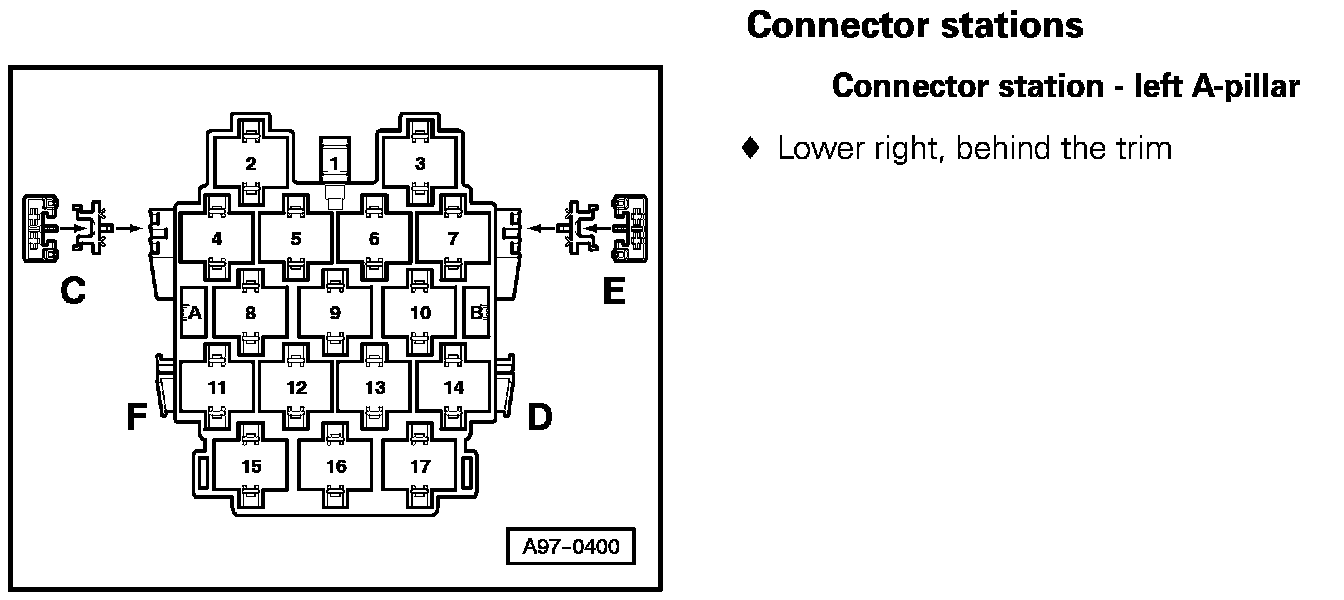

Connector station - left A-pillar


Connector Station - Left A-pillar:




Fuse Colors:




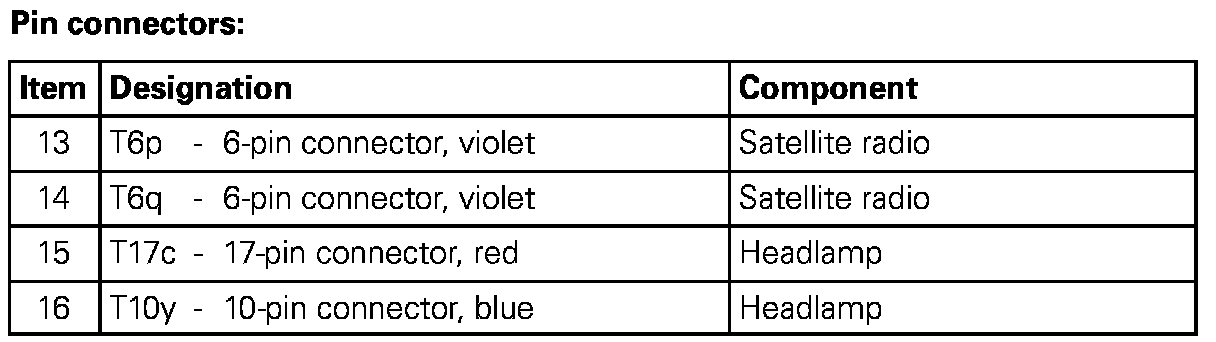

Pin Connectors:

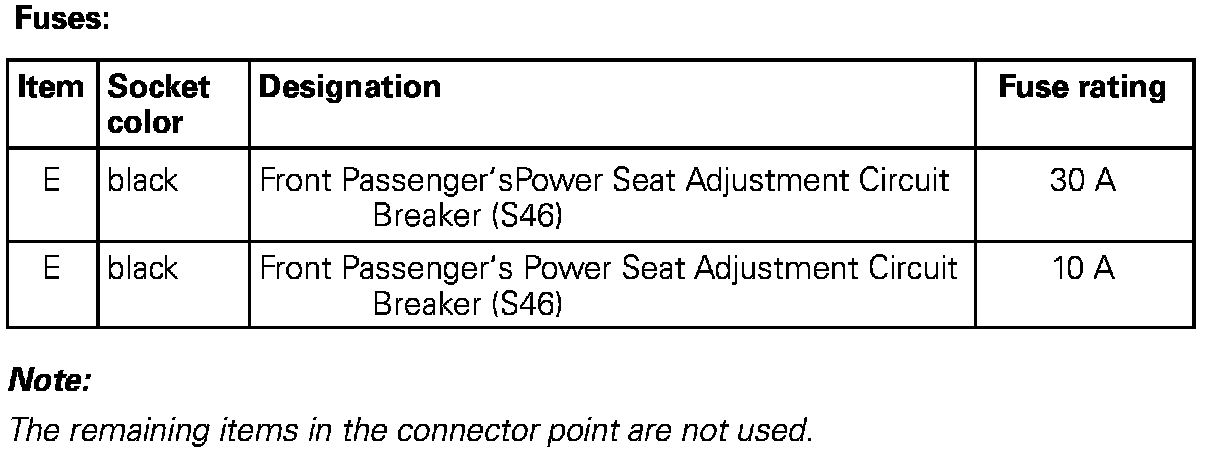

Fuses:

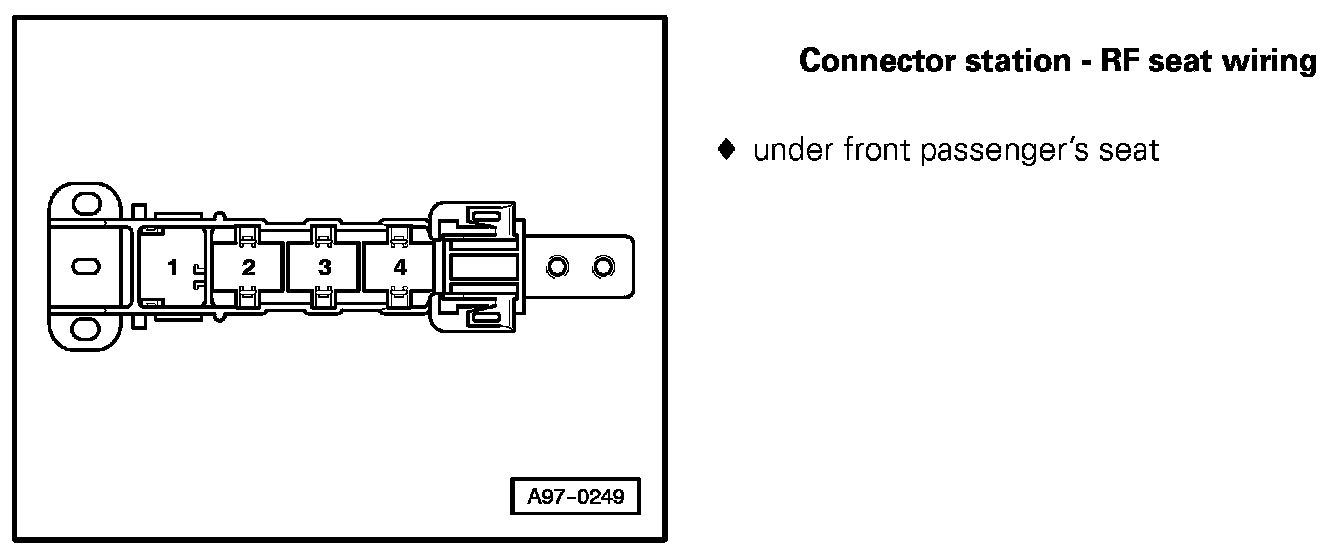

Connector station - RF seat wiring

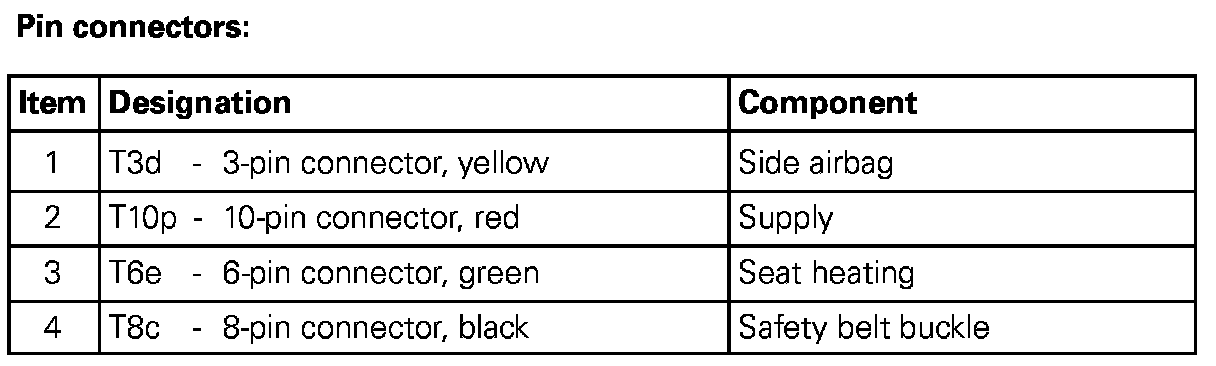

Connector Station - RF Seat Wiring:

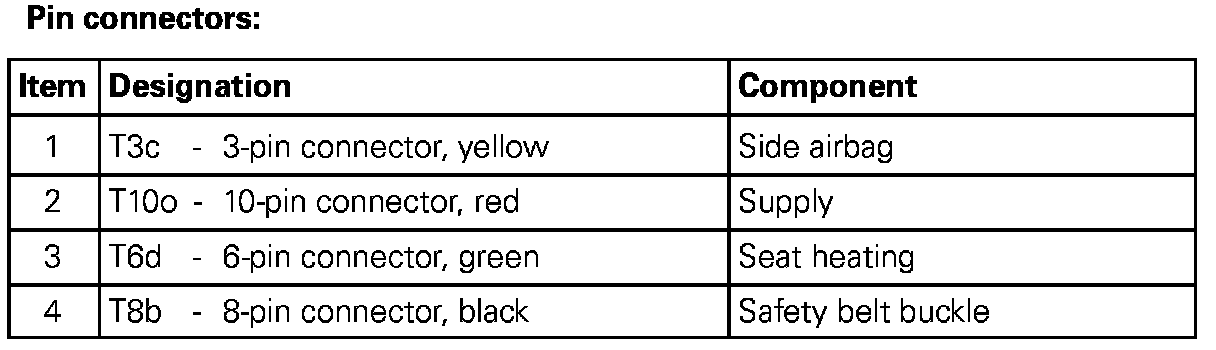

Pin Connectors:

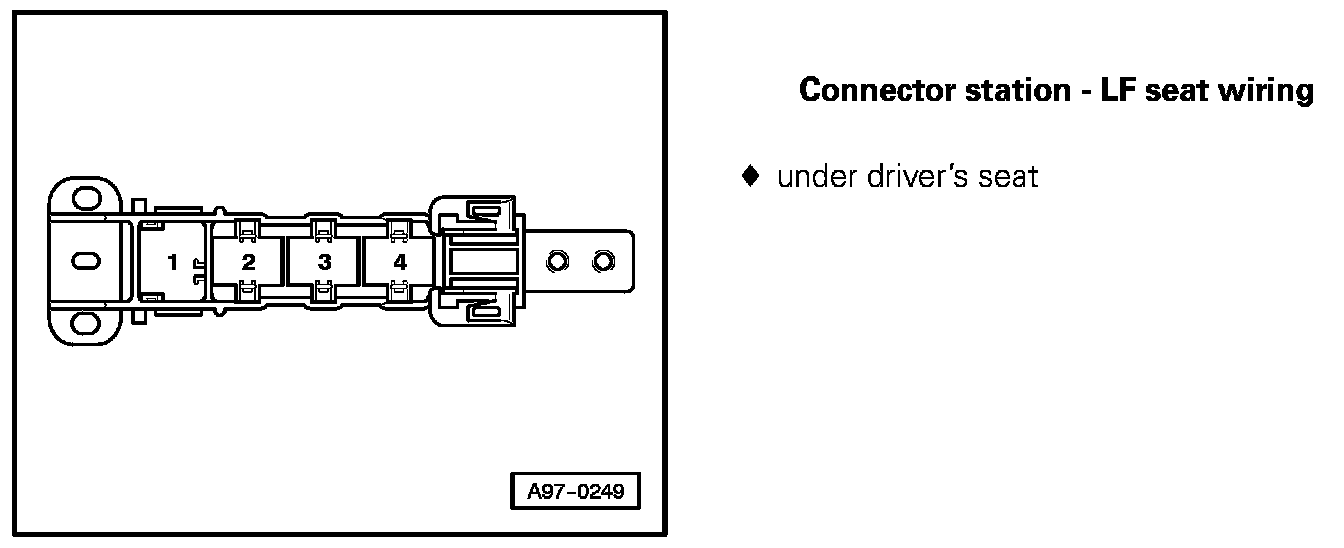

Connector station - LF seat wiring


Connector Station - LF Seat Wiring:




Pin Connectors:

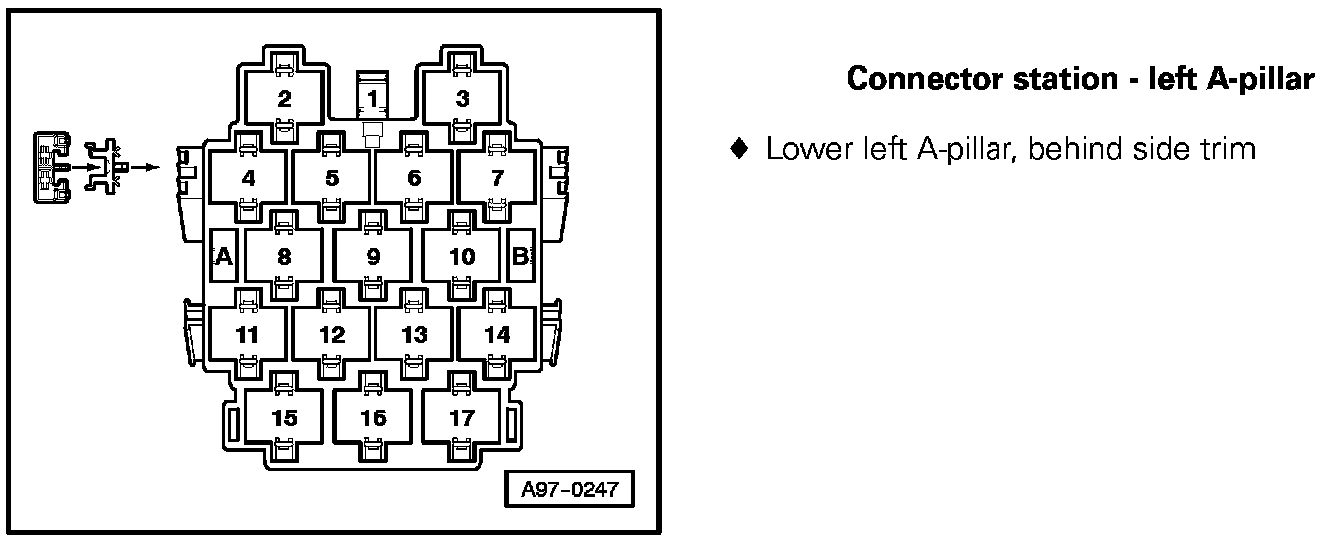

Connector station - left A-pillar

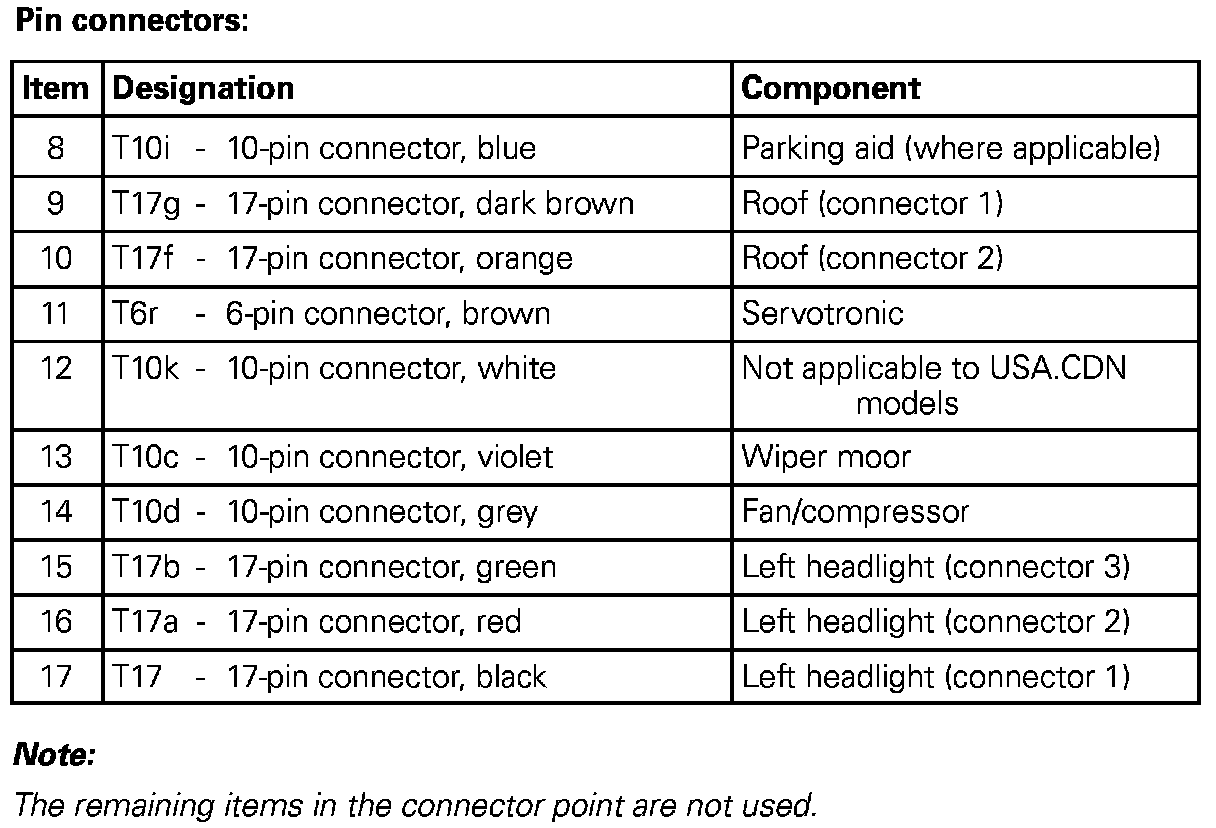

Connector Station - Left A-pillar:

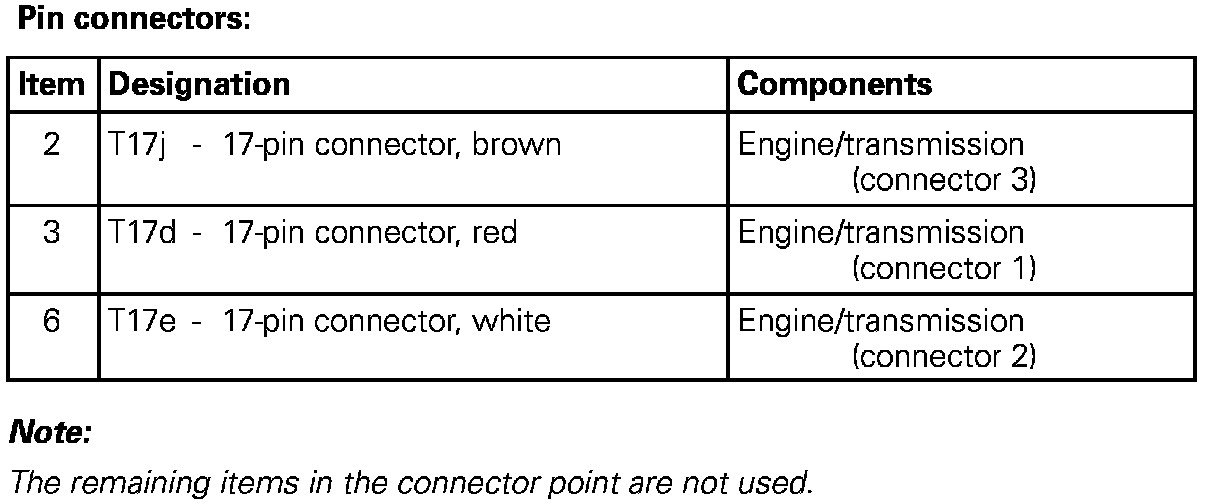

Pin Connectors:

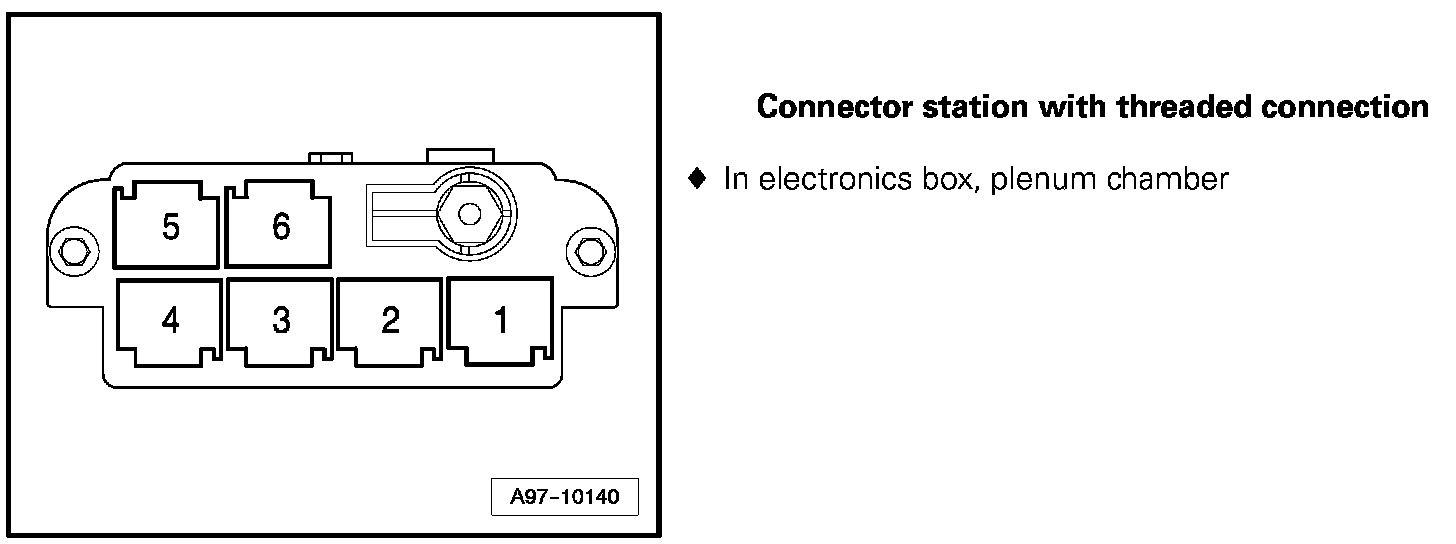

Connector station with threaded connection


Connector Station With Threaded Connection:




Pin Connectors:
