Main Fuse, Connector Stations, Relay/Fuse Carriers, Fuse Box



Main Fuse, Connector Stations, Relay/Fuse Carriers, Fuse Box (Part 1):




Main Fuse, Connector Stations, Relay/Fuse Carriers, Fuse Box (Part 2):






Connector Stations

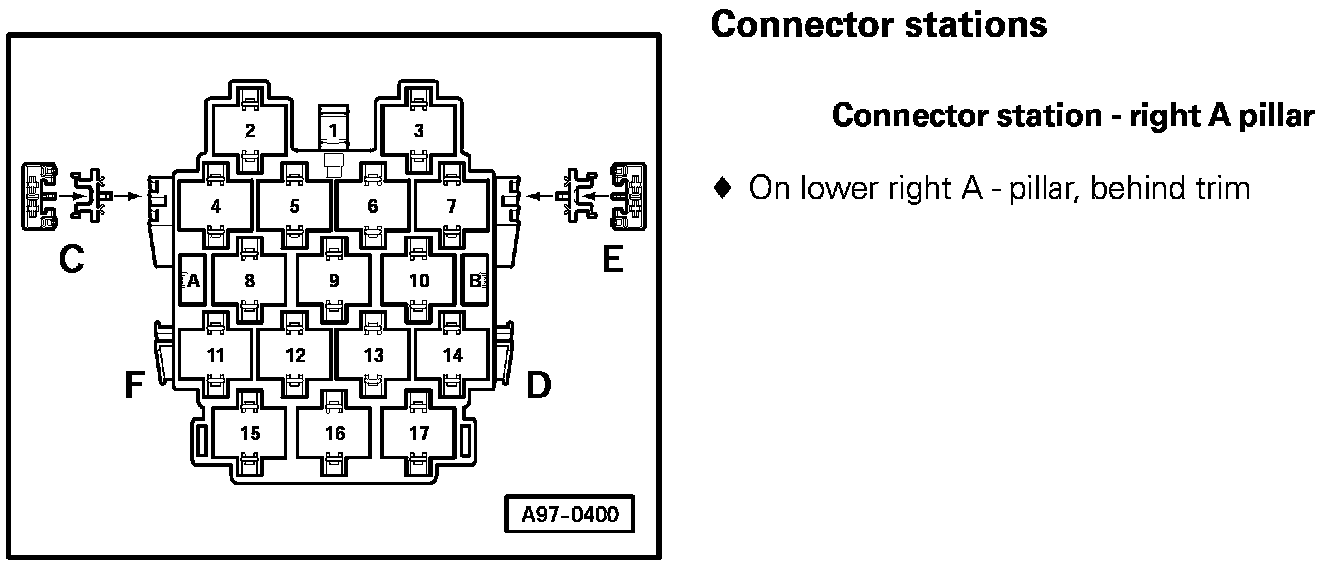

Connector station - right A pillar


Connector Station - Right A Pillar:




Fuse Colors:




Connectors:

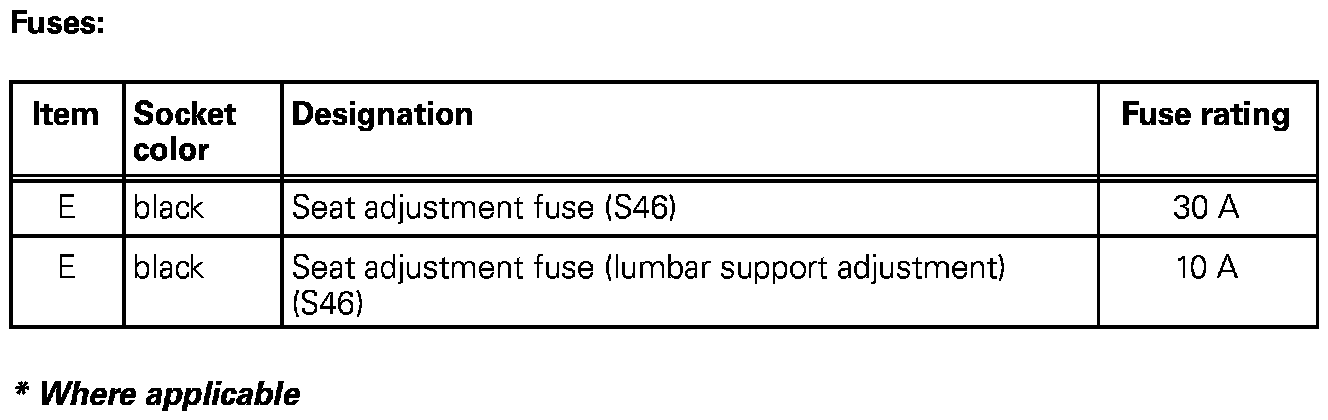

Fuses:

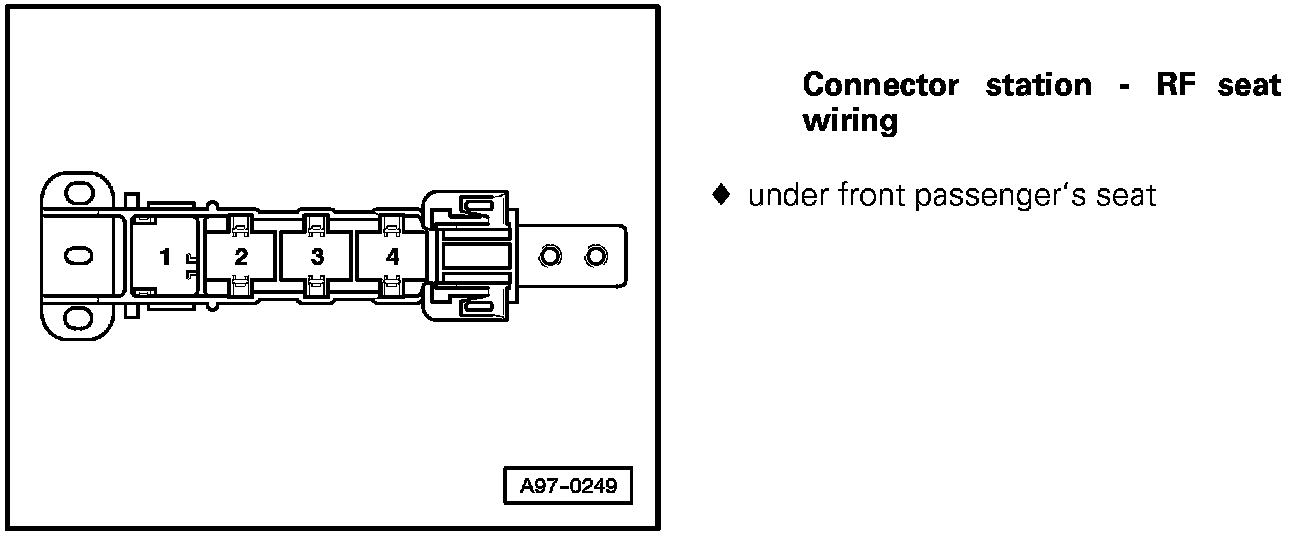

Connector station - RF seat wiring


Connector Station - RF Seat Wiring:

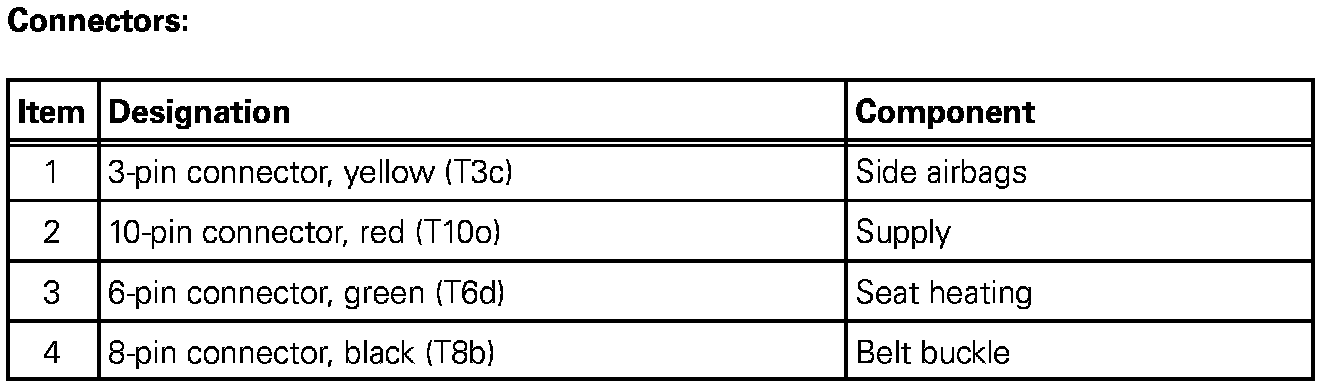

Connectors:

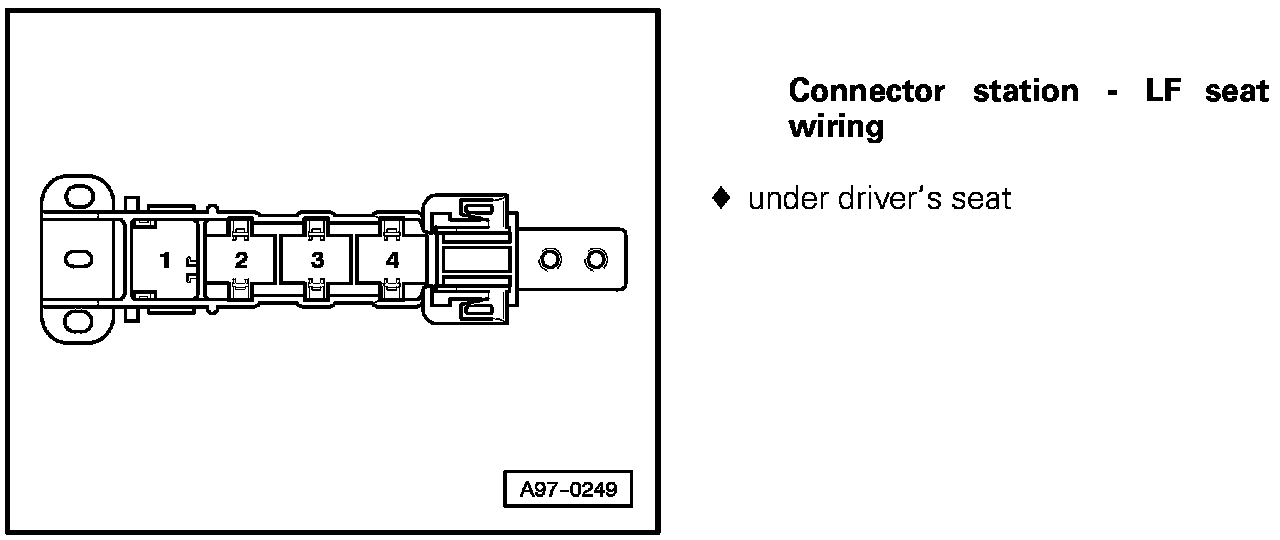

Connector station - LF seat wiring


Connector Station - LF Seat Wiring:

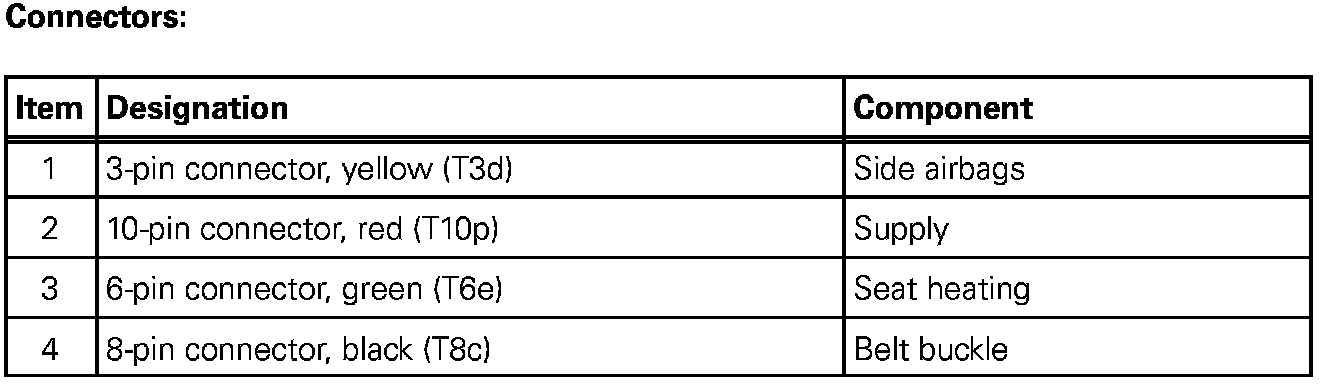

Connectors:

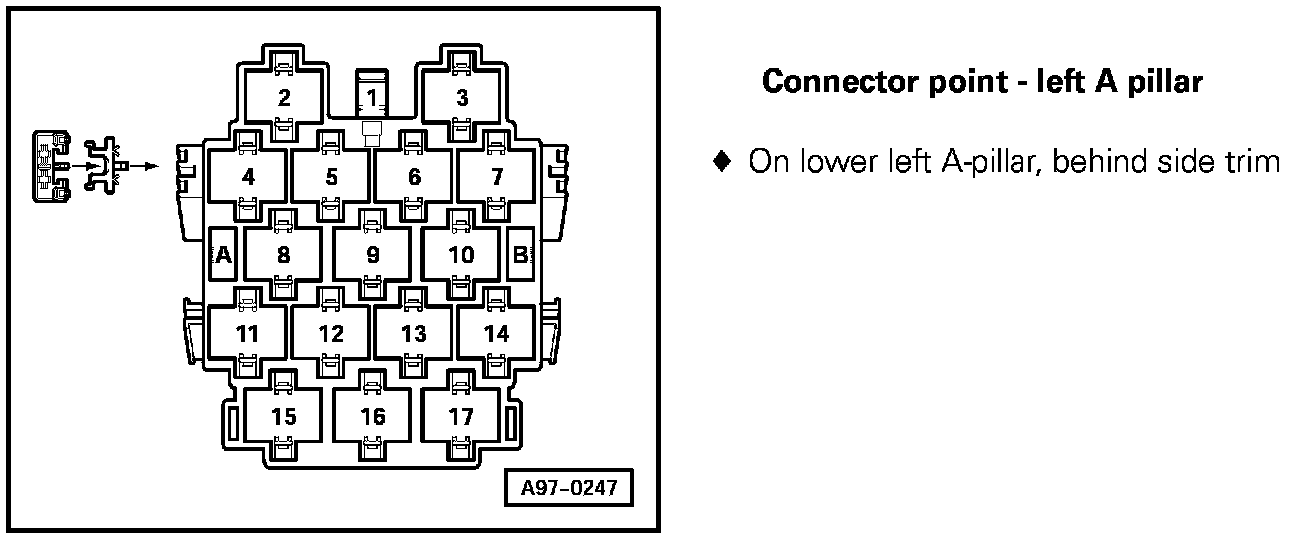

Connector point - left A pillar


Connector Point - Left A Pillar:

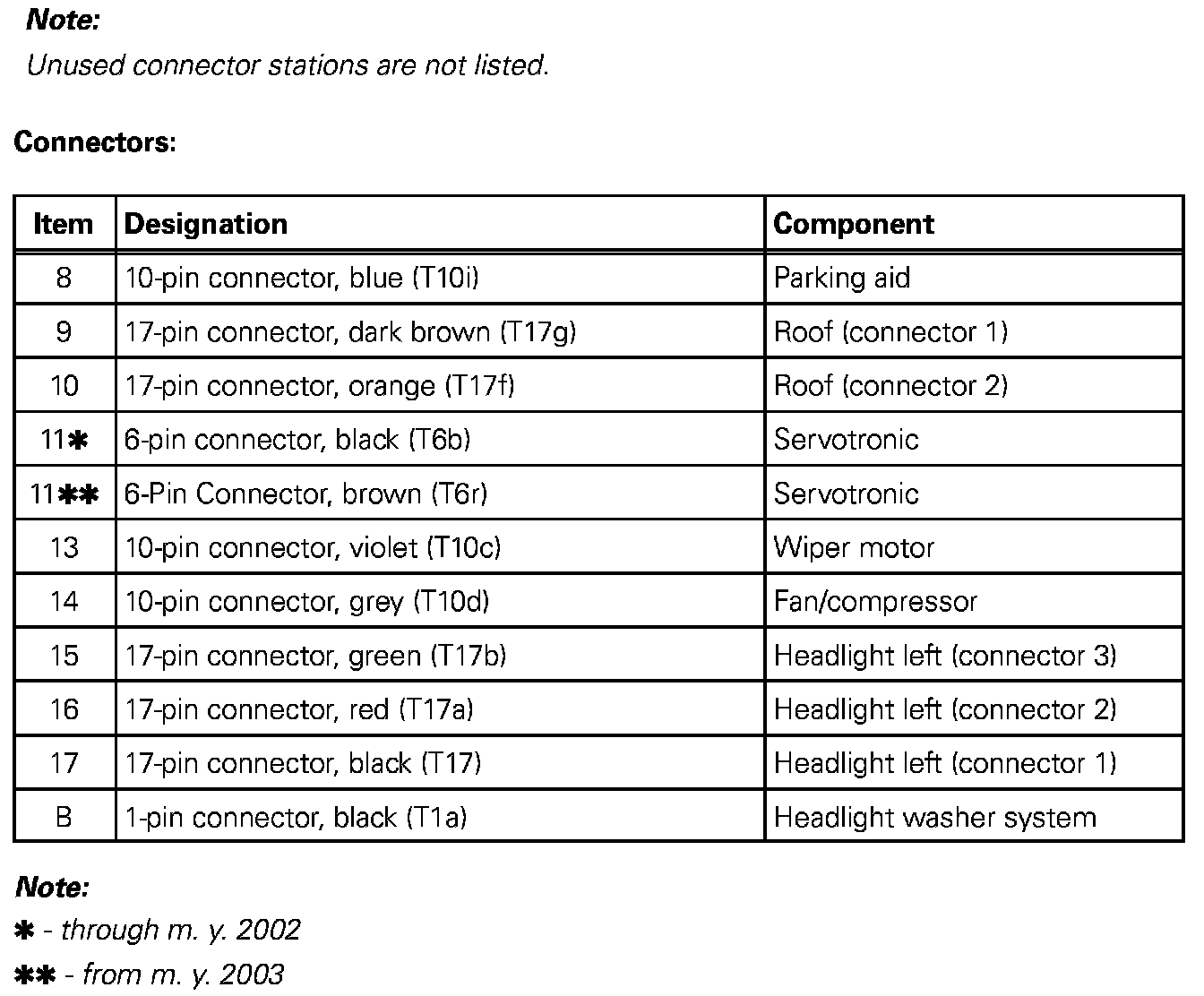

Connectors:

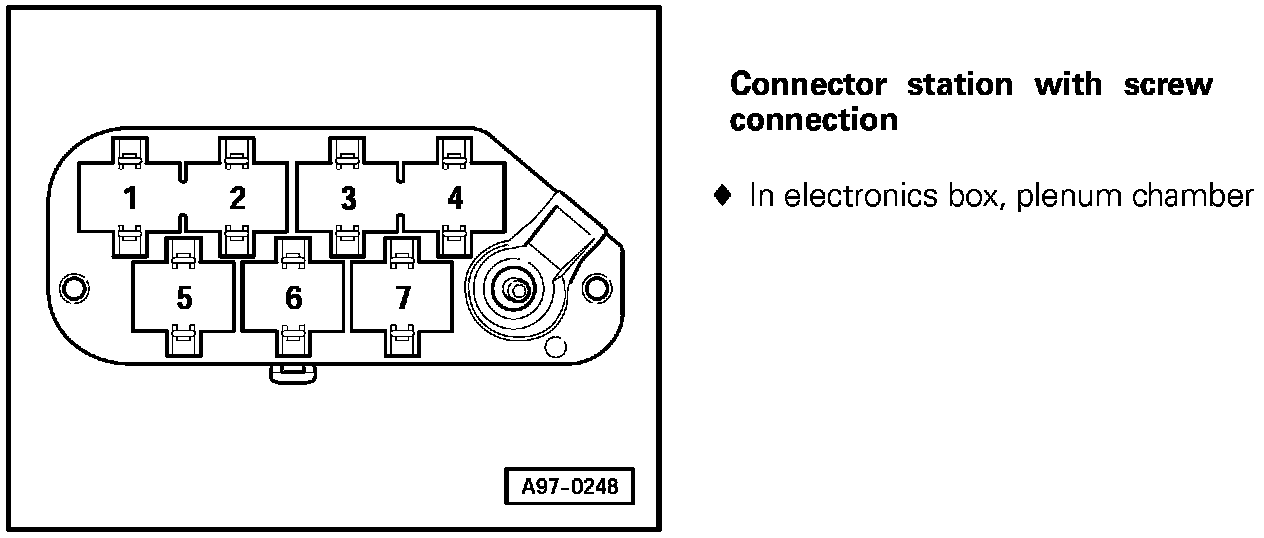

Connector station with screw connection


Connector Station With Screw Connection:

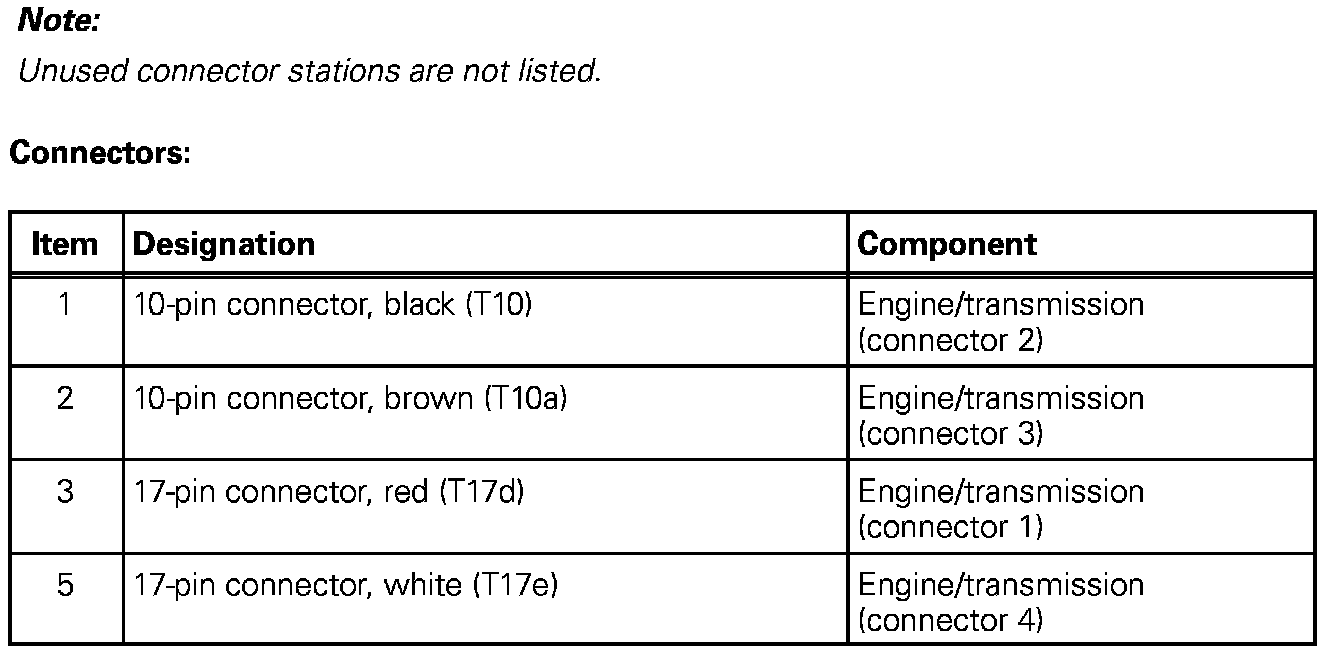

Connectors:
