Ground Connections In Passenger Compartment, Overview

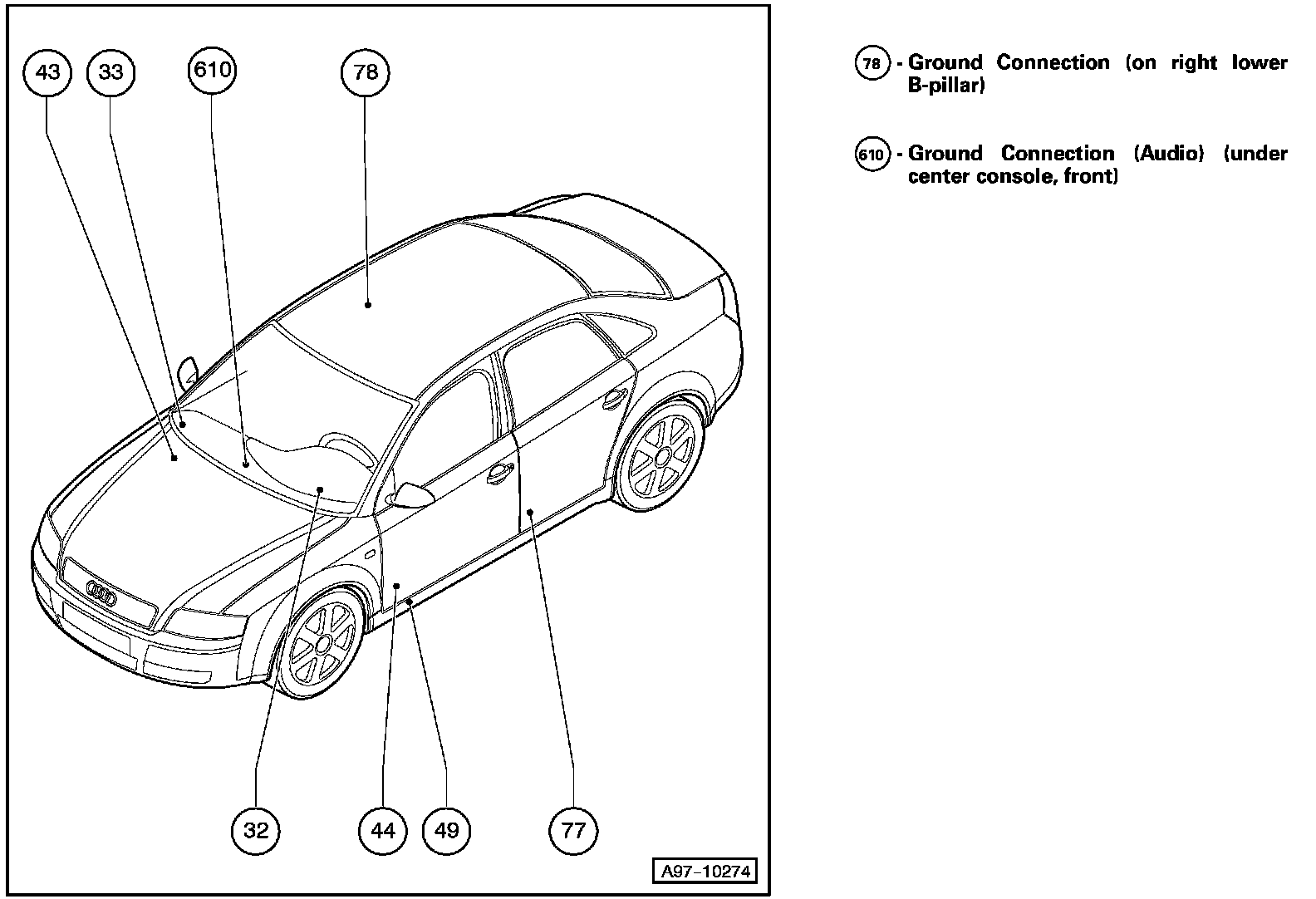

Ground Connections In Passenger Compartment, Overview (Part 1):

Ground Connections In Passenger Compartment, Overview (Part 2):

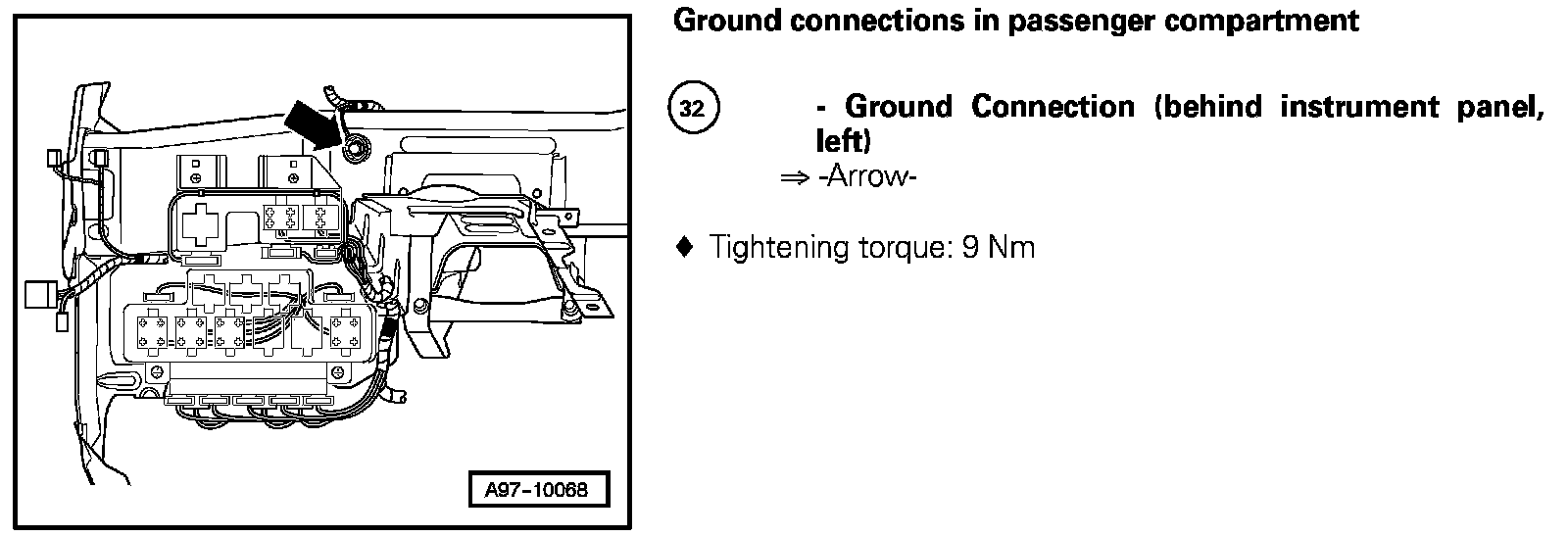

Ground Connection (Behind Instrument Panel, Left) 32:

Ground Connection (Behind Instrument Panel, Right) 33:

Ground Connection (On Right Lower A-pillar) 43:

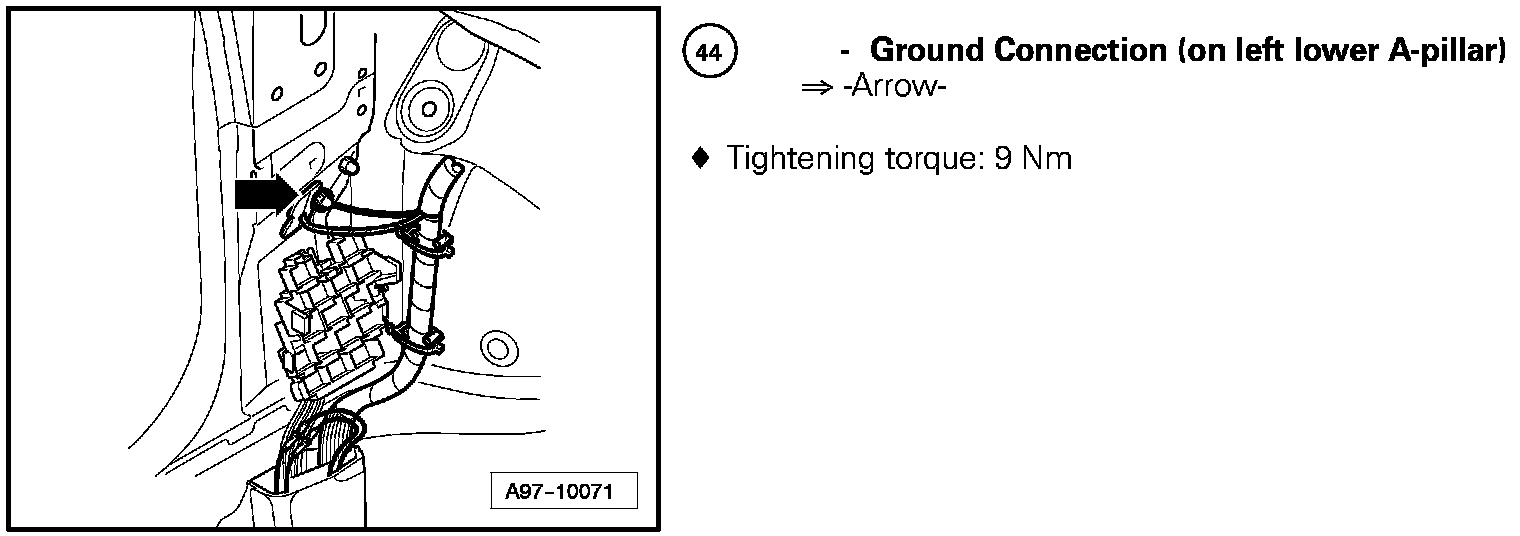

Ground Connection (On Left Lower A-pillar) 44:

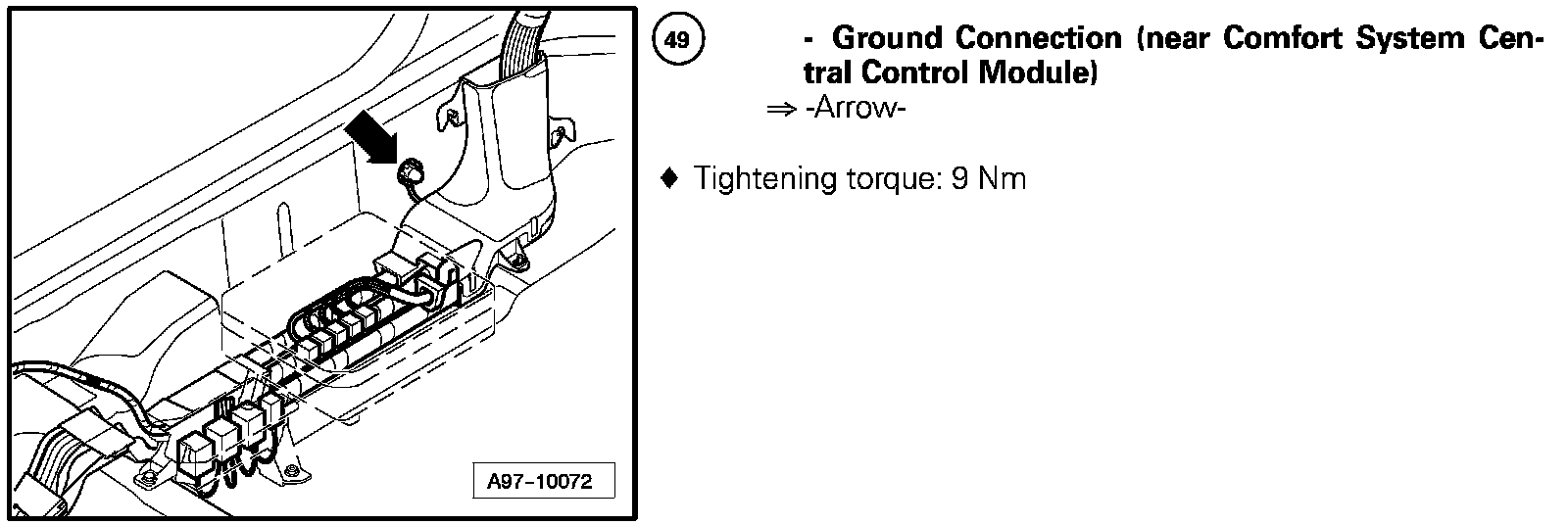

Ground Connection (Near Comfort System Central Control Module) 49:

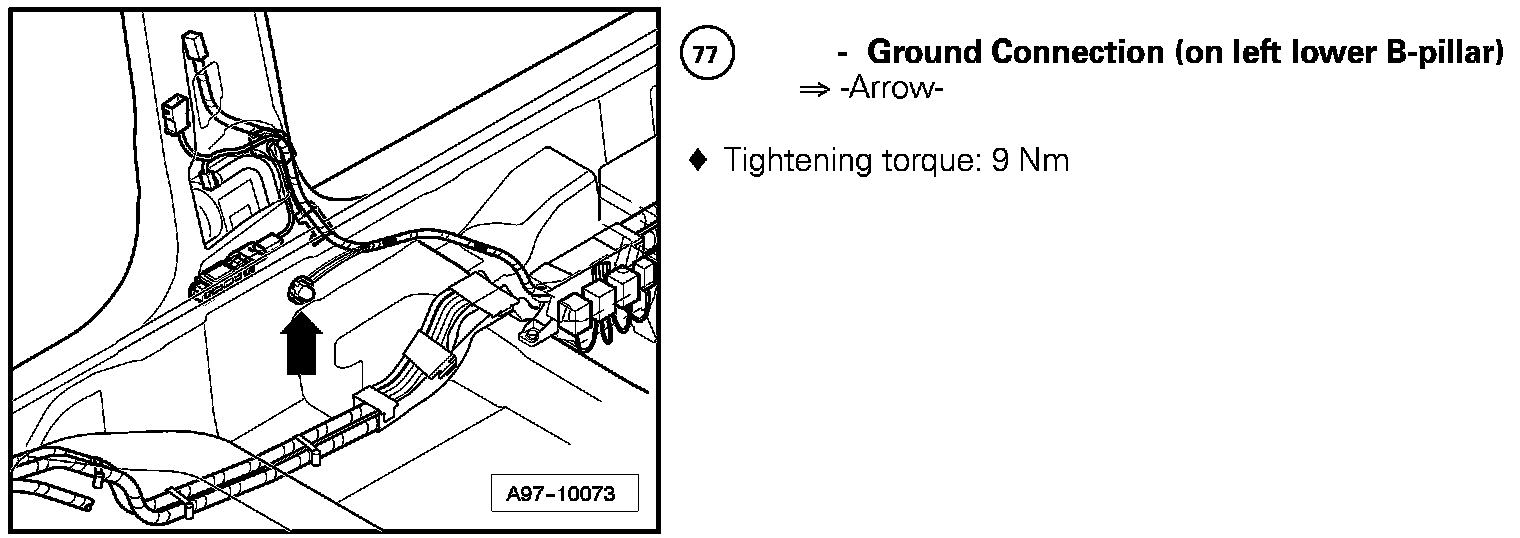

Ground Connection (On Left Lower B-Pillar) 77:

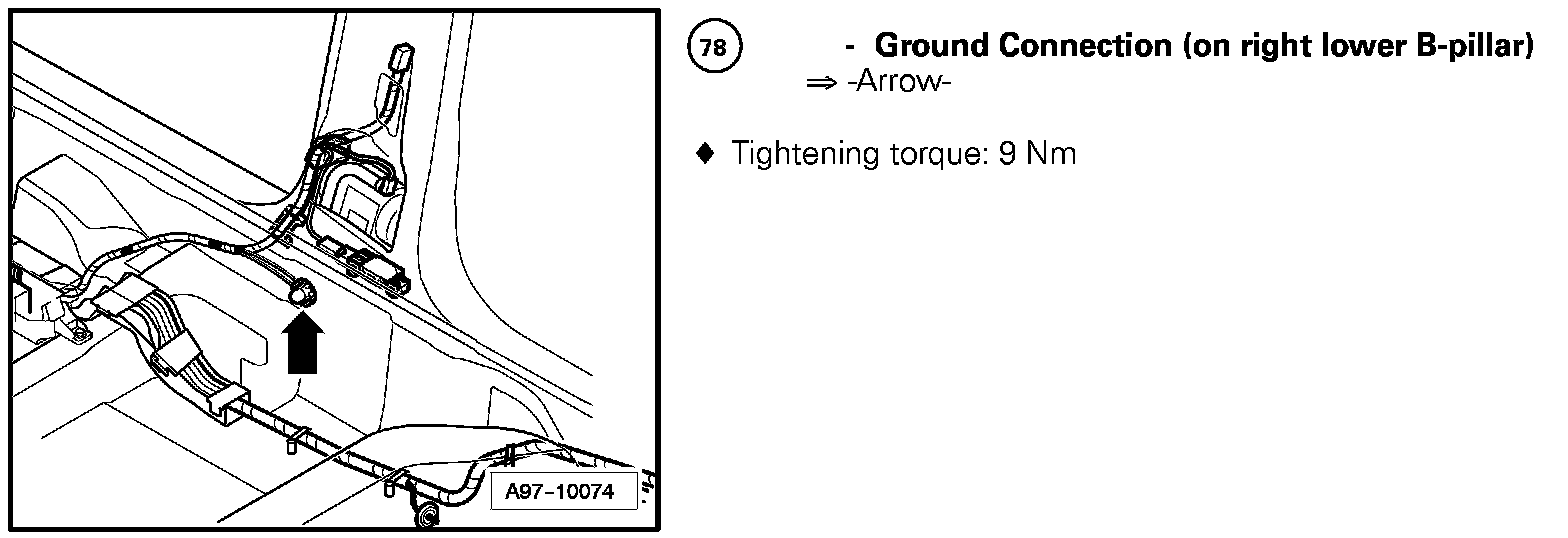

Ground Connection (On Right Lower B-pillar) 78:

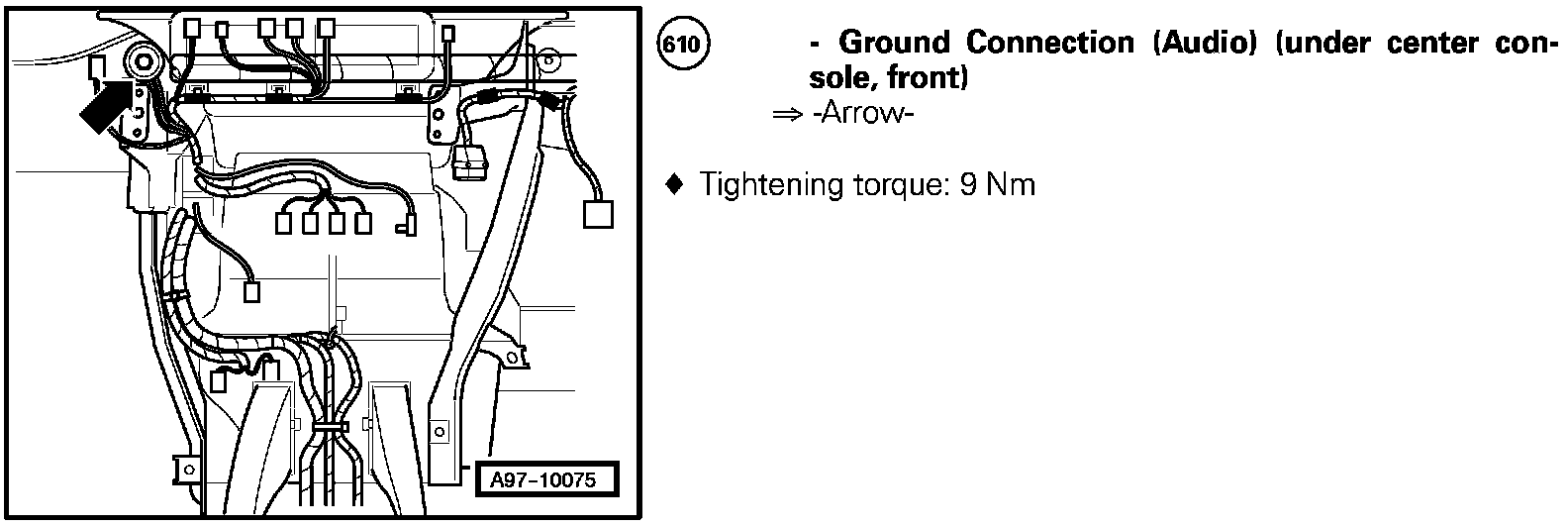

Ground Connection (Audio) (Under Center Console, Front) 610:
