Ground Connections In Luggage Compartment, Overview

Ground Connections In Luggage Compartment, Overview:

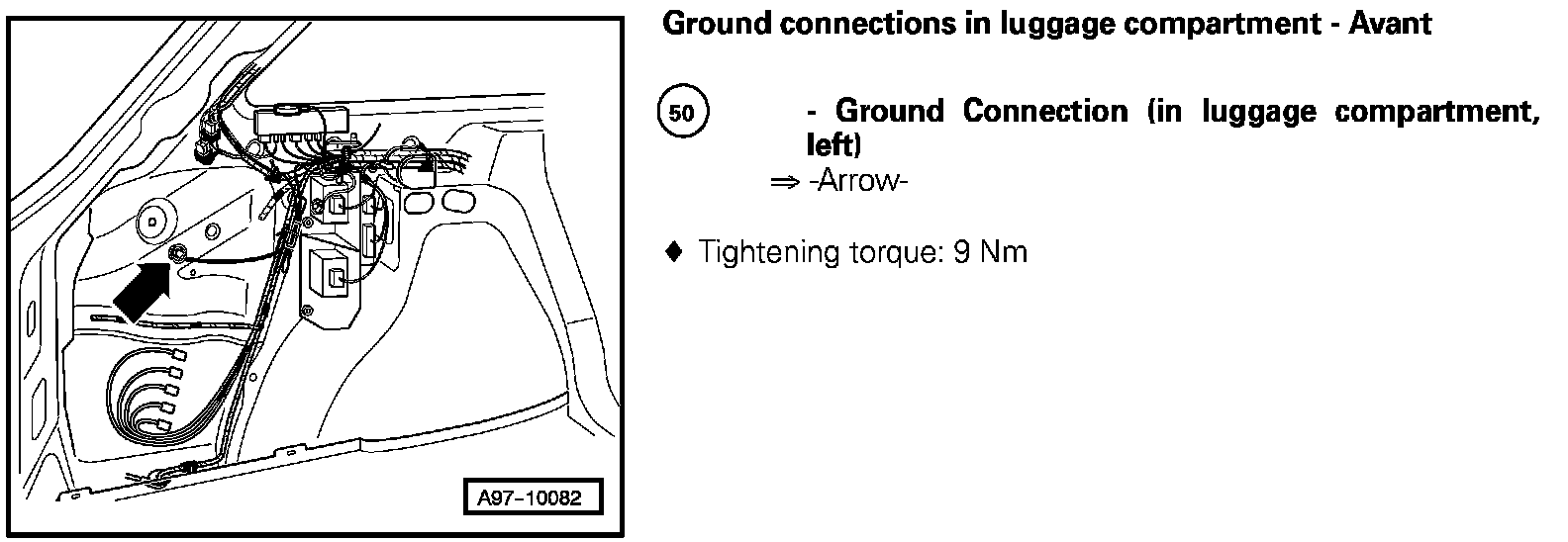

Ground Connection (In Luggage Compartment, Left) 50:

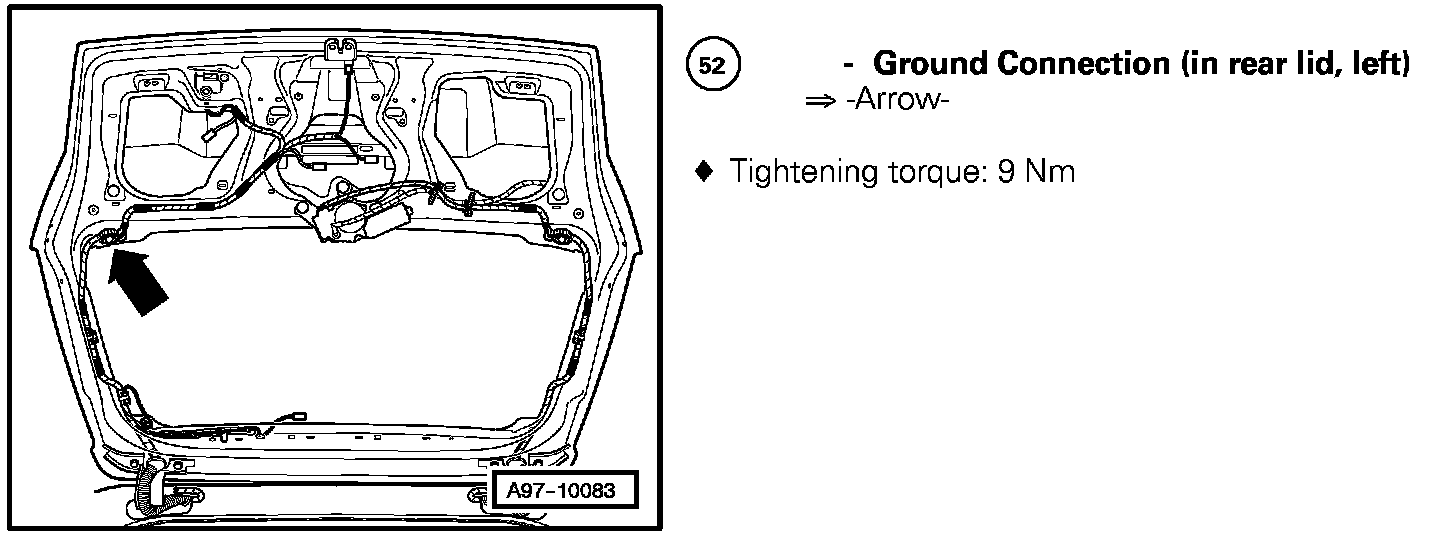

Ground Connection (In Rear Lid, Left) 52:

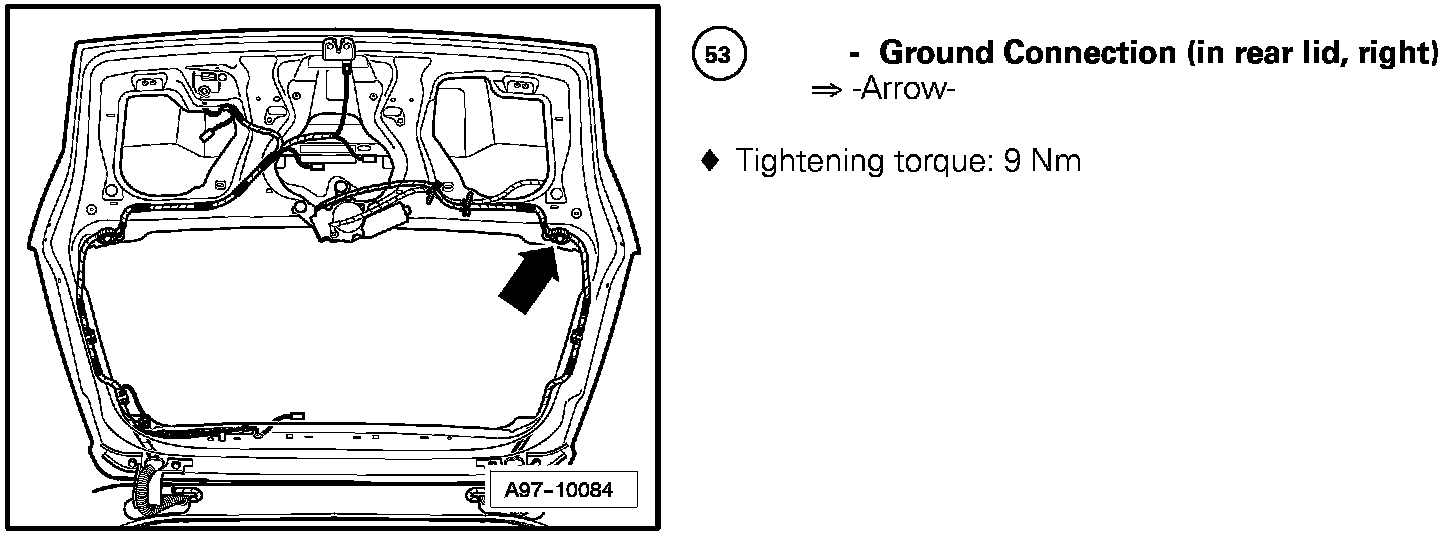

Ground Connection (In Rear Lid, Right) 53:

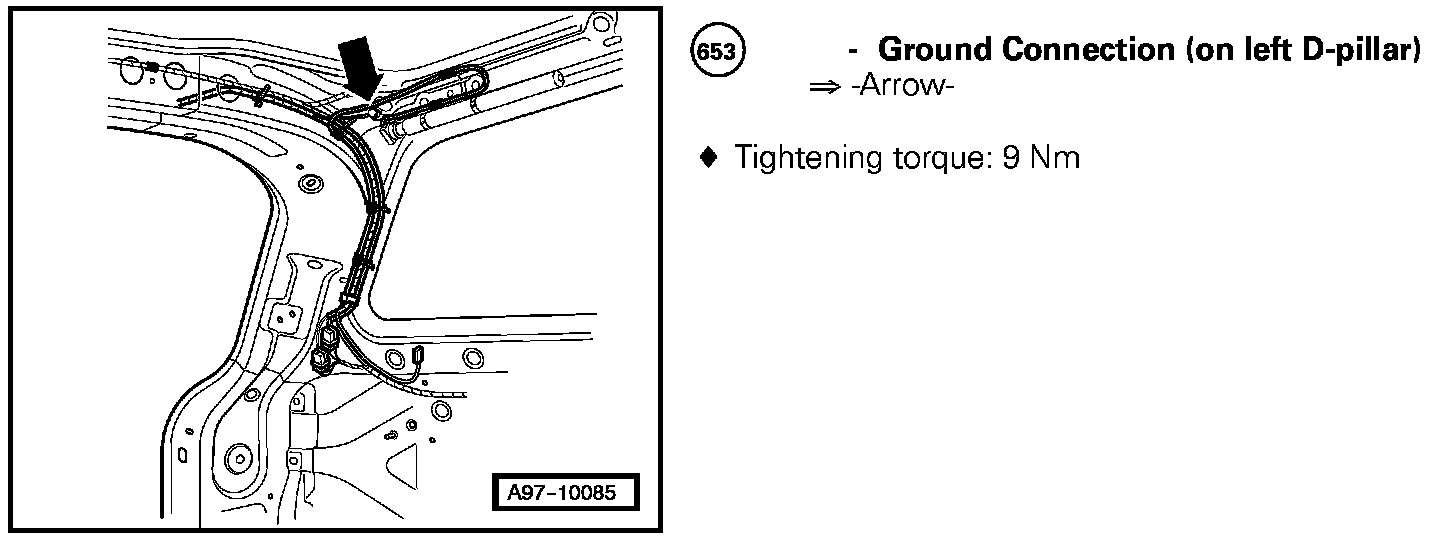

Ground Connection (On Left D-pillar) 653:

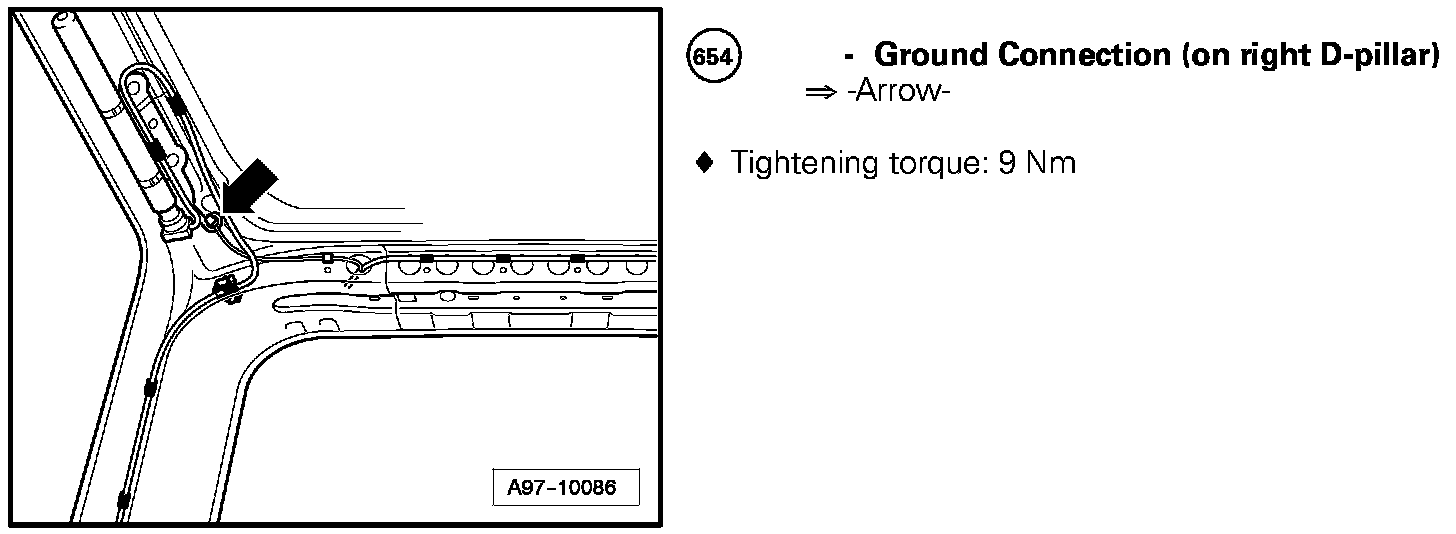

Ground Connection (On Right D-pillar) 654:
