Ground Connections In Engine Compartment, Overview

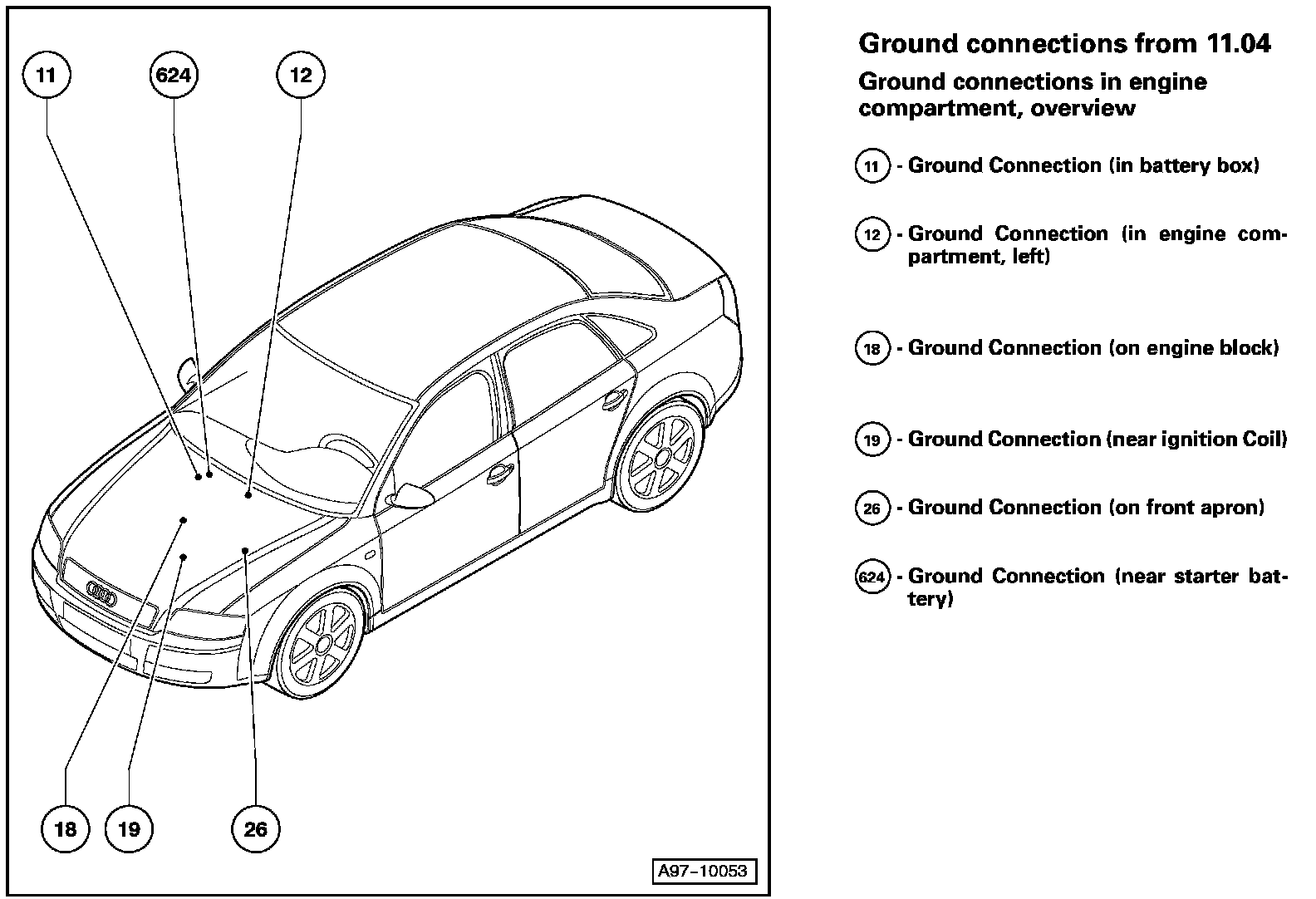

Ground Connections In Engine Compartment, Overview:

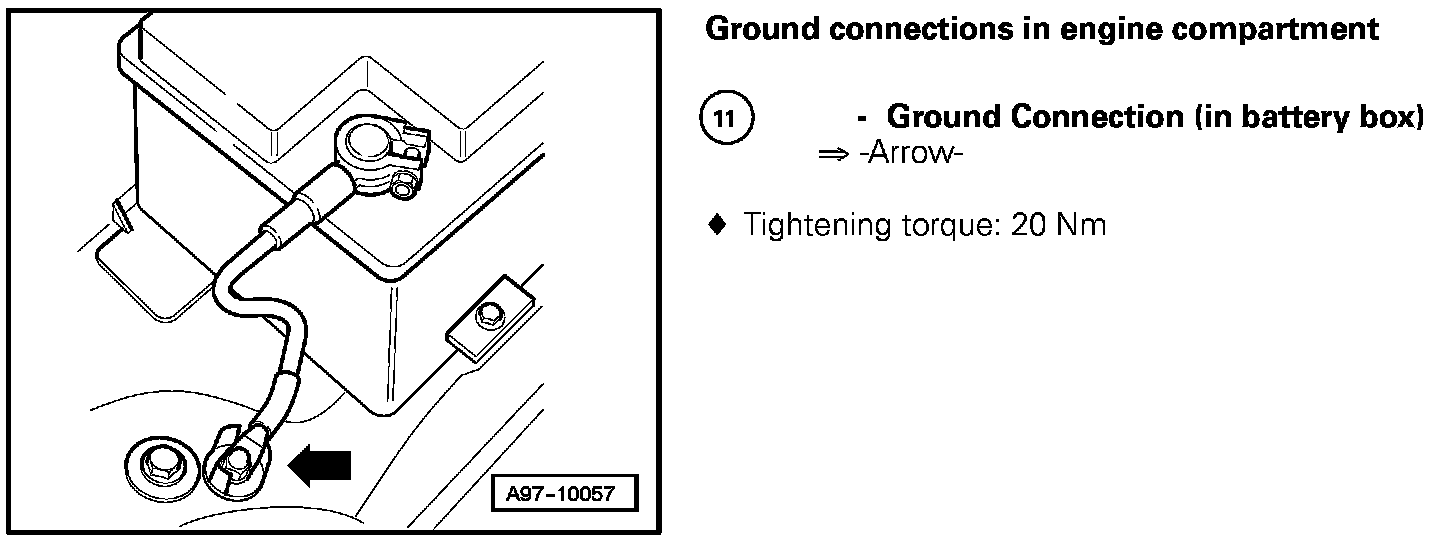

Ground Connection (In Battery Box) 11:

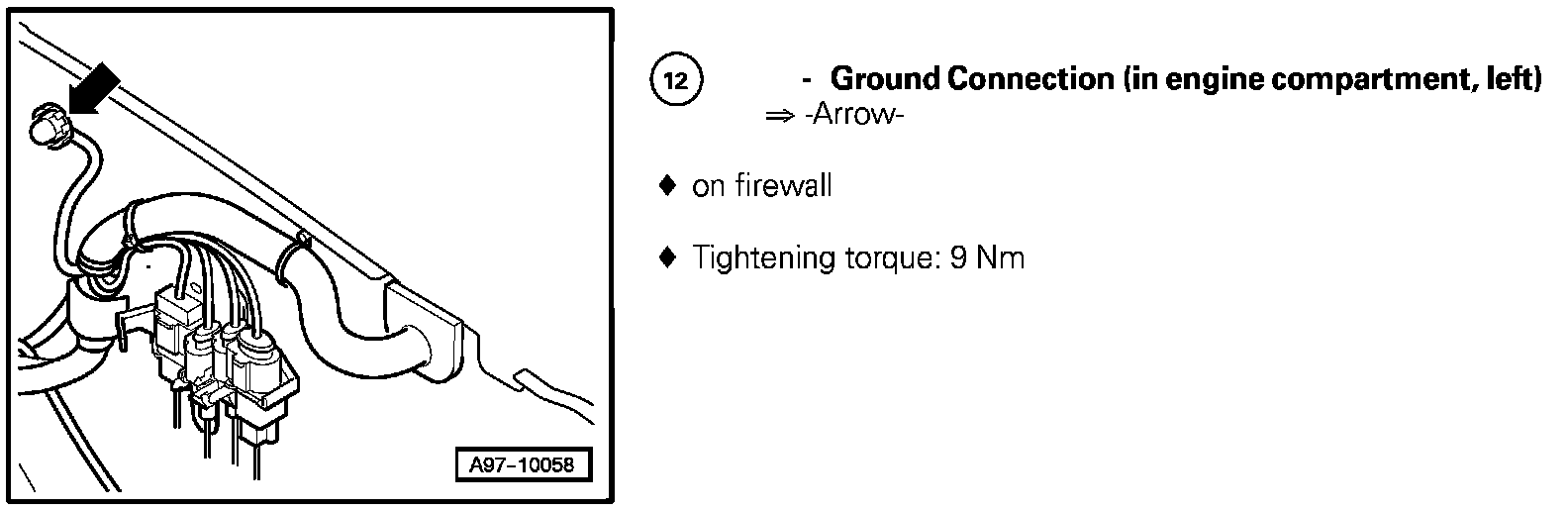

Ground Connection (In Engine Compartment, Left) 12:

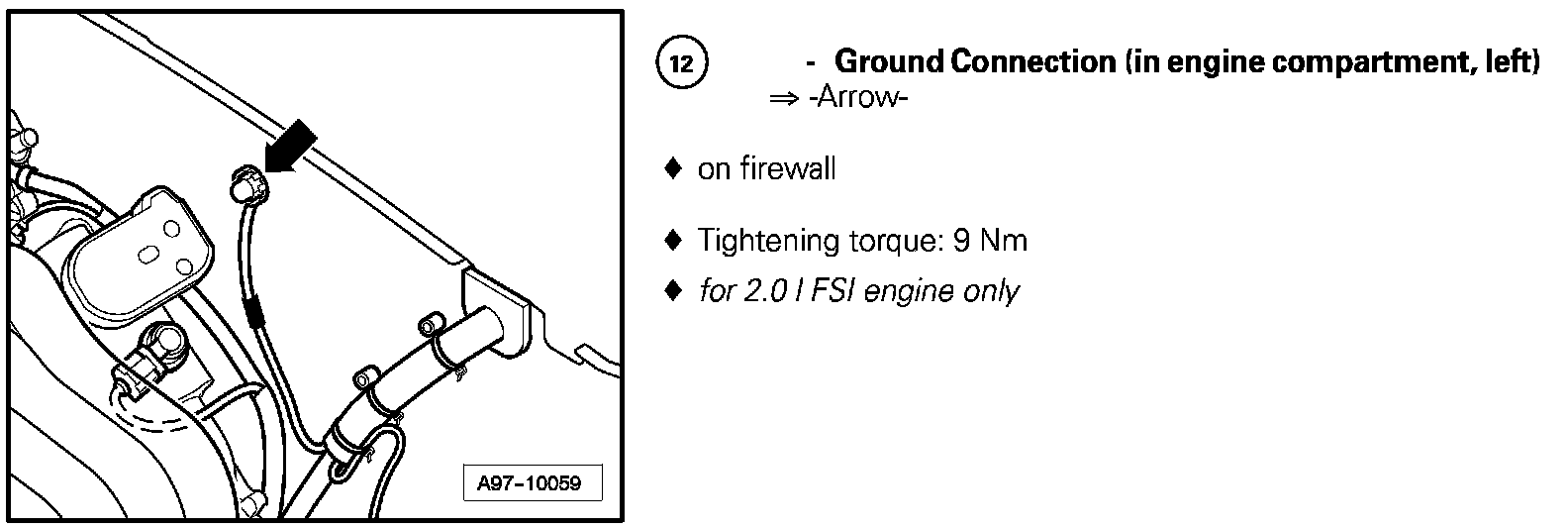

Ground Connection (In Engine Compartment, Left) 12:

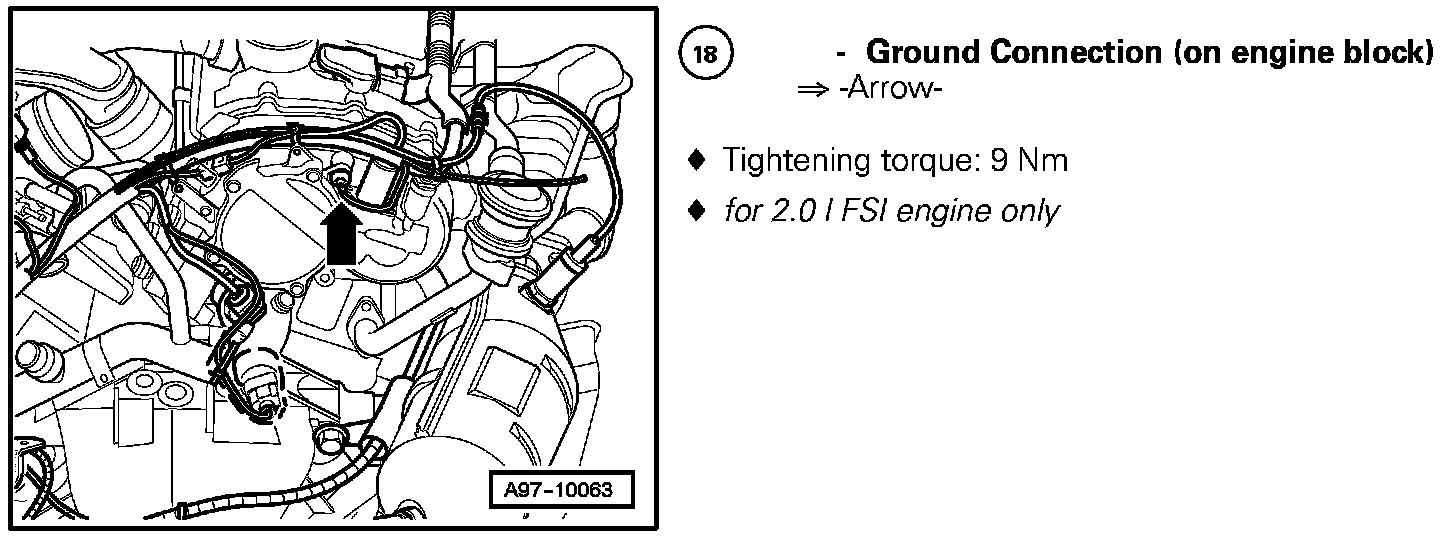

Ground Connection (On Engine Block) 18:

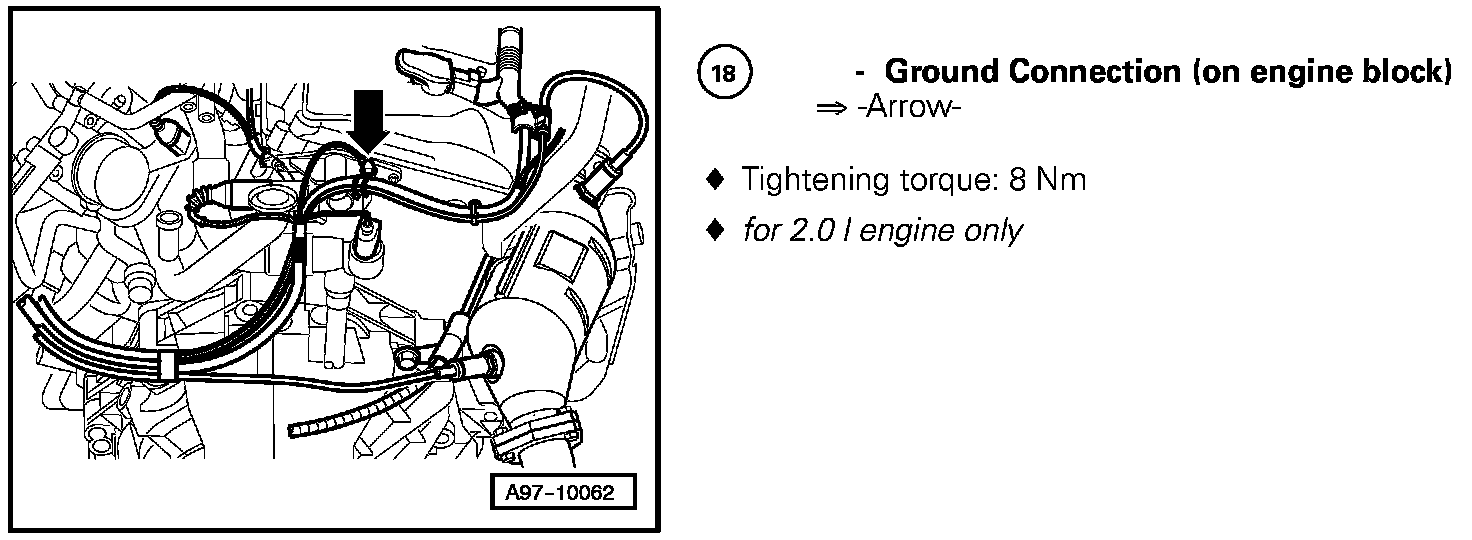

Ground Connection (On Engine Block) 18:

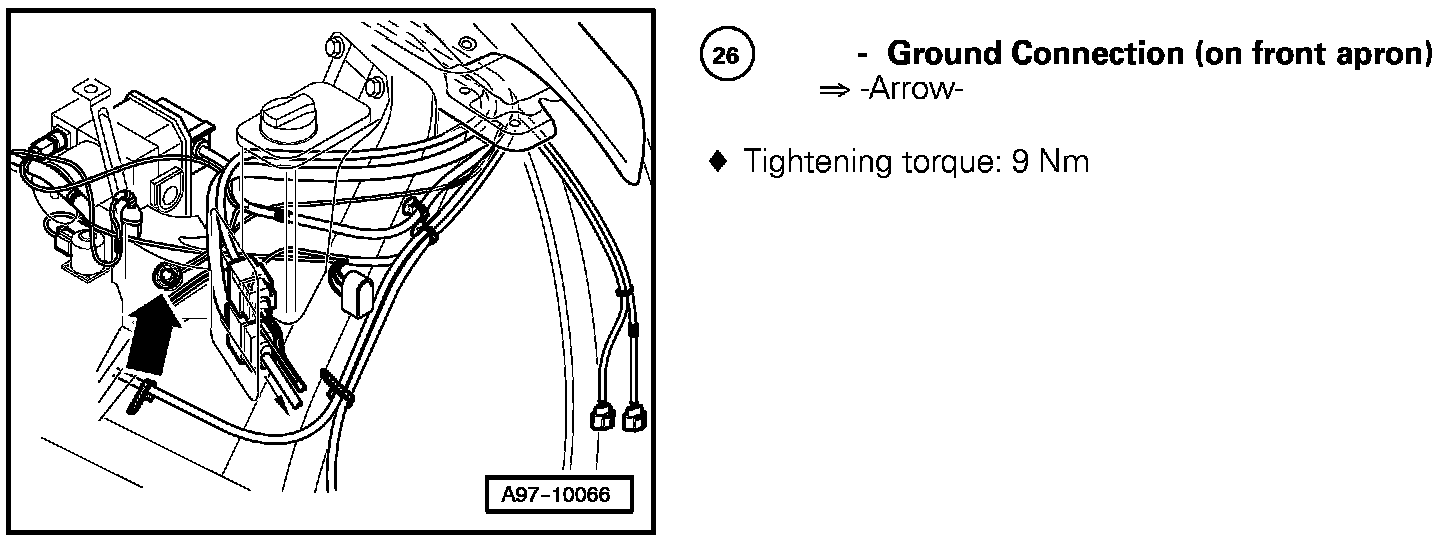

Ground Connection (On Front Apron) 26:

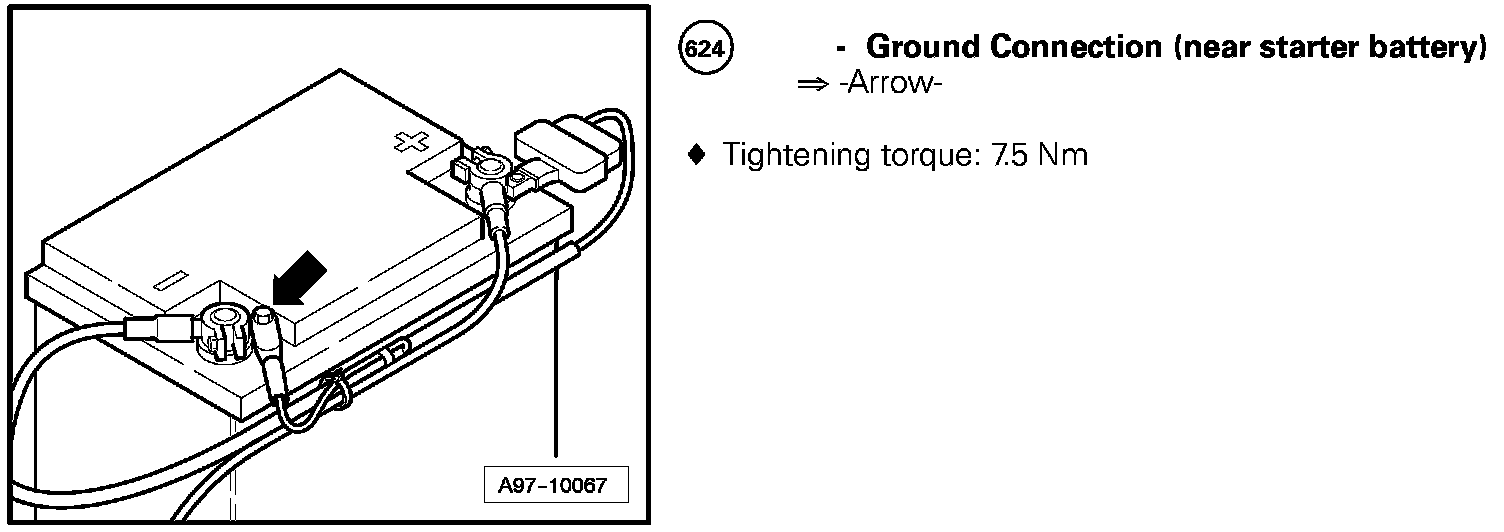

Ground Connection (Near Starter Battery) 624:
