Main Fuse, Connector Stations, Relay/Fuse Panels

Main Fuse, Connector Stations, Relay/Fuse Panels (Part 1):

Main Fuse, Connector Stations, Relay/Fuse Panels (Part 2):

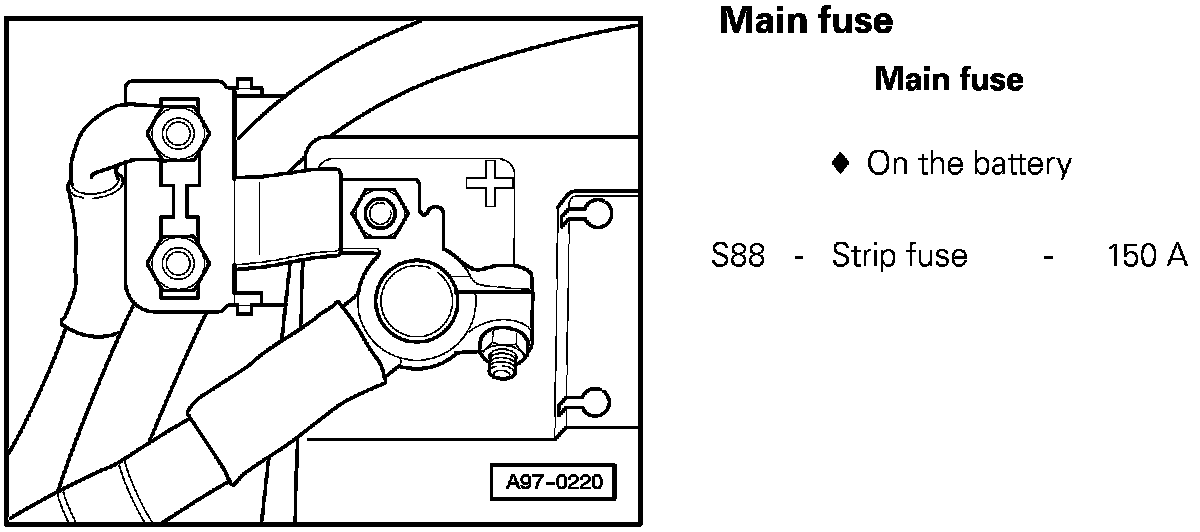

Main Fuse:

Relay Panel (9-position) At Vehicle Electrical Equipment Control Module J519:

Position Of Relays:

Fuse Colors:

Fuses:

Relay Panel (4-position) With Threaded Connection:

Position Of Relays:

Fuse Colors:

Fuses:

Relay Carrier (4-position):

Position Of Relays:

Fuse Colors:

Fuses:

Relay Panel (4-position):

Position Of Relays:

Fuse Colors:

Fuses:

Relay Panel (4-position):

Position Of Relays:

Fuse Colors:

Fuses:

Relay Panel (4-position):

Position Of Relays:

Fuse Colors:

Fuses:

Relay Carrier (4-position):

Position Of Relays:

Fuse Panel:

Fuse Colors:

Fuses 1 To 2:

Fuses 3 To 9:

Fuses 10 To 18:

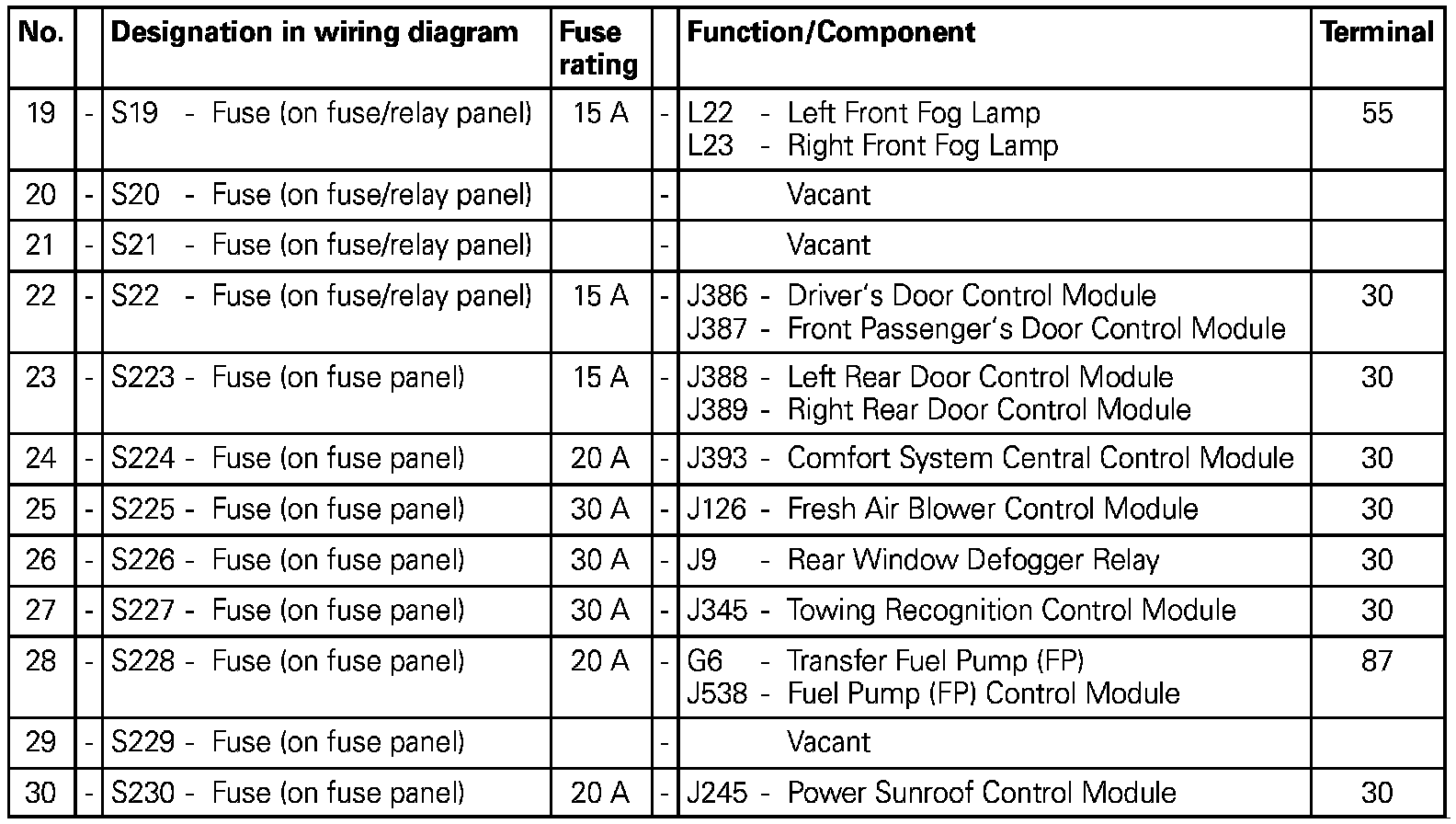

Fuses 19 To 30:

Fuses 31 To 36:

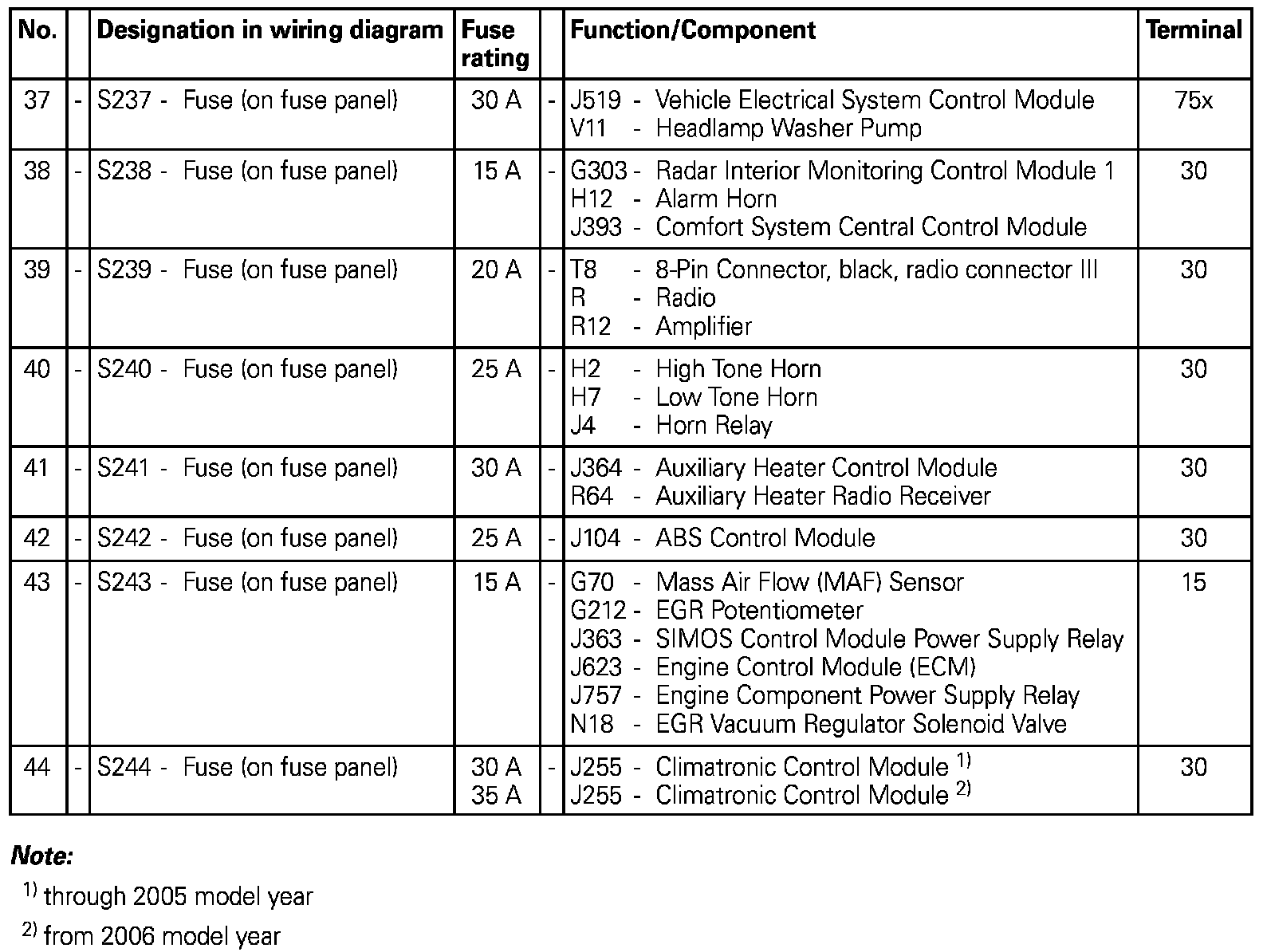

Fuses 37 To 44:
