Main Fuse, Connector Stations, Relay/Fuse Carriers, Fuse Box

Main Fuse, Connector Stations, Relay/Fuse Carriers, Fuse Box (Part 1):

Main Fuse, Connector Stations, Relay/Fuse Carriers, Fuse Box (Part 2):

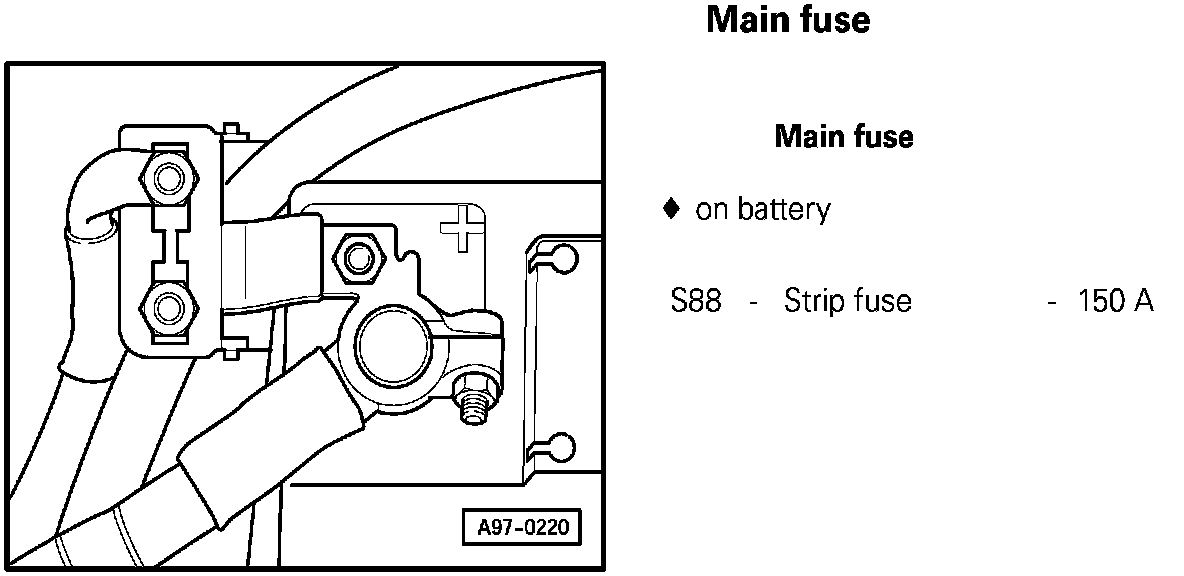

Main Fuse:

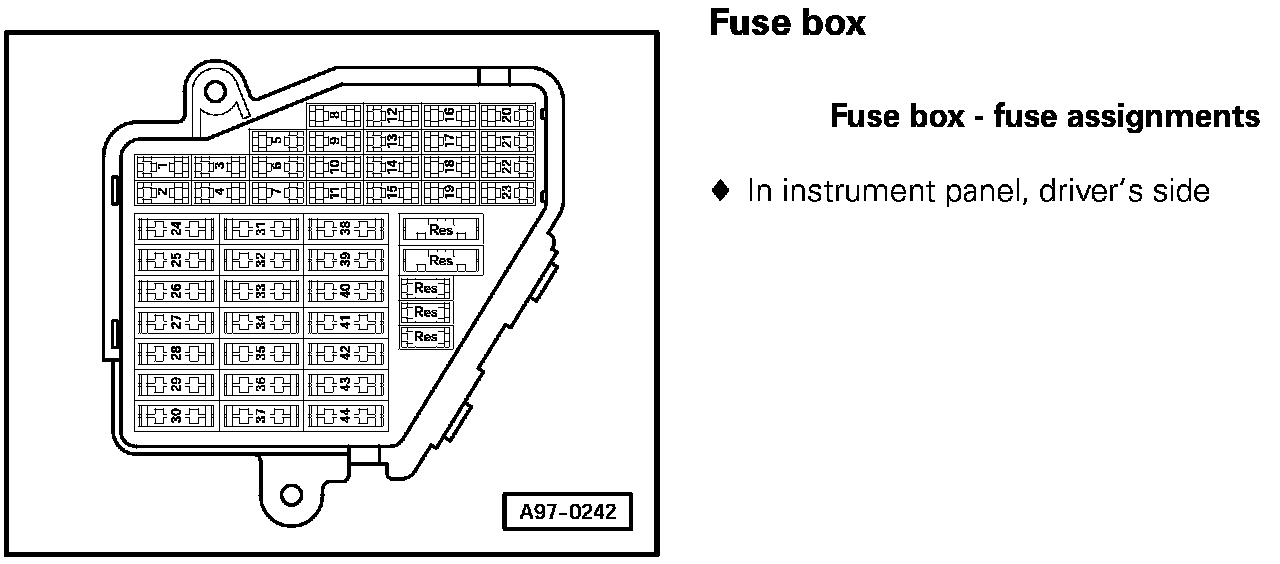

Fuse Box - Fuse Assignments:

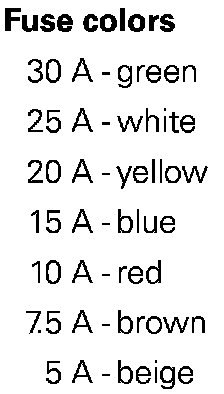

Fuse Colors:

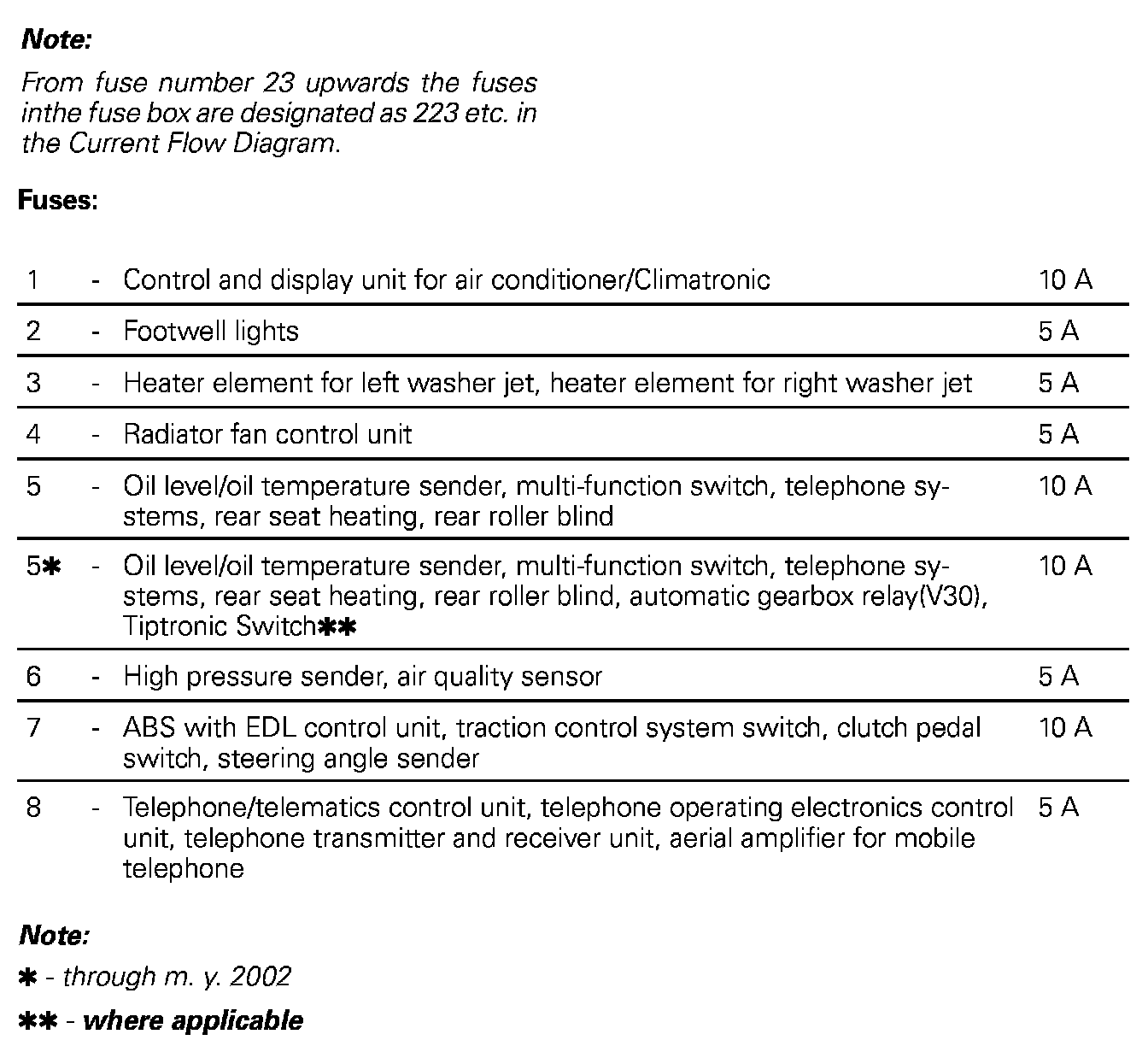

Fuses 1 To 8:

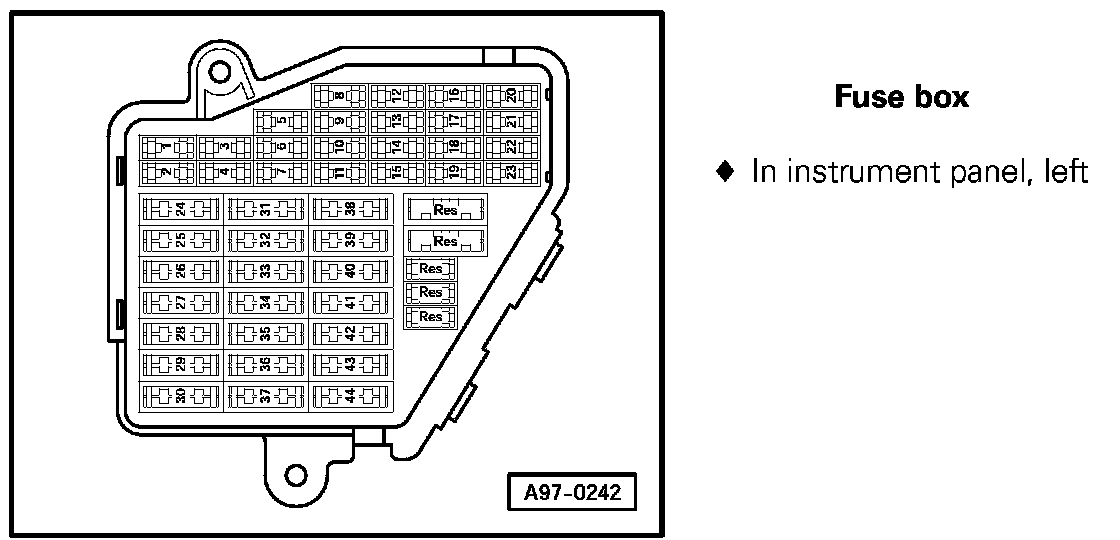

Fuse Box:

Fuse Colors:

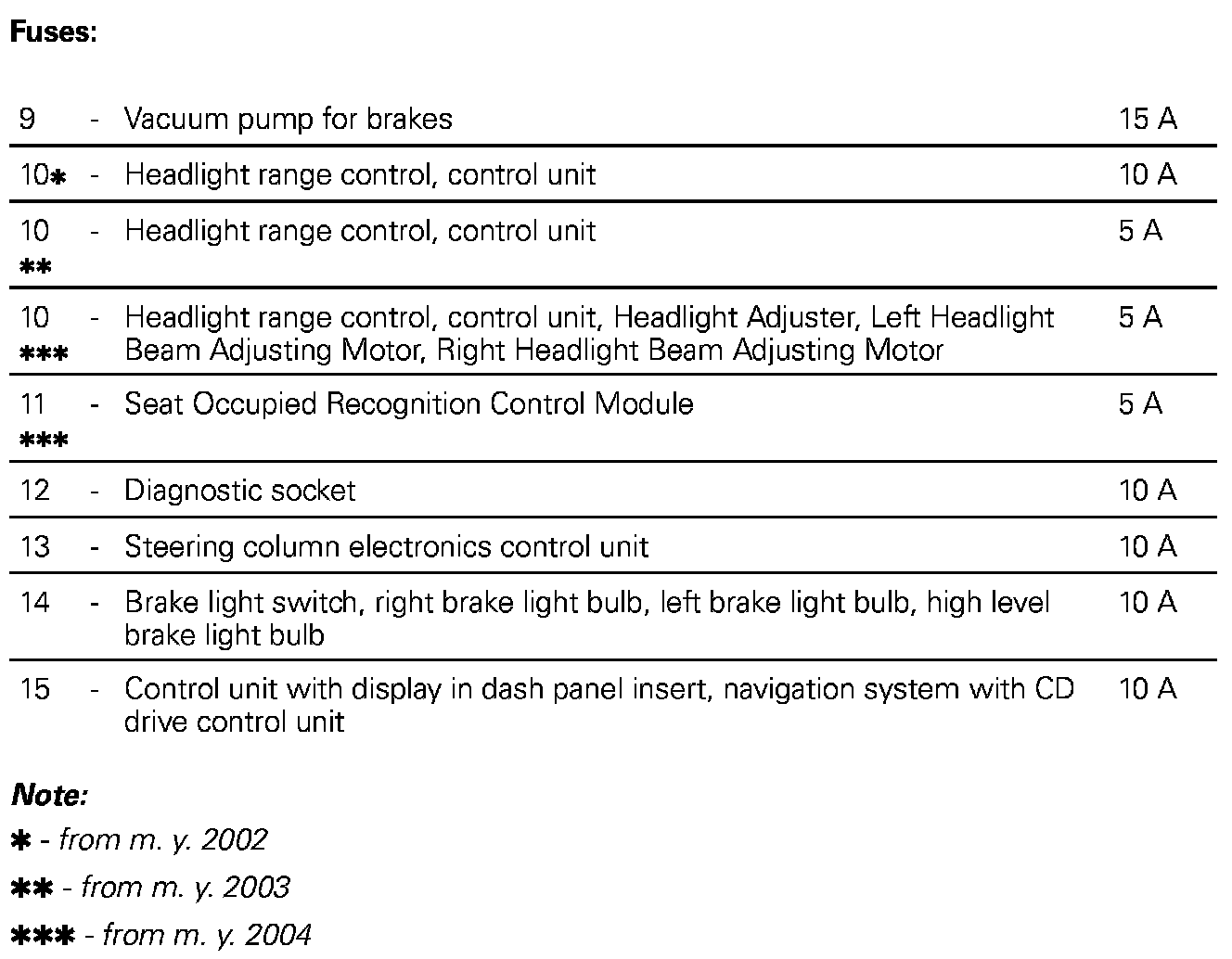

Fuses 9 To 15:

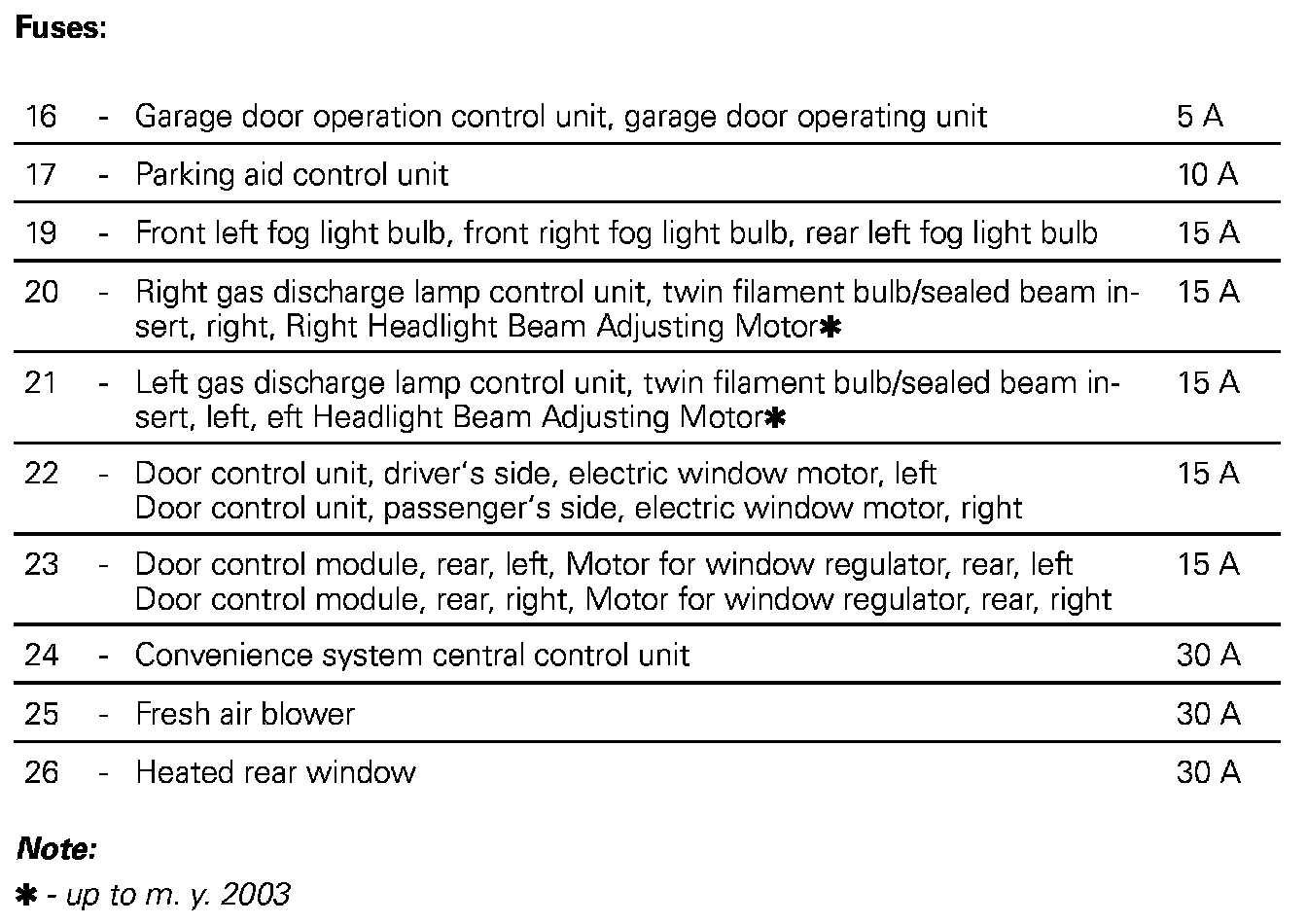

Fuses 16 To 26:

Fuse Box - Fuse Assignments:

Fuse Colors:

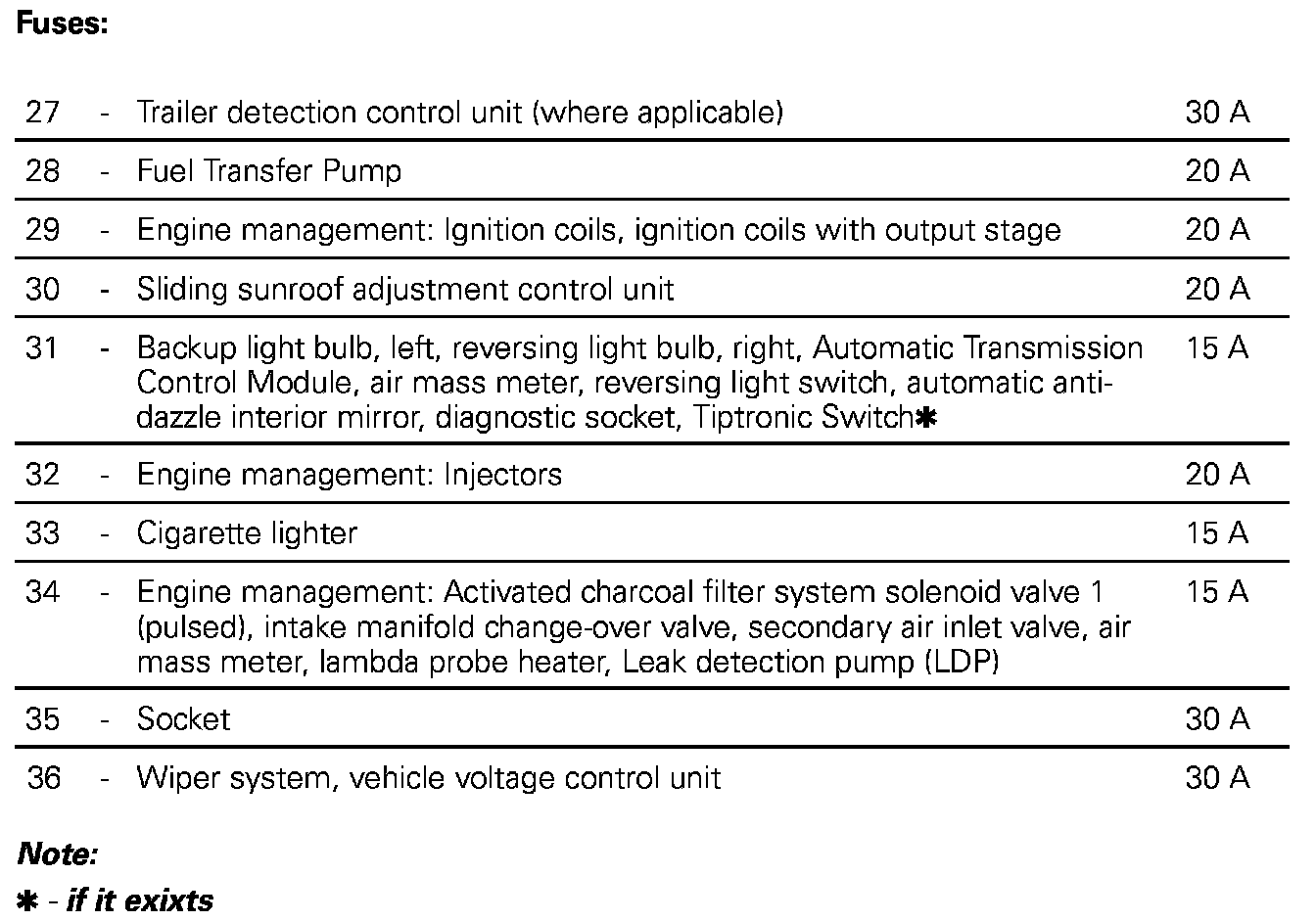

Fuses 27 To 36:

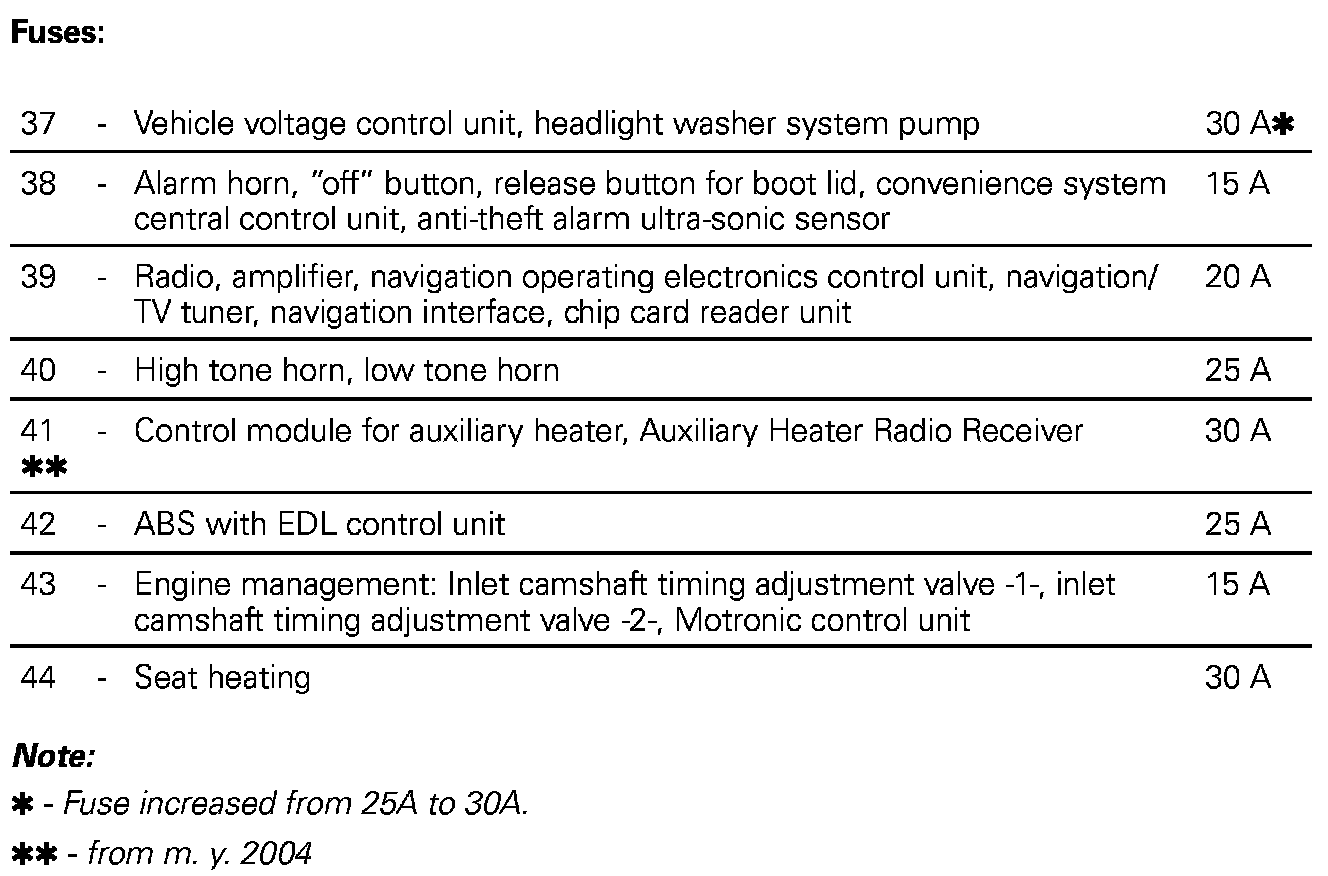

Fuses 37 To 44:
