Clutch Pedal Starter Interlock Switch F194, Removing and Installing

Clutch Pedal Starter Interlock Switch F194, removing and installing, 02X, 6-Speed Four-Wheel Drive M/T

Note:
^ To ensure a secure fit, the clutch pedal starter interlock switch F194 must not be installed more than once.

Removing

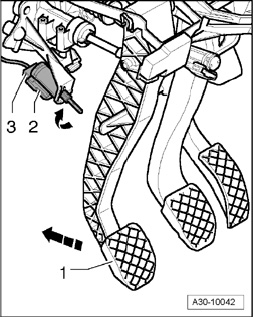

- Remove storage compartment on drivers side.





- Disconnect electrical connector - 3 - on clutch pedal switch.
- Press clutch pedal - 1 - all the way down and hold it in this position.
- At the same time, release clutch pedal starter interlock switch F194 - 2 - by turning it 45° in the direction indicated - arrow - and pull it out of the guide.

Installing

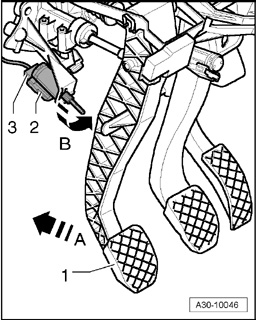

- Pull out operating rod - arrow - all the way before installing clutch pedal switch.





- When installing clutch pedal starter interlock switch F194, press clutch pedal - 1 - all the way down - arrowA -. Hold clutch pedal in this position.
- Guide clutch pedal starter interlock switch F194 - 2 - through opening in retainer, and at the same time push operating rod against clutch pedal and secure switch by turning it 45° in the direction indicated - arrowB -.
- Connect electrical connector - 3 - on clutch pedal starter interlock switch F194.
- Install storage compartment on drivers side.
