Rear/Center Central Locking Switch E286, Removing And Installing

Rear/Center Central Locking Switch E286 , Removing And Installing

Removing
- Remove rear ashtray.

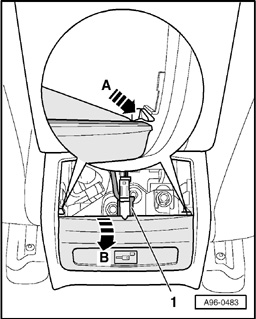

- Press retaining hooks - arrow A - on left and right outwards and swivel switch mounting to rear - arrow B - .
- Disengage switch mounting at center console.
- Disconnect electrical connection.
- Unclip switch - 1 - from switch mounting.

Installing
Install in reverse order of removal.
