Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) G130 and Oxygen Sensor Regulation Behind Catalytic Converter

Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) G130 And Oxygen Sensor Regulation Behind Catalytic Converter, Checking

Special tools, testers and auxiliary items required
- Multimeter V.A.G 1526 or equivalent.
- Test Box 105 Pin VAG1598/42.
- Adapter Lead Vag1598/39 VAG1598/39.
- Adapter cable V.A.G 1598/39-1.

NOTE: When servicing terminals in harness connector of Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) G130 , use only gold-plated terminals.

Test requirements
- Fuse for Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) G130 OK.
- Oxygen Sensor (O2S) 1 (behind Three Way Catalytic Converter (TWC)) Heater Z29 OK, checking.
- Battery voltage at least 12.5 volts.
- All electrical consumers such as, lights and rear window defroster, switched off.
- Vehicles with automatic transmission, selector lever in position "P" or "N".
- A/C switched off.
- Ground (GND) connections between engine/transmission/chassis OK.
- Exhaust system between catalytic converter and cylinder head properly sealed.
- Coolant Temperature at least 80 degrees C.

Function test
- Connect the diagnostic tester.
- Start engine and let it run at idle.
- Select "Diagnostic mode 6: Check test results of components that are not continuously monitored".
- Select "Test-ID 02: Oxygen sensor monitoring behind catalytic converter".
- Select following Test-ID.

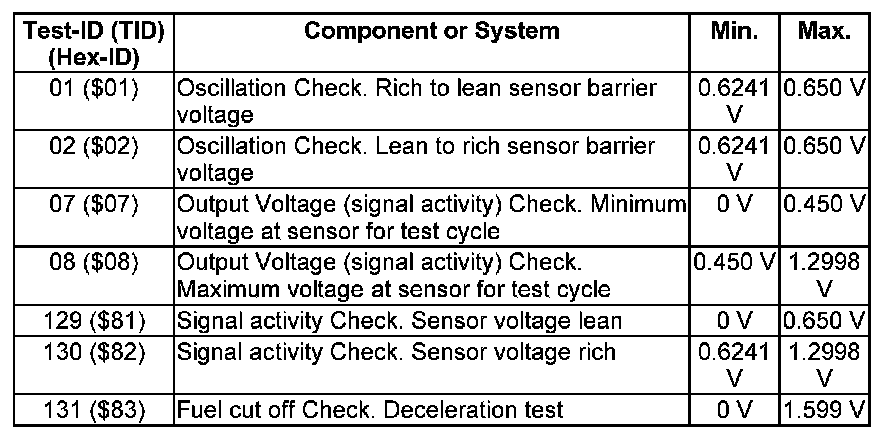

- Check specified values at idle.







If specified values are obtained:
- End diagnosis and switch ignition off.

If specified values are not obtained:
- End diagnosis and let engine continue to run at idle.
- Check primary voltage.

Checking primary voltage







- Disconnect the 4-pin electrical harness connector - 1 - from the Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) G130.







- Using the Multimeter V.A.G 1526 A or equivalent, check the electrical harness connector terminals 3 to 4 for voltage.
Specified value: 0.400 to 0.500 Volts
- Switch ignition off.

If specified value is not obtained:
- Replace Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) G130.

If specified value is obtained:

Testing of oxygen sensor wires
- Connect the Test Box 105 Pin VAG1598/42 to the wiring harness of the Engine Control Module (ECM) J623. The ECM is not connected.







- Using the Test Box 105 Pin VAG1598/42 and Multimeter V.A.G 1526 A or equivalent, check the following wiring connections for an open circuit.

Terminal Test box socket
3 76
4 77

Specified resistance 1.5 Ohms max.

If the specification is not obtained:
- Check the wiring for a short circuit to Battery positive (+) or an open circuit.
- If necessary, repair the wiring connection.

If no malfunctions are found in the wiring:
- Replace the Engine Control Module (ECM) J623.

After repair work, the following work steps must be performed in the following sequence:

Final procedures
1. Check the DTC memory.
2. If necessary, erase the DTC memory.
3. If the DTC memory was erased, generate readiness code.

- End diagnosis and switch ignition off.
