Headlamps With High Intensity Gas Discharge (HID) "Bi-Xenon" Lamps

Front Turn Signal Lamp M5 / M7 - Bulb, Replacing

Removing

CAUTION:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

Left headlamp
- Remove washer fluid reservoir.

Right headlamp
- Lift vehicle.
- Remove right front wheel.

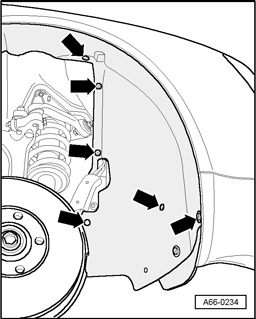

- Remove screws - arrows - .
- Remove forward portion of wheel housing liner.







All models:
- Turn bulb holder - 3 - counter-clockwise - arrow - and pull from housing.
- Screw bulb out of holder.

Installing

Install in reverse order of removal, noting the following:

CAUTION:
- Do not touch glass portion of bulb with bare hands. Even the smallest amount of moisture and/or contaminants from fingers that evaporates on the bulb during operation can cause the glass to cloud over.
- When installing housing cover, ensure proper seating. Water intrusion will damage headlamp.

- Fit new bulb in housing.
- Markings - 1 - and - 2 - must be opposite each other when inserting bulb holder into housing.

Left headlamp
- Install washer fluid reservoir.

Right headlamp
- Install wheel housing liner.
