Rear Lid Lamp/Bulb Carrier, Avant






Rear Lid Lamp/Bulb Carrier, Avant

Removing

- Turn light switch to position "0".

CAUTION!
Switch off all electrical consumers.

Switch ignition off and remove ignition key.

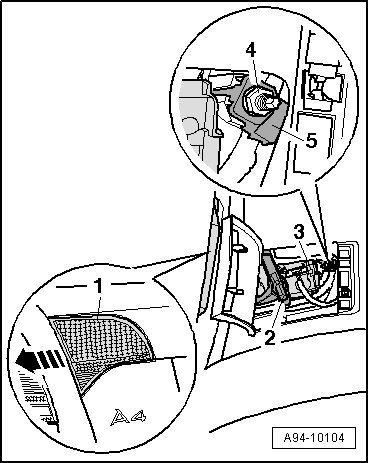

- Unclip plug - 1 - from luggage compartment trim - arrow - using a small screwdriver.





- Remove nut - 2 - and remove retainer bracket and bulb holder - 3 -.





- Remove nut - 4 - and remove inner rear lamp - 1 - from outside in direction of - arrow -.

- Pull the retainer - 5 - out of body opening.

Tightening Specifications
