Air Register: Locations

Air Guides In Vehicle Interior

NOTE:
- The passenger compartment is vented by way of two air extraction vents (on left and right of luggage compartment in area of bumper).

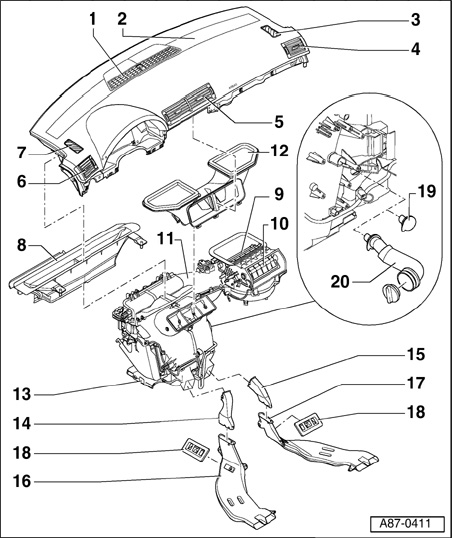

- The following illustration shows a instrument panel of the type installed in a Saloon or Avant up to VIN 399999 in Model Year 2005. The shape of the instrument panel on a Cabrio and for a Saloon or Avant as of VIN 400000 in Model Year 2005 (gradual introduction for the Cabrio in week 46/04 without prior specification of any particular VIN) differs slightly from this illustration.







1 - Defroster outlet vent
- For windshield
- Crushing of intermediate piece between air conditioner and air guide in instrument panel on installing instrument panel will result in irregular or inadequate air routing to windshield.
- Different versions for vehicles up to VIN 399999 and as of VIN 400000 in Model Year 2005 (different versions of Sunlight Photo Sensor G107 for Saloon and Avant; gradual introduction for the Cabrio in week 46/04 without prior specification of any particular VIN)
2 - Instrument panel
- Different versions for Saloon or Avant on vehicles up to VIN 399999 and as of VIN 400000 in Model Year 2005 (Saloon and Avant; gradual introduction for the Cabrio in week 46/04 without prior specification of any particular VIN)
- With air guides to defroster vents and instrument panel vents on "drivers and front passengers side"
3 - Defroster outlet vent
- Passengers side window
4 - Instrument panel vent
- Passengers side
5 - Instrument panel vent
- Center
6 - Instrument panel vent
- Drivers side
7 - Defroster outlet vent
- Drivers side window
8 - Intermediate piece/defroster channel
9 - Fresh-air intake
- Air is drawn in via the dust and pollen filter installed in the plenum chamber
10 - Recirculated-air intake
- Air is drawn in beneath glove compartment from passengers footwell
11 - Air conditioner
- Removing and installing air conditioner
12 - air guide/instrument panel vents
- Center
13 - Front footwell vents
- Drivers and passengers side
15 - Intermediate piece to rear footwell vent air guide
- Drivers side
15 - Intermediate piece to rear footwell vent air guide
- Passengers side
16 - Air footwell vent duct, rear
- Drivers side
17 - Air footwell vent duct, rear
- Passengers side
18 - Trim panel with vent openings
19 - Sealing plug
- Only installed on vehicles without glove compartment cooling
20 - air guide to glove compartment
- Only installed on vehicles with glove compartment cooling
