C-Pillar

Foam-Filled Cavities

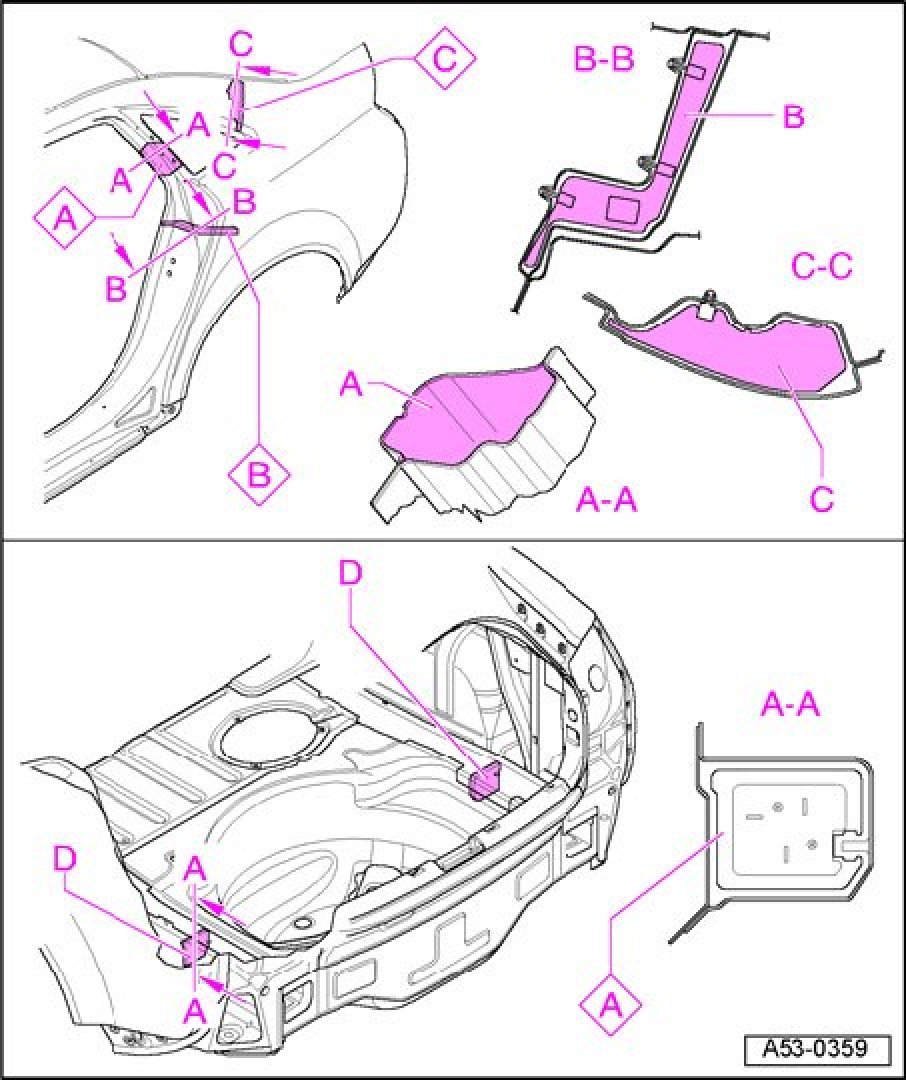

C-pillar







A - Foam-filling hole

B - Expanded foam insert
Can be re-used; secure with two-part component foam.

C - Expanded foam insert
Can be re-used; secure with two-part component foam.

D - Dampening foam
In rear longitudinal member.
