Luggage Compartment Cover - Comes Loose

70 08 21

2015225/2

December 4, 2008.

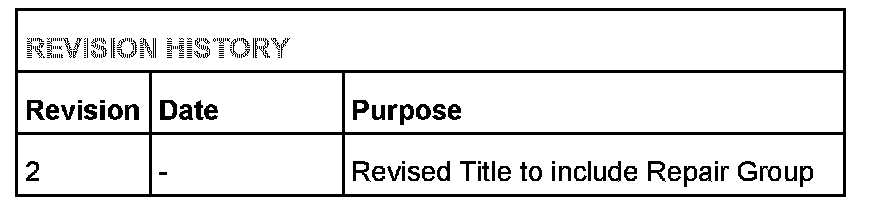

Supersedes Technical Service Bulletin Group 70 number 07-01 dated June 11, 2007 for reasons listed below.

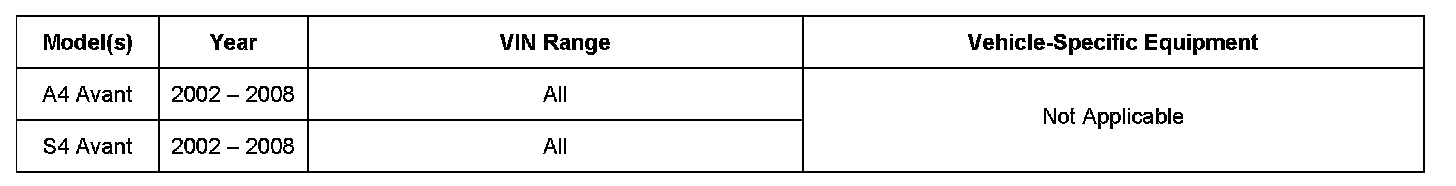

Affected Vehicles

70 Luggage compartment cover comes loose while driving

Condition





The luggage compartment cover comes loose from its extended position while driving on rough roads. It can then fold unintentionally to its retracted position.

Technical Background

The pins of the cover can be jarred loose from the journals in the side trim panels.

Production Solution

No change.

Service

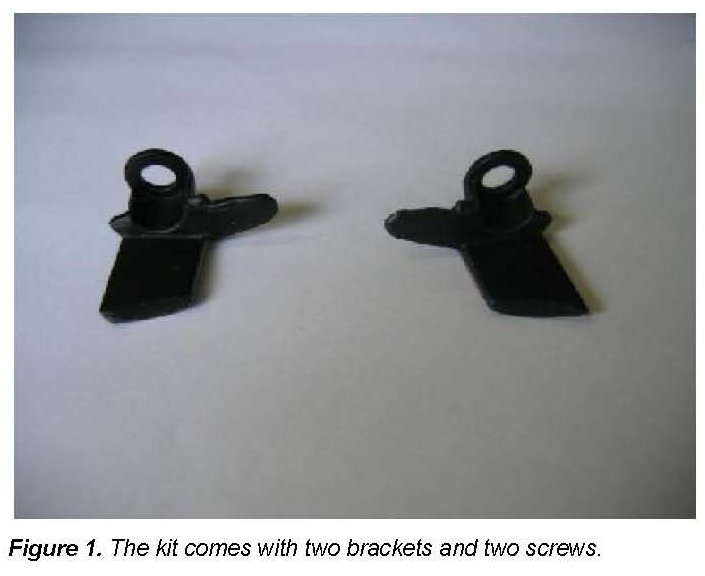

Figure 1:

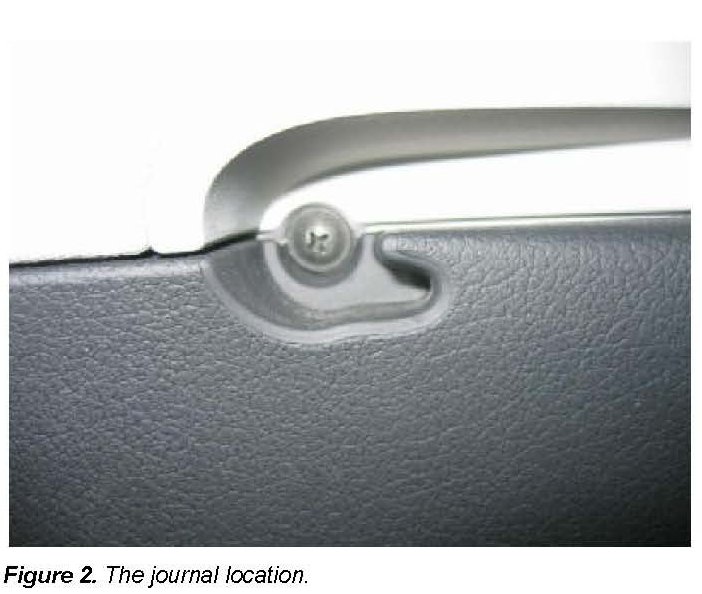

Figure 2:

1. A new bracket kit (8E9 898 661 4PK) must be installed into the journals of the left and right side luggage compartment trim.

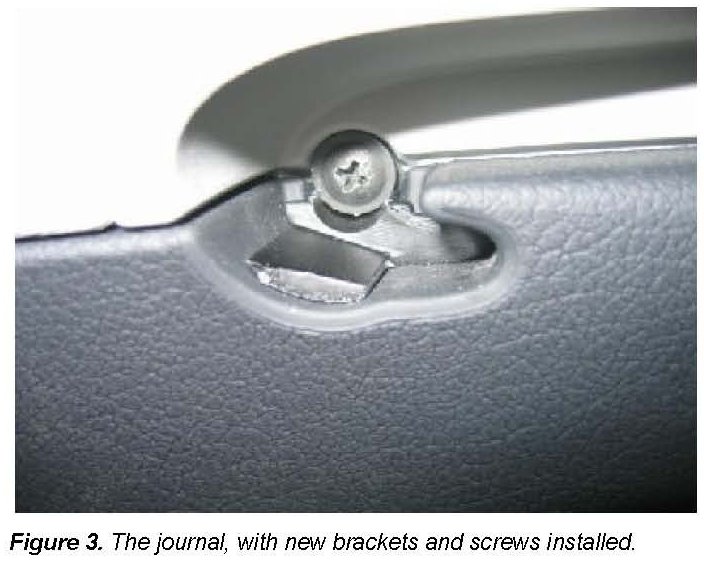

Figure 3:

1. Remove the existing screws and install the brackets using the new screws supplied in the kit (Figure 3).

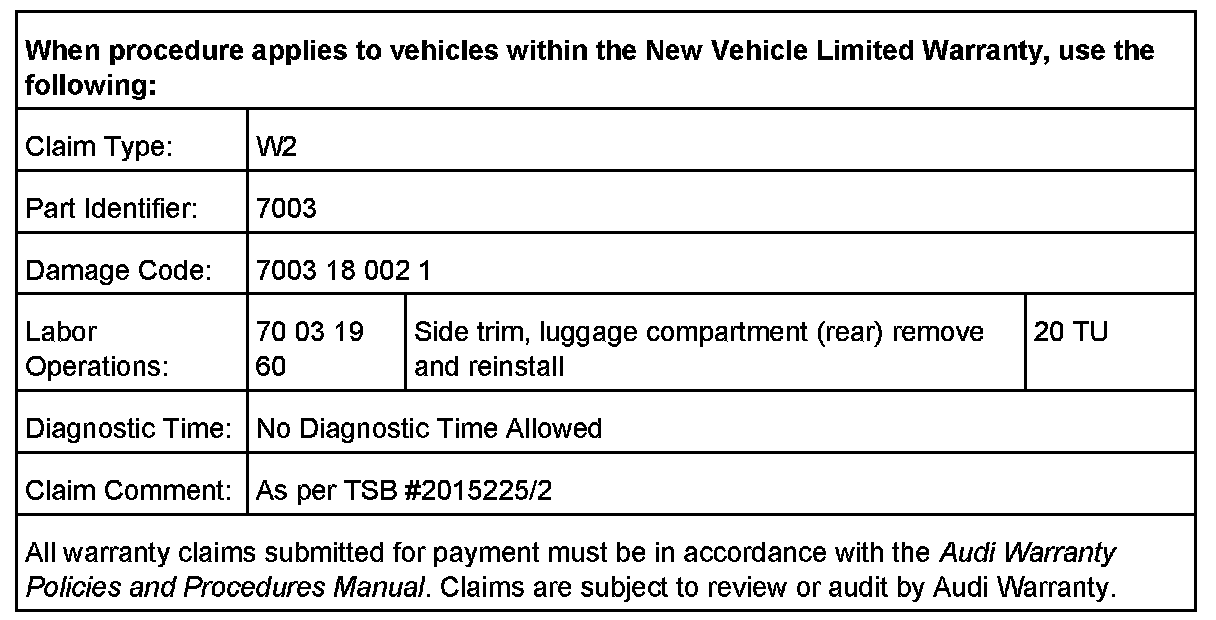

Warranty

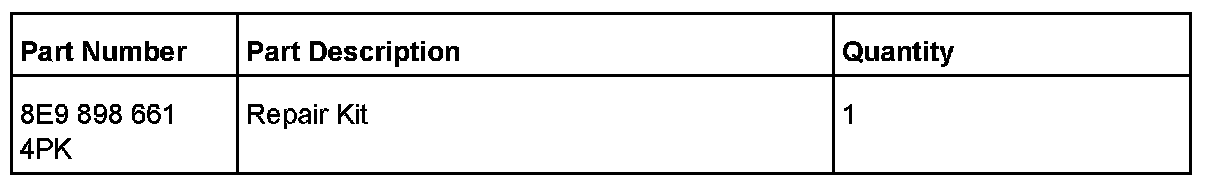

Required Parts and Tools

All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
