Roof Frame Seal Bracket

Roof Frame Seal Bracket

- To remove, open convertible top until center roof frame seal and rear roof frame seat do not touch at rear edges.

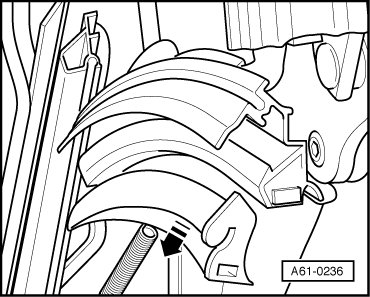

- Remove seal from retaining track in - direction of arrow -.





• When installing, ensure seal is positioned exactly in sealing profile.

• Center roof frame seal, rear roof frame seal and bracket seal are removed in the same way.
