Convertible Top Compartment Trim

Convertible Top Compartment Trim

=> [ Rear Trim ]

=> [ Side Trim ]

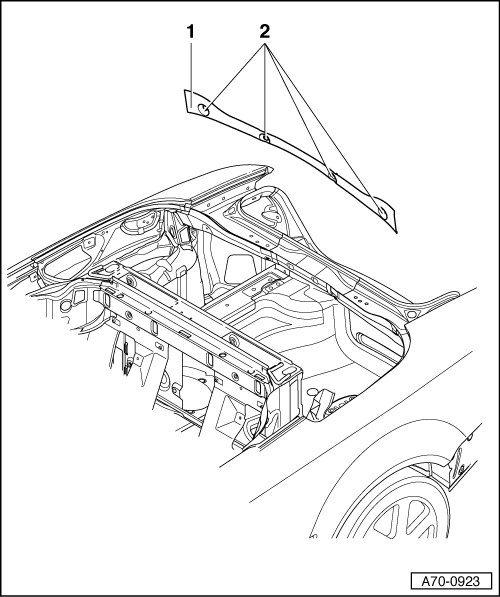

Rear Trim





1 - Rear Trim

• Removing

- Open convertible top.

- Fold the convertible top compartment down.

- Unclip clips - 2 - (Qty. 4).

- Fold the seal away and remove the rear trim - 1 -.

• Installing

- Make sure the seal fits correctly.

- Install the rear trim - 1 - in reverse order of removal.

2 - Clips (Qty. 4)

Side Trim





1 - Side Trim

• Removing

- Open convertible top.

- Fold the convertible top compartment down.

- Remove the clips - 3 - (Qty. 3).

- Remove the rubber stop - 2 -.

- Fold the seal away and remove the side trim - 1 -.

• Installing

• After installing, make sure the seal is correctly pulled over the trim.

•

- Install the side trim - 1 - in reverse order of removal.

2 - Rubber Stop

3 - Clips (Qty. 3)
