Footwell Trim

Footwell Trim

Removing

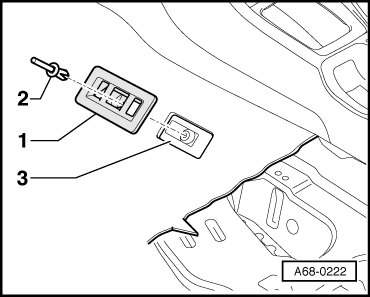

- Insert screwdriver beneath release ring on expanding rivet - 2 -. The lower part of the expanding rivet closes.





- Lever expanding rivet - 2 - from footwell trim - 1 -.

- Remove footwell trim from its mount - 3 -.

Installing

To install, perform the steps used in removal in reverse order.
