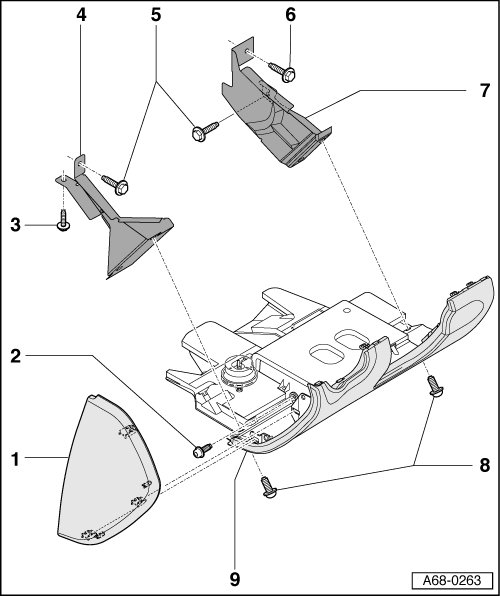

Driver Side Storage Compartment, With and Without Knee Bolster

Driver Side Storage Compartment, with and without Knee Bolster

Special tools, testers and auxiliary items required

• Special hook (3370)





• Torque Wrench (V.A.G 1331)









1 Instrument Panel Cover

2 Bolt

• Tightening specification 9 Nm

3 Bolt

• Tightening specification 9 Nm

4 Left Support

• Only on vehicles with knee bolster

5 Screws (Qty. 2)

• Tightening specification 9 Nm

6 Bolt

• Tightening specification 9 Nm

7 Right Support

• Only on vehicles with knee bolster

8 Screws (Qty. 2)

• Tightening specification 9 Nm

9 Driver Side Storage Compartment

• Removal:

- Remove instrument panel cover - 1 -. Refer to => [ Removing Right Instrument Panel Cover ] Right Instrument Panel Cover.

- Remove bolts - 2 - and - 8 -.

- Pull storage compartment at top of instrument panel back and remove.

- Unclip diagnostic socket.

- Disconnect electrical harness connector at footwell illumination and, if necessary, disconnect additional loudspeaker.

• Installing:

- First engage driver's side storage compartment in guides at lower edge, then clip into top of instrument panel.

Removing Right Instrument Panel Cover





- Pull off right instrument panel cover - arrow - with hook for front end (3370).

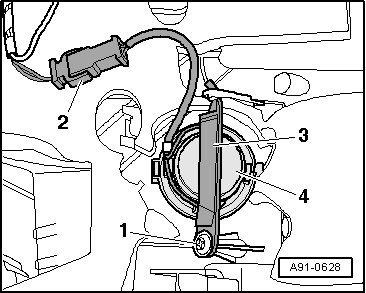

Removing Auxiliary Speaker





- Disconnect electrical connector - 2 -.

- Remove bolt - 1 - and remove angle bracket - 3 - and additional speaker - 4 -.
