Sun Visor, Removing and Installing

Sun Visor, Removing And Installing

Special tools, testers and auxiliary items required







- Torque wrench V.A.G 1783

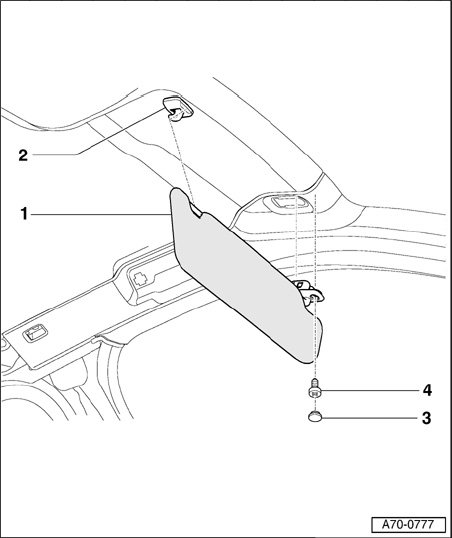

1 - Sun visor

- Removal:
- Disengage sun visor - 1 - in vehicle center from retaining hook -2
- Push sun visor - 1 - to the side.
- Pry out bolt cover - 3 - on sun visor - 1 - and remove bolt - 4 -.
- If present, disconnect make-up mirror lighting connector.
- Remove sun visor - 1 -.

- Installing:
Installation is reverse of removal.

2 - Sun visor center bearing
3 - Bolt cover
4 - Screw
- Tightening torque 4 Nm
- Self-locking
- Replace after each disassembly
- Threaded holes for screws must always be cleaned (for example, with thread cutter)
