Trim, Avant

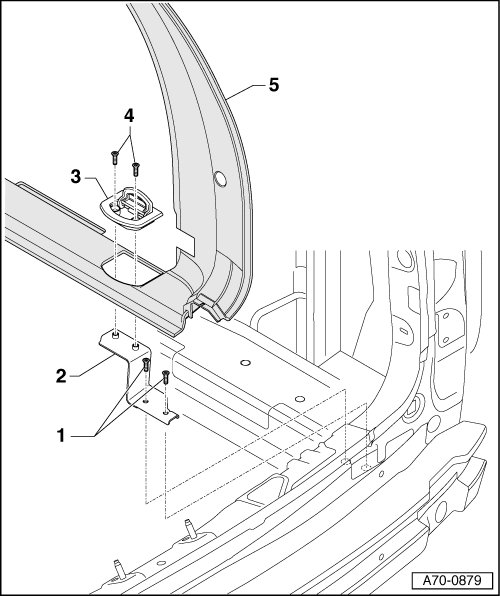

Console Tie-Downs

Special tools, testers and auxiliary items required

• Torque Wrench (V.A.G 1410)









1 Screws, (Qty. 2)

• Tightening specification 4 Nm

2 Console Tie-Downs

• Removal:

- Remove bolts - 4 - (Qty. 4).

- Remove tie-downs - 3 -.

- Remove luggage compartment floor mat - 3 -.

- Remove bolts - 1 - (Qty. 2).

• Installing:

To install, perform the steps used in removal in reverse order.

3 Tie-down

4 Screws, (Qty. 2)

• Tightening specification 4 Nm

5 Luggage compartment floor covering
