Rear Ashtray, Removing and Installing

Rear Ashtray, Removing And Installing







1 - Rear ashtray

- Removal:
- Unclip cover - 2 -.
- Disengage rear ashtray - 1 -.
- If present, unclip seat heating switch mount - 3 -.

- Installing:
Installation is reverse of removal.

2 - Cover
3 - Switch mount
- Removing and installing







Switch mount, removing and installing
- Remove rear ashtray.

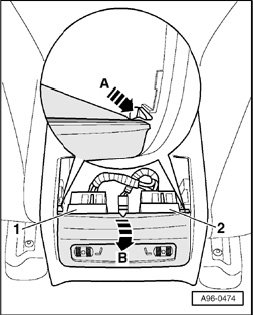

- Press catches - arrow A - on left and right to the outside and swivel switch mount to the rear - arrow B -.
- Disengage switch mount on bottom of rear center console.
- Disconnect electrical connectors.
- Unclip switch - 1 - and - 2 -.
