Front Door Trim

Armrest

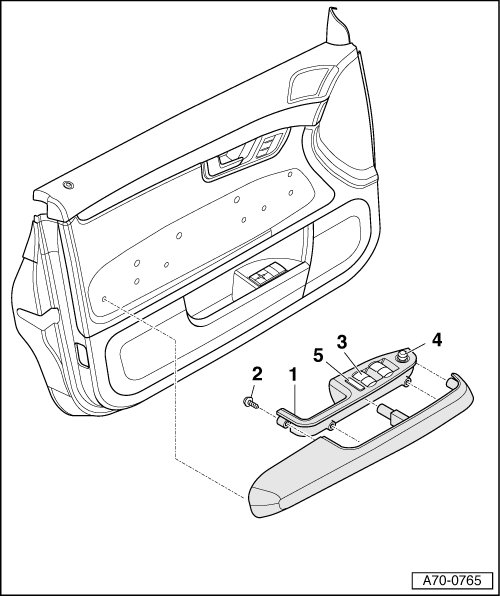

Window Regulator Switch/Mirror Adjustment and Central Locking Switch





1 Armrest

• Removal:

- Remove door trim. Refer to => [ Front Door Trim ] Front Door Trim and => [ Front Door Trim ] Front Door Trim Overview.

- Remove bolts - 2 - (11x).

- Remove armrest - 1 - to side.

• Installing:

To install, perform the steps used in removal in reverse order.

2 Bolt (Qty. 11)

3 Window Regulator Switch

• On vehicles with electrical window regulators:

- Remove window regulator switch. Refer to => [ Power Window Switch ] Power Window Switch.

4 Mirror Adjustment Switch

• Removal:

- Press in tab on connector for mirror adjustment switch - 4 - and remove it.

- Pry off mirror adjustment switch - 4 - using a screwdriver.

• Installing:

To install, perform the steps used in removal in reverse order.

5 Central Locking Switch

• Removal:

- Press in tab on connector for central locking switch - 5 - and remove it.

- Pry off central locking switch - 5 - using a screwdriver.

- Raise door trim - 1 - upward approx. 20 cm out from door shell.

- Disengage Bowden cable for interior door mechanism.

- Disconnect electrical harness connectors.

• Installing:

To install, perform the steps used in removal in reverse order.

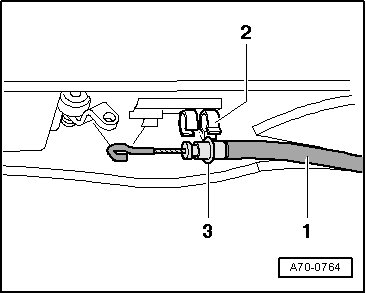

Release, Disengaging





- Remove circlip - 3 -.

- Pull release - 1 - out of guide - 2 - and disengage.

• When installing make sure that catch - 3 - faces upward.

Connector on Window Regulator Control Module





- Press catch - 2 - and remove harness connector - 3 - from control module in direction of arrow.

- Disconnect connector to bass speaker.
