Rear Lid Handle Mechanism, Avant

Rear Lid Handle Mechanism, Avant

Removing

- Remove lock cylinder for rear lid => [ Rear Lid Lock Cylinder, Avant ] Service and Repair.

- Disconnect inner electrical harness connector at grip piece.

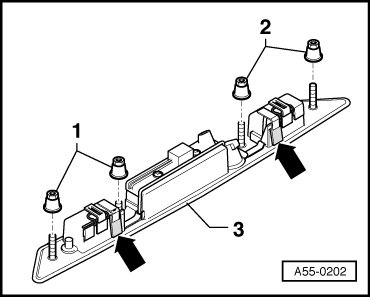

- Remove nuts (Qty. 4)- 1 - and - 2 - (different versions; mark for re-installation).





- Tightening torque: 8 Nm

- Press both catches - arrows - down and remove grip piece - 3 -.

Installing

Installation is performed in the reverse order of removal.
