Liftgate Window Glass: Service and Repair

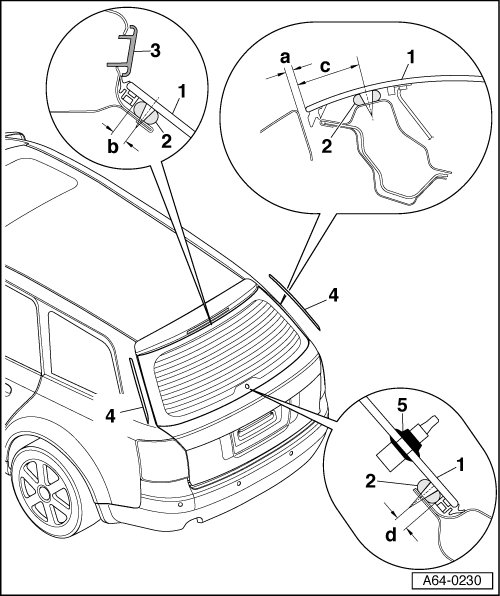

Rear Window Assembly Overview, Avant

• The printed gap covers on window edges have been discontinued in vehicles as of Vehicle Identification Number (VIN) 400 001.

• New windows without gap covers can be installed retroactively in older vehicles.





1 - Rear window

• Dimension - a - even out when installing.

2 - Adhesive bead

• Observe curing times => [ Minimum Curing Times ] Minimum Curing Times

• Note varying spacing dimensions to window edge.

• Dimension - b - = 6 mm

• Dimension - c - = 38 mm

• Dimension - d - = 6 mm

• Bead width = 8 +2 mm

• Bead height = 13.5 +1.5 mm

3 - High-mount brake light

• Removed before removing rear window=> Lighting and Horns Lighting and Horns

4 - Sealing strips

• Pull off before removing rear window.

5 - Seal for rear window wiper

CAUTION!
When installing window, the axle of windshield wiper motor must be centered on grommet, otherwise there will be leaks.
