Bose, Avant

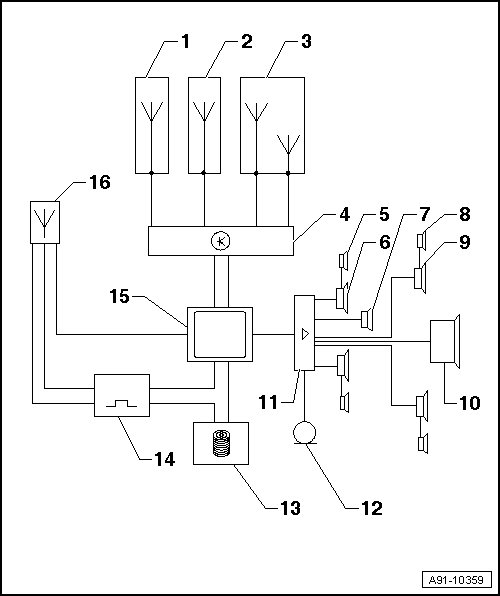

RNS-E Navigation System Overview
Bose, Avant
1 right rear FM3 window antennas
2 FM2 rear window antennas
3 left rear AM/FM1 window antennas
4 Left Antenna Module (R108) behind luggage compartment left side trim
5 Left Front Midrange Speaker (R26)/Right Front Midrange Speaker (R27) at top in front doors
6 Left Front Bass Speaker (R21)/Right Front Bass Speaker (R23) in front doors
7 Inside Loudspeaker (R70) in front center instrument panel
8 Left Rear Midrange Speaker (R34)/Right Rear Midrange Speaker (R35) at top in rear doors
9 Left Rear Bass Speaker (R15)/ Right Rear Bass Speaker (R17) at bottom in rear doors
10 Bass Loudspeaker (R100) behind luggage compartment right side trim
11 Amplifier (R12) behind luggage compartment right side trim
12 Inside Microphone (R74) in Front Interior Light (W1)
13 CD Changer (R41)/iPod Baseplate (R192) in glove compartment
14 Satellite Radio (R146) behind left luggage compartment side trim
15 Navigation System with CD Drive Control Module ( J401) in top of center console
16 Radio, Telephone, Navigation System Antenna ( R52) (Ter/Sat/GPS/GSM) roof antenna
