09L, 6 Speed AWD A/T

Locking cable, adjusting - 09L, 6 Speed AWD A/T

Special tools, testers and auxiliary items required





^ Adjustment pin for shift lock 3 3352 A
^ Angle grinder
^ Safety goggles





Preparation

Note: If the procedure described below is followed the center console does not have to be removed.

- Using an angle grinder or similar, cut off Adjustment pin for shift lock 3 3352 A at rear end of flat section - arrow -.

CAUTION! Wear safety goggles.

- Order a new Adjustment pin for shift lock 3 3352 A as a replacement for subsequent use.

Requirements for adjustment
^ Locking cable must be in installation position.
^ Selector lever is in position "P"
^ Ignition key is in removal position.

Procedure
- Remove trim panel from center console.

Note: The selector lever handle and cover can remain installed.

- Remove ashtray from center console.





- Loosen bolt - 1 -.

^ It should be possible to move support bracket - 2 - for locking cable by hand.
- Insert modified Adjustment pin for shift lock 3 3352 A between pin on locking cable lever and locking cable eye.
- Pull locking cable in direction of - arrow - as far as it will go and tighten bolt.
^ In this position it should be easy to removed insert Adjustment pin for shift lock 3 3352 A.
- Remove adjustment gauge.
- Install ashtray in center console.
- Always test ignition key removal lock after adjusting locking cable.

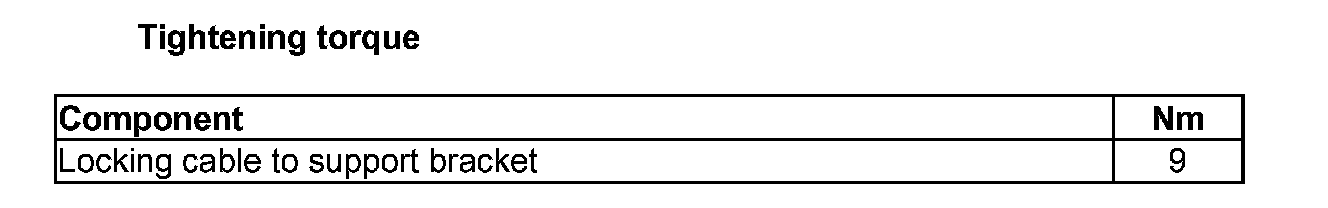

Tightening Torque:
