Front Door Window Weatherstrips, Standard Package






Front Door Window Weatherstrips, Standard Package

- Remove door trim

- Remove window frame and window regulator => [ Window Frame and Regulator ] Window Frame and Regulator.

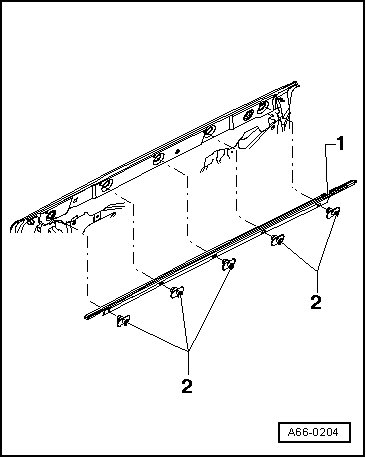

- Remove clips - 2 -.





- Remove window shaft strip - 1 -.

- Installation is performed in the reverse order of removal.
