Table of Adjustments

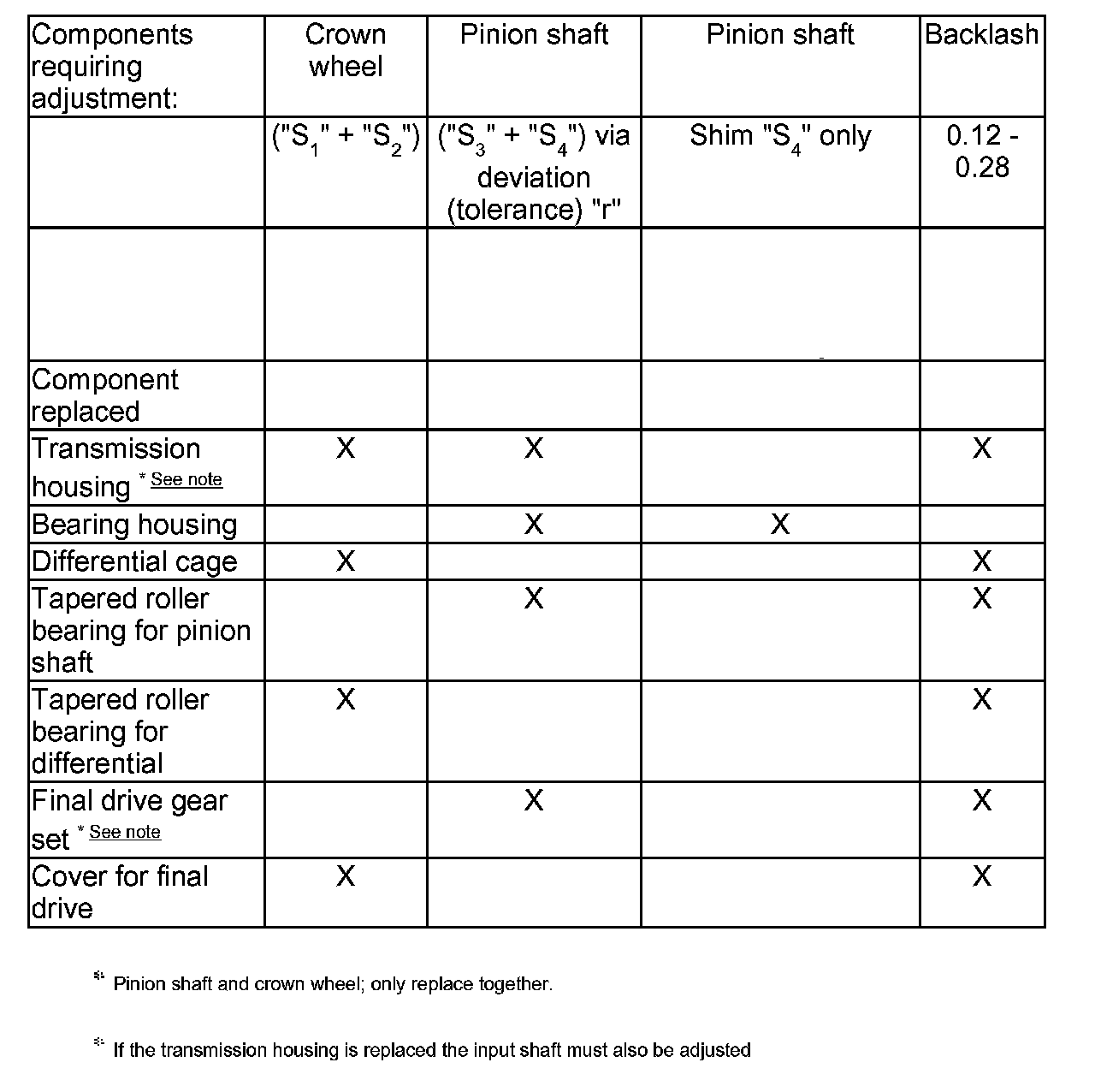

Table of adjustments, 01X, 6-Speed Front-wheel Drive M/T

Note:
^ If repairs have been perform to the transmission, it is only necessary to adjust the pinion shaft, crown wheel or final drive set if components have been replaced which have a direct effect on the adjustment of the final drive. Refer to the following table to avoid unnecessary adjustment work.
