Position of Shims

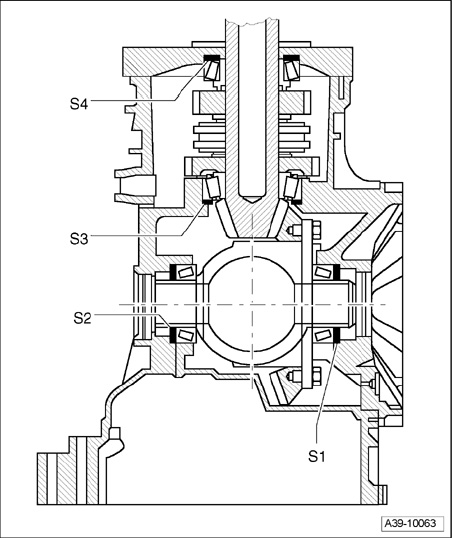

Position of shims, 01X, 6-Speed Front-wheel Drive M/T

Note:
^ Table of adjustments when replacing individual components of final drive.





S1 - Shim for crown wheel in cover for final drive

S2 - Adjustment shim for crown wheel in transmission housing

S3 - Adjustment shim for pinion shaft in transmission housing

S4 - Shim for pinion shaft in bearing housing
