Final Drive Gear Set, Adjustment and Marking
Final drive gear set, adjustment and marking, 01X, 6-Speed Front-wheel Drive M/T

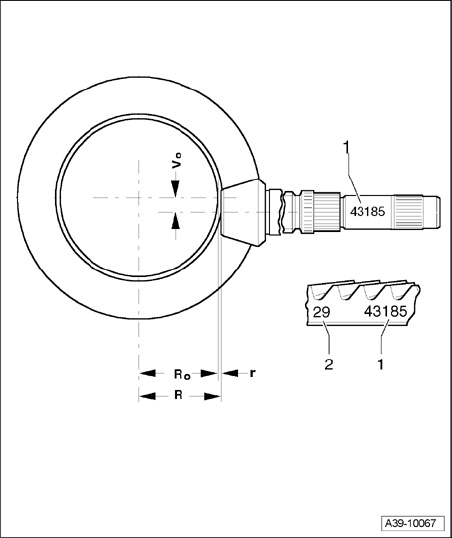

1 - "43185" number of matched pair of gears
2 - Deviation (tolerance) "r" is based on the master gauge used on the test machine in production. The dimension "r" is Always given in 1/100 mm. For example: "29" indicates r 0.29 mm
Ro - Length of test machine master gauge
Ro - Crown wheel diameter 188 mm = 59.65 mm
R - Actual distance between crown wheel axis and face of pinion shaft in position of quietest running for this gear set.
Vo - Hypoid offset
