Adjusting Gear Set, Recommended Sequence

Adjusting gear set, recommended sequence, 01X, 6-Speed Front-wheel Drive M/T





The following work sequence is recommended to save time when crown wheel and pinion shaft have to be adjusted:

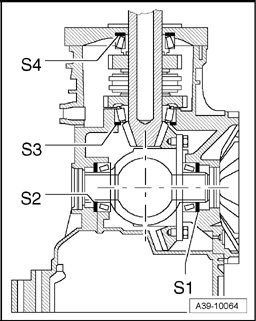

^ Determine total shim thickness "S total" (S3 Plus S4) for the specified preload on pinion shaft tapered roller bearings.
^ Distribute total shim thickness "S total" (S3 Plus S4) so that dimension from center of crown wheel to end face of pinion shaft corresponds to installation dimension "R" determined during production.
^ Determine total shim thickness "S total" (S1 Plus S2) for the specified preload on differential tapered roller bearings.
^ Distribute total shim thickness "S total" (S1 Plus S2) so that the specified backlash between crown wheel and pinion shaft is obtained.
