Transmission, Overview

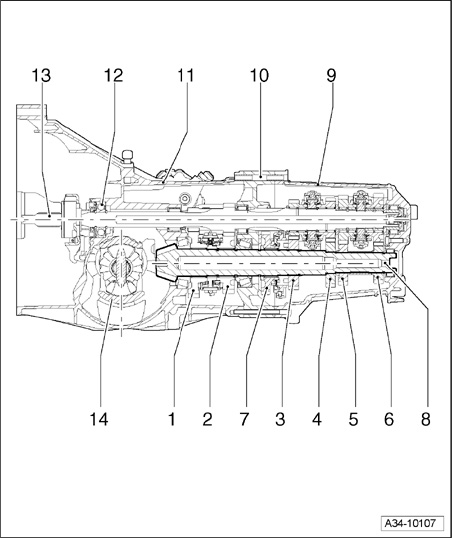

Transmission, overview, 01X, 6-Speed Front-wheel Drive M/T

1 - 1st gear

2 - 2nd gear

3 - 3rd gear

4 - 4th gear

5 - 5th gear

6 - 6th gear

7 - Reverse gear

8 - Pinion shaft (output shaft)

9 - Transmission cover

10 - Bearing housing

11 - Transmission housing

12 - Ball bearing
^ For input shaft

13 - Input shaft (main shaft)

14 - Differential
