Input Shaft, Output Shaft, Reverse Gear Wheel and Reverse Selector Gear, Assembly Overview, Removing and Installing

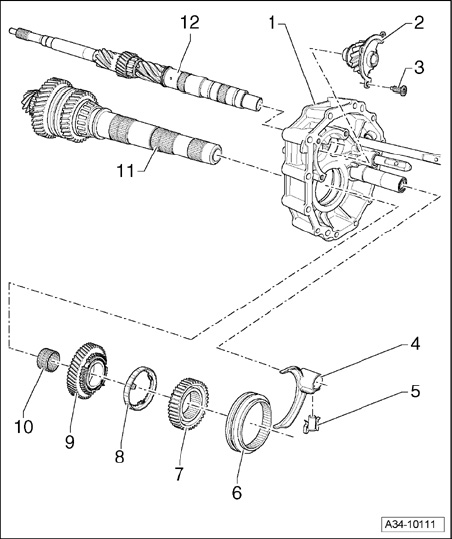

Input shaft, output shaft, reverse gear wheel and reverse selector gear, assembly overview, removing and installing, 01X, 6-Speed Front-wheel Drive M/T





1 - Bearing housing

2 - Reverse gear wheel
^ With support for reverse shaft
^ Assembly overview - reverse gearwheel

3 - Bolt, 30 Nm
^ 3 (Qty.)

4 - Reverse gear selector fork

5 - Pin with clip
^ For securing reverse gear selector fork to selector rod

6 - Reverse gear locking collar
^ Mark position in relation to synchronizing hub prior to removing
^ Installation position: taper faces reverse gear synchro-ring

7 - Reverse gear synchronizing hub
^ Installation position: high inside collar faces 3rd gearwheel

8 - Synchronizing ring for reverse gear
^ Checking for wear

9 - Reverse selector gear
^ Insert spring before installing
^ Check axial clearance after installing using feeler gauge (0.20 to 0.50 mm)

10 - Needle bearing
^ For reverse gear

11 - Pinion shaft (output shaft)
^ With tapered roller bearing and selector gears for 1st and 2nd speed

12 - Input shaft





Assembly overview - reverse gear wheel
1. Thrust washer
2. Needle bearing
3. Reverse gear wheel

Installation position: collar points toward bearing housing

4 - Reverse shaft support
