Assembly Overview

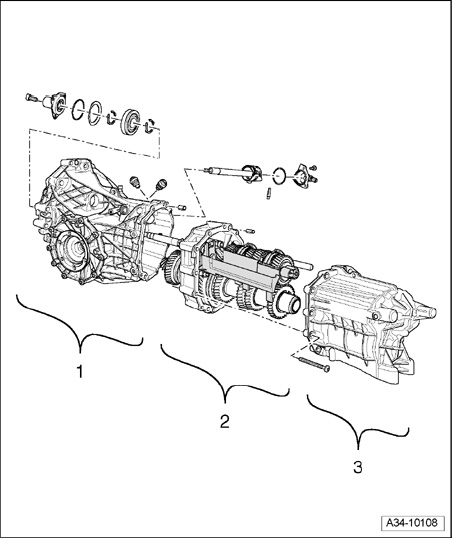

Assembly overview, 01X, 6-Speed Front-wheel Drive M/T





1 - Transmission housing with differential, ball bearing for input shaft and selector shaft

2 - Bearing housing with gear assembly

3 - Transmission cover
