Vehicles From VIN 8E 6A156500

Shift Mechanism Cover

Removing

- Remove the selector lever handle. Refer to => [ Selector Lever Handle ] Selector Lever Handle.

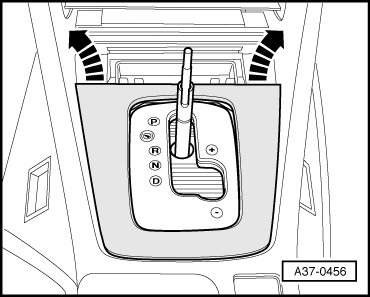

- Open the ashtray in the center console and remove - arrows - the trim panel.





- Remove the 2 retaining bolts for the ashtray and lift the ashtray at the rear.

- Release all 4 clips - arrows - and pull the cover - 1 - with guide upwards to remove.





- Disconnect the connector from the side of the guide plate.

Installing

Installation is in the reverse order of removal, note the following:

- Install the selector lever handle. Refer to => [ Selector Lever Handle ] Selector Lever Handle.
