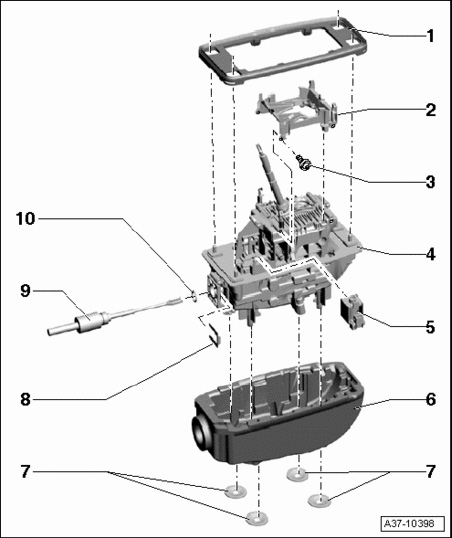

Shift Mechanism (From VIN 8E_6A156500), Assembly Overview

Shift mechanism (from VIN 8E_6A156500), assembly overview - 01J, Continuously Variable Transmission (CVT)

Note:
^ Lubricate bearing areas and slide surfaces with polycarbamide grease G 052 142 A2.





1- Rubber seal

2- Press tube

3- Bolt, 2 Nm
^ Qty. 4

4- Selector mechanism function unit

5- Shift lock solenoid N110

6- Noise insulation
^ Not installed on all vehicles

7- Lock washers
^ Qty. 4, always replace
^ For securing sound insulation on selector mechanism function unit

8- Retaining clip
^ Secures selector lever cable on selector mechanism function unit

9- Selector lever cable

10- O-Ring
^ Always replace
