01J, Continuously Variable Transmission (CVT)

Shift mechanism (through VIN 8E_6A156499), disassembling and assembling - 01J, Continuously Variable Transmission (CVT)

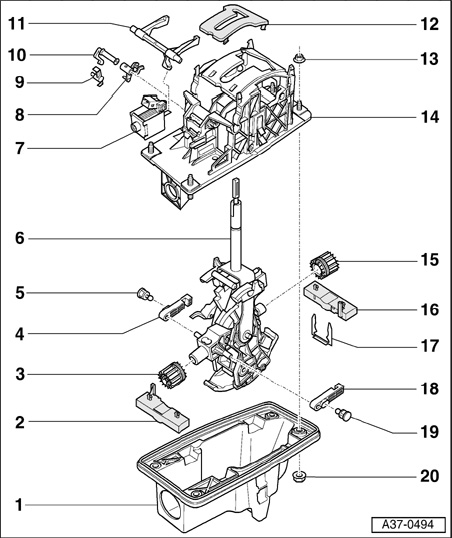

Disassembling

Note:
^ Securing spring for locking cable, removing and installing





6- Selector lever
- Place selector lever in position "D".
- Remove shift lock solenoid -7-.
- Unclip selector lever guide -12-.
- Release pivot pins -5- and -19- and pull them out from side.
- Unclip retaining brackets -2- and -16-.
- Pull off retaining clip -17-.
- Swing locking lever -11- fully upwards.
- Pull selector lever -6- with bushings -3- and -15- as well as Tiptronic locking levers -4- and -18- downward out of shift unit -14-.

Assembling

6- Selector lever
- Check whether selector lever is in position "D".
- Swing locking lever -11- fully upwards.
- Insert selector lever -6- from below into shift unit -14-.
- Connect locking levers for Tiptronic -4- and -18- as well as bushings -3- and -15- on selector lever.
- Press selector lever -6- with bushes into shift unit and position it with retaining clip -17-.
- Engage retaining brackets -2- and -16- on shift unit.
- Push pivot pins -5- and -19- into selector lever -6- until they engage.
- Check whether mounting pins in Tiptronic locking lever engage.
- Install shift lock solenoid -7-.
- Clip in selector lever guide -12-.





Retaining spring for locking cable, removing and installing

Removing
- To remove locking cable, slightly lift spring at top -arrow B-.
- Unhook spring at retaining tab -arrow C- and remove toward top.

Installing
- Insert spring -arrow B- from top and hook in at retaining clip -arrow C-.
- Align spring so that it is seated evenly in groove -arrow A-.
