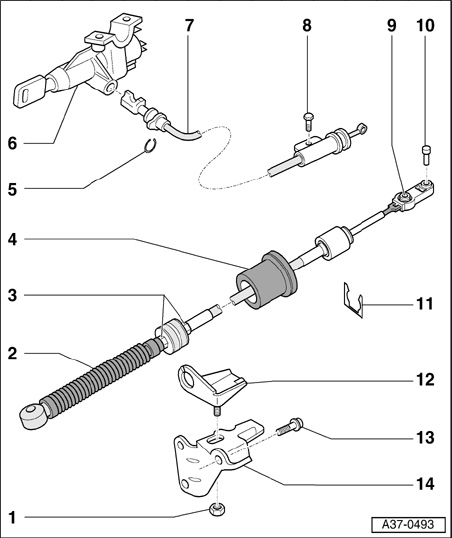

Selector Lever Cable and Locking Cable (Through VIN 8E_6A156499), Assembly Overview

Selector lever cable and locking cable (through VIN 8E_6A156499), assembly overview - 01J, Continuously Variable Transmission (CVT)

Note:
^ Do not bend or kink the selector lever cable.
^ Lightly grease eyelet and ball socket with polycarbamide grease G 052 142 A2 before installing.





1- Nut
^ 23 Nm

2- Selector lever cable
^ Do not bend or kink, lightly grease cable eye and ball socket before installing.
^ In case of damaged rubber boots, selector lever cable must be replaced
^ When installing, make sure that rubber sleeve on transmission side is not twisted

3- Lock nuts
^ 13 Nm

4- Boot for selector lever cable
^ To be buttoned into selector mechanism bottom cover

5- Retaining clip

6- Ignition/starter switch
^ with ignition key removal lock

7- Locking cable
^ For ignition key removal lock
^ Not to be kinked

8- Bolt
^ 9 Nm

9- Clamping screw
^ 13 Nm
^ For selector lever cable
^ Loosen 1 turn for adjusting, do NOT remove completely

10- Pin
^ For selector lever cable
^ To remove selector lever cable, move plastic retaining spring at selector mechanism forward slightly and put screws upward, only as far as necessary.

11- Retaining clip for selector lever cable

12- Bracket for selector lever cable

13- Bolt
^ 23 Nm

14- Bracket for selector lever cable
