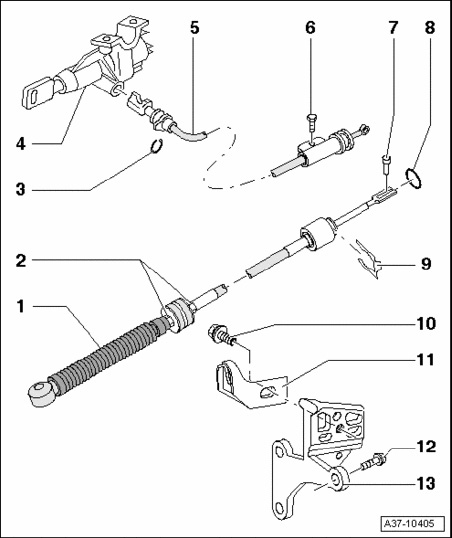

Selector Lever Cable and Locking Cable (From VIN 8E_6A156500), Assembly Overview

Selector lever cable and locking cable (from VIN 8E_6A156500), assembly overview - 01J, Continuously Variable Transmission (CVT)

Note:
^ Do not bend or kink selector lever cable.
^ Lightly grease eyelet and ball socket with polycarbamide grease G 052 142 A2 before installing.





1- Selector lever cable
^ Do not bend or kink, lightly grease cable eye and ball socket before installing.
^ In case of damaged rubber boots, selector lever cable must be replaced
^ When installing, make sure that rubber sleeve on transmission side is not twisted

2- Lock nuts
^ 13 Nm

3- Retaining clip

4- Ignition/starter switch
^ With ignition key removal lock

5- Locking cable
^ For ignition key removal lock
^ Not to be kinked
^ 9 Nm

7- Clamping screw
^ 13 Nm
^ For selector lever cable
^ Loosen 1 turn for adjusting, do NOT remove completely

8- O-Ring
^ Always replace

9- Retaining clip for selector lever cable

10- Bolt
^ 20 Nm
^ For securing bracket to selector lever cable bracket

11- Bracket for selector lever cable
^ Different equipment depending on version

12- Bolt
^ 20 Nm
^ Qty. 3
^ For securing selector lever cable bracket to transmission

13- Bracket for selector lever cable
^ Different equipment depending on version
