Selector Shaft Seal, Replacing

Selector shaft seal, replacing - 01J, Continuously Variable Transmission (CVT)

Special tools, testers and auxiliary items required





^ Tube VW 418 A

Work procedure
^ Transmission removed.





- Remove bolt - B - completely and remove lever for selector shaft - A - upward.
- Carefully pry selector shaft seal lying below out with screwdriver.

Note:
^ Sealing surface and selector shaft must not be damaged.

- Coat outer circumference of new shaft seal with ATF.
- Slide on new shaft seal over selector shaft and press in.
- Drive in shaft seal until it stops using tube VW 418 A.
- Connect lever for selector shaft - A - to selector shaft and tighten bolt - B -.

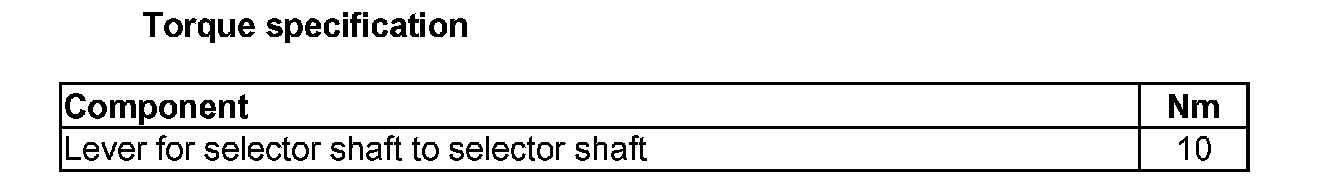

Torque Specification:
