Selector Shaft Oil Seal, Replacing

Selector shaft oil seal, replacing - 01J, Continuously Variable Transmission (CVT)

Special tools, testers and auxiliary items required





^ Tube VW 418 A

Work procedure
^ Transmission removed.





- Remove bolt -B- completely and remove lever for selector shaft -A- upward.

- Carefully pry out sealing ring for selector shaft lying underneath using a screwdriver.

Note:
^ Sealing surface and selector shaft must not be damaged.

- Coat outer circumference of new sealing ring with ATF.

- Slide on new sealing ring over selector shaft and press in.

- Drive in sealing ring until it stops using tube 31.5 mm dia. VW 418 A.

- Connect lever for selector shaft -A- to selector shaft and tighten bolt -B-.

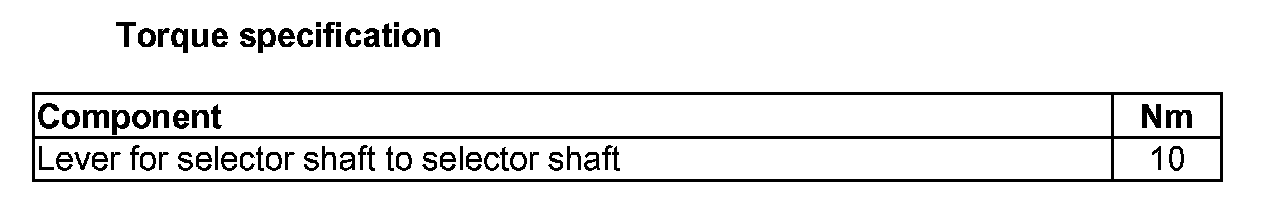

Torque Specification:
