Sealing Ring For Right Flange Shaft and Grooved Ball Bearing, Replacing

Sealing ring for right flange shaft and grooved ball bearing, replacing - 01J, Continuously Variable Transmission (CVT)

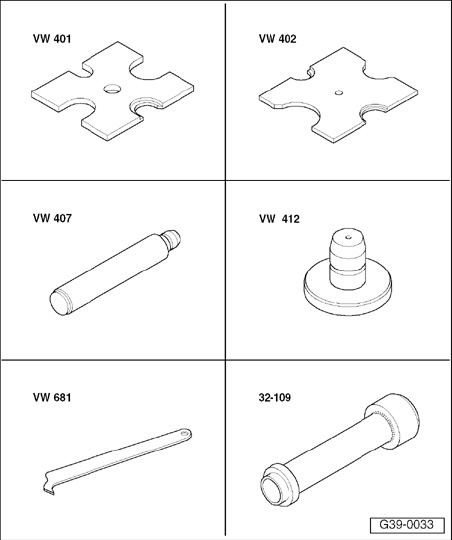

Special tools, testers and auxiliary items required
^ Pressure plate VW 401
^ Pressure plate VW 402
^ Punch VW 407
^ Punch VW 412
^ Extractor lever VW 681
^ Driving sleeve 32-109

Special tools, testers and auxiliary items required





^ Tube 2040





^ Driver 2062

Work procedure
- Remove right flange shaft.

Seal, removing





- Remove securing ring -arrow A- for grooved ball bearing.

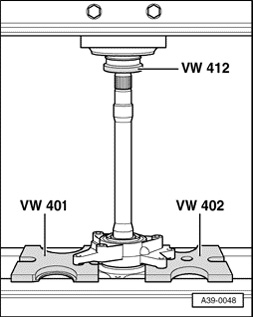

- Press flange shaft out of mounting bracket for flange shaft as shown in the illustration.

- Pull sealing ring for flange shaft out of mounting bracket using extractor lever VW 681.

Removing grooved ball bearing

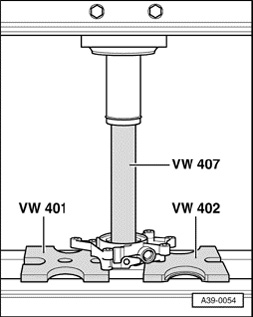

- Press grooved ball bearing out of mounting bracket.





Installing grooved ball bearing

Sealing ring, installing





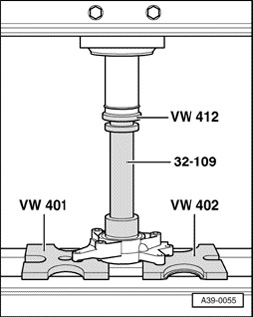

- Press new grooved ball bearing into mounting bracket.

- Coat outer edge and sealing lip of oil seal with axle oil.

^ Installation position: The open side of the sealing ring faces the transmission.

- Drive in new sealing ring for right flange shaft uniformly using driver 2062 5.5 mm below surface of mounting bracket, do not cant when doing so.

Note:
^ If reinstalling an old flange shaft, the seal must be driven in approx. 6.5 mm so that the new seal does not sit on the running surface of the old seal.

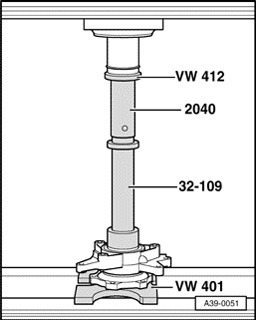

- Press mounting bracket with grooved ball bearing onto flange shaft.





- Insert securing ring -arrow A-.

- Install right flange shaft.

- Check gear oil level in front final drive.
