Right Flange Shaft Seal and Grooved Ball Bearing, Replacing

Right flange shaft seal and grooved ball bearing, replacing - 01J, Continuously Variable Transmission (CVT)

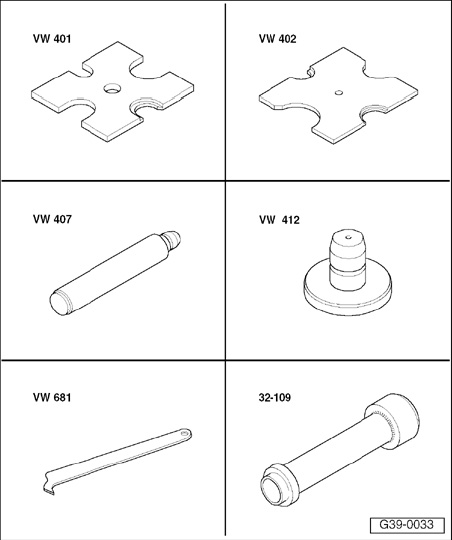

Special tools, testers and auxiliary items required
^ Pressure plate VW 401
^ Pressure plate VW 402
^ Punch VW 407
^ Punch VW 412
^ Extractor lever VW 681
^ Driving sleeve 32 - 109

Special tools, testers and auxiliary items required





^ Tube 2040





^ Driver 2062





Work procedure
- Remove right flange shaft.

Removing shaft seal
- Remove securing ring -arrow A- for grooved ball bearing.

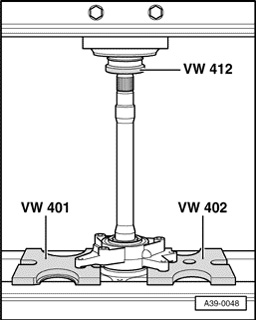

- Press flange shaft out of mounting bracket for flange shaft as shown in the illustration.

- Pull flange shaft seal out of mounting bracket using Extractor lever VW 681.





Removing grooved ball bearing

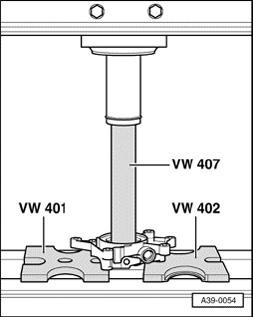

- Press grooved ball bearing out of mounting bracket.





Installing grooved ball bearing

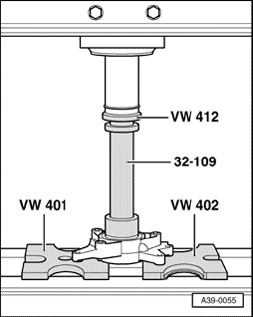

- Press new grooved ball bearing into mounting bracket.





Installing shaft seal
- Coat outer edge and sealing lip of shaft seal with axle oil.

^ Installation position: Open side of shaft seal faces transmission.

- Drive in new right flange shaft seal uniformly with Driver 2062.

^ Production drive-in depth 5.5 mm below mounting bracket surface.

^ If re-using the used flange shaft, repair drive-in depth is 6.5 mm.

Note:
^ Do not angle shaft seal when driving in.





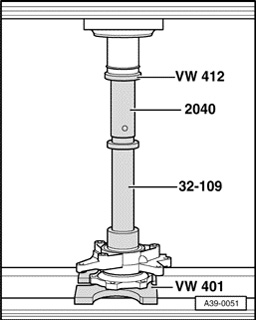

- Press mounting bracket with grooved ball bearing onto flange shaft.





- Insert securing ring -arrow A-.

- Install right flange shaft.

- Check gear oil level in front final drive.
