Internal Components

ATF breather pipe, removing and installing - 01J, Continuously Variable Transmission (CVT)

If ATF flows out at underside of transmission bell housing, input shaft seal and/or ATF breather pipe may be leaking. Before replacing any parts, be sure to find actual cause of malfunction.

^ Input shaft seal must be replaced if leaking.
^ ATF breather pipe must be replaced if leaking.

Removing

Note:
^ Observe general repair notes.
^ Refer to Rules of cleanliness for working on automatic transmissions.

^ Transmission removed

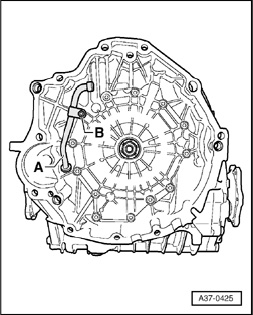

- Remove bolt - B -.
- Pull ATF breather pipe - A - out of mount.

Installing
Installation in reverse order of removal, note the following:
- Insert new ATF breather pipe - A - until it reaches stop.
- Tighten ATF breather pipe with strap and bolt - B - on transmission housing.

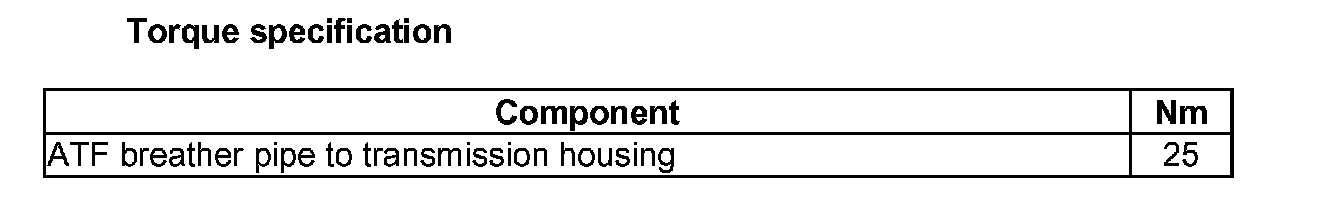

Torque Specification:
