ATF breather pipe, removing and installing - 01J, Continuously Variable Transmission (CVT)

Removing

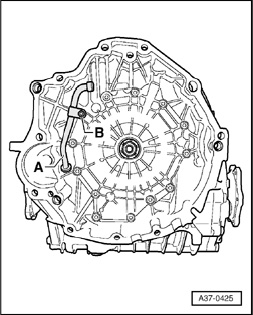

^ Transmission removed.





- Remove bolt -B-.
- Pull ATF breather pipe -A- out of mount.

Note:
^ If ATF leak is determined from check hole behind ATF breather pipe -A-, slightly below bolt -B-, transmission is malfunctioning and must be replaced.

Installing
Installation is in reverse order of removal, note the following:
- Insert new ATF breather pipe -A- until it reaches stop.
- Tighten ATF breather pipe with strap and bolt -B- on transmission housing.

Torque specification
