Right Flange Shaft, Removing and Installing

Right flange shaft, removing and installing - 01J, Continuously Variable Transmission (CVT)

Special tools, testers and auxiliary items required
^ Oil receptacle

Removing
^ Transmission installed.

- Remove right front wheel.





- On vehicles equipped with auxiliary heater, remove bolts -arrows- for exhaust pipe of auxiliary/additional heater to noise insulation.





- Remove bolts or quick-release screws - 1 to 3 - and remove noise insulation at front and rear.





- Where installed, remove bolt -1- for noise insulation cover over right drive axle.

- Disengage hook -2- and remove noise insulation cover.

- Remove heat shield for right drive axle.

- Remove right drive axle.





- Remove mounting bracket for flange shaft -arrows-.

- Place an oil receptacle underneath transmission.

- Pull out right flange shaft together with mounting bracket.

Installing
- Clean flange shaft.

- A damaged sealing ring must be replaced.





- Replace O-ring -arrow A- in mounting bracket for flange shaft.

- Slide spring -C- with cap outward into hole on end of flange shaft -arrow-.

- Insert flange shaft -B- into transmission housing.

Note:
^ While sliding in the flange shaft, make sure that spring -C- remains in the flange shaft and does not fall into transmission.





- Tightly bolt mounting bracket for flange shaft -arrows-.

- Install right drive axle.

- Check gear oil level in front final drive.

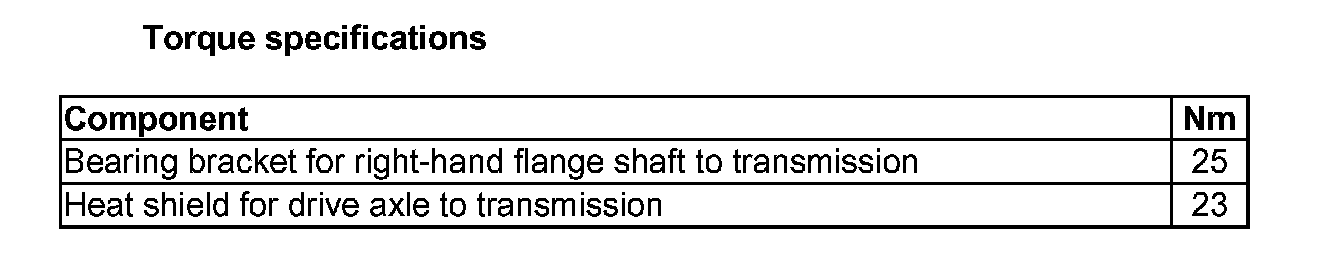

Torque Specifications:
