Pedal Cluster, Assembly Overview

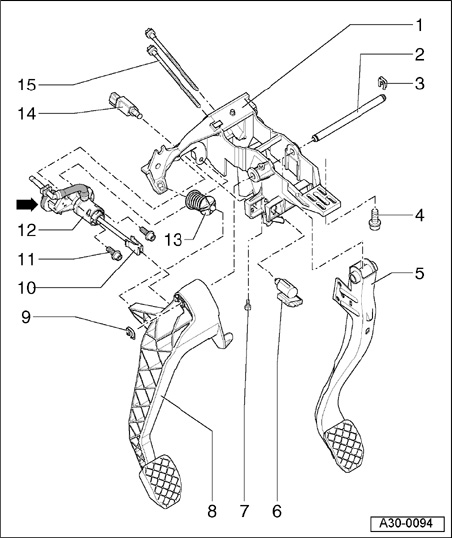

Pedal cluster - LHD vehicles, assembly overview, 01X, 6-Speed Front-wheel Drive M/T





1 - Mounting bracket

2 - Pivot pin for clutch and brake pedal

3 - Retaining clip

4 - Hex socket head bolt - 25 Nm

5 - Brake pedal
^ Maintenance-free bearing, do not grease

6 - Clutch pedal switch F 36
^ Only installed one time
^ Replace

7 - Hex socket head bolt - 5 Nm
^ Secures clutch and brake pedal pivot pin

8 - Clutch pedal

9 - Retaining clip

10 - Retaining clip

11 - Hex socket head bolt - 20 Nm

12 - Master cylinder
^ Gasket - arrow - must not be removed

13 - Over-center spring
^ Black side points toward clutch pedal

14 - Clutch pedal starter interlock switch F194
^ Only for USA
^ Engine can only be started when clutch is fully depressed (clutch pedal starter interlock switch activated).
^ Removing and installing
^ Replace
^ Only install one time

15 - Torx bolt, 25 Nm
^ For securing brake master cylinder/brake servo to mounting bracket
